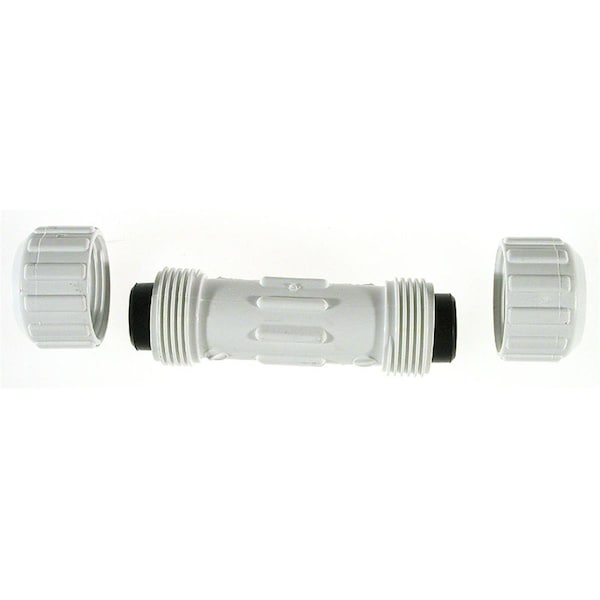

Bk Products 160-105 pvc 1-in comp x 1-in comp compression coupling

Product Description

The BK PRODUCTS 160-105 1-in PVC Compression Coupling is useful when modifying or repairing existing pipe systems and joins piping together on new installations. It fits Schedule 40 iron or PVC pipe and is corrosion-free above or below ground, making it ideal for connecting pipes of dissimilar metals. Rated up to 150 PSI at 73°F.

• Couplings fit Schedule 40 iron or PVC pipe
• Corrosion free when either above or below ground, ideal connecting pipe of dissimilar metals.
• Easy installation

Product Highlights

This PVC compression coupling features easy installation and is suitable for both Schedule 40 and Schedule 80 pipes.

Product Information

Standard Information

• Brand: BK PRODUCTS
• Manufacturer Part Number: 160-105
• Country of Origin: China

Technical Specifications

• Inlet Diameter (in): 1
• Inlet Connection: COMP
• Outlet Diameter (in): 1
• Outlet Connection: COMP
• Product Length (in): 6.10
• Product Height (in): 2.48
• Product Width (in): 2.48
• Working Pressure (PSI): 150
• Maximum Pressure (PSI): 150
• Minimum Temperature (°F): 32
• Working Temperature (°F): 73
• Maximum Temperature (°F): 113
• Product Type: Compression Couplings
• Product Material: PVC
• Standards: NSF/ANSI 14,NSF/ANSI 61,NSF/ANSI 372
• MFR #: 160-105
• UPC #: 32888601055
• Country of Origin: China
• MPN: 160-105
• Schedule Rating: SCH 40
• Nominal Size: 1 in
• Material: PVC
• Pressure Rating: 150 psi
• Thread Type: IPS
• Category: Industrial Automation & Motion ControlsMechanical Power TransmissionMechanical Couplings & U-JointsOther Mechanical Couplings
• Brand: B&K
