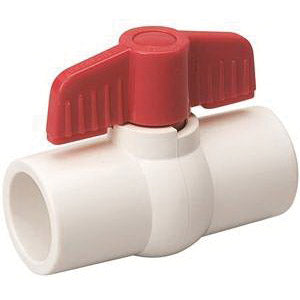

Bk Products 107-124 CPVC SOLVENT Ball Valve, 3/4-In replacement mpn

Product Description

The BK PRODUCTS 107-124 ProLine Series Ball Valve is designed for use with hot and cold water. Features CPVC construction and is compatible with CPVC tubing-sized pipes (pipes not included). The valve has a maximum working pressure of 100 PSI at 180°F and is not meant for use with compressed air.

• CPVC construction
• Valve not intended to throttle the flow of water, use only in a fully opened or fully closed position
• EPDM O-Rings and Teflon Seats

Product Highlights

This ball valve offers quarter-turn operation for easy on/off control and solvent ends that comply with ASTM D2846. Large ports ensure maximum flow rates.

Product Information

Standard Information

• Brand: BK PRODUCTS
• Manufacturer Part Number: 107-124

Technical Specifications

• Construction: CPVC construction
• Pressure: 100 PSI at 180°F
• O-Rings and Seats: EPDM O-Rings and Teflon Seats
• Operation: Quarter-turn operation
• Ends: Solvent ends comply with ASTM D2846
• Type: Ball Valve
• Connection Size: 3/4 in
• Connection Type: Slip
• Port Type: Full
• Number of Ports/Ways: 2-Way
• Pressure Rating: 100 PSI
• Schedule Rating: SCH 40
• Actuator Type: Quarter-Turn
• Temperature Rating: 180°F
• Media: Water
• Softgoods Material: EPDM/PTFE
• Body Material: CPVC
