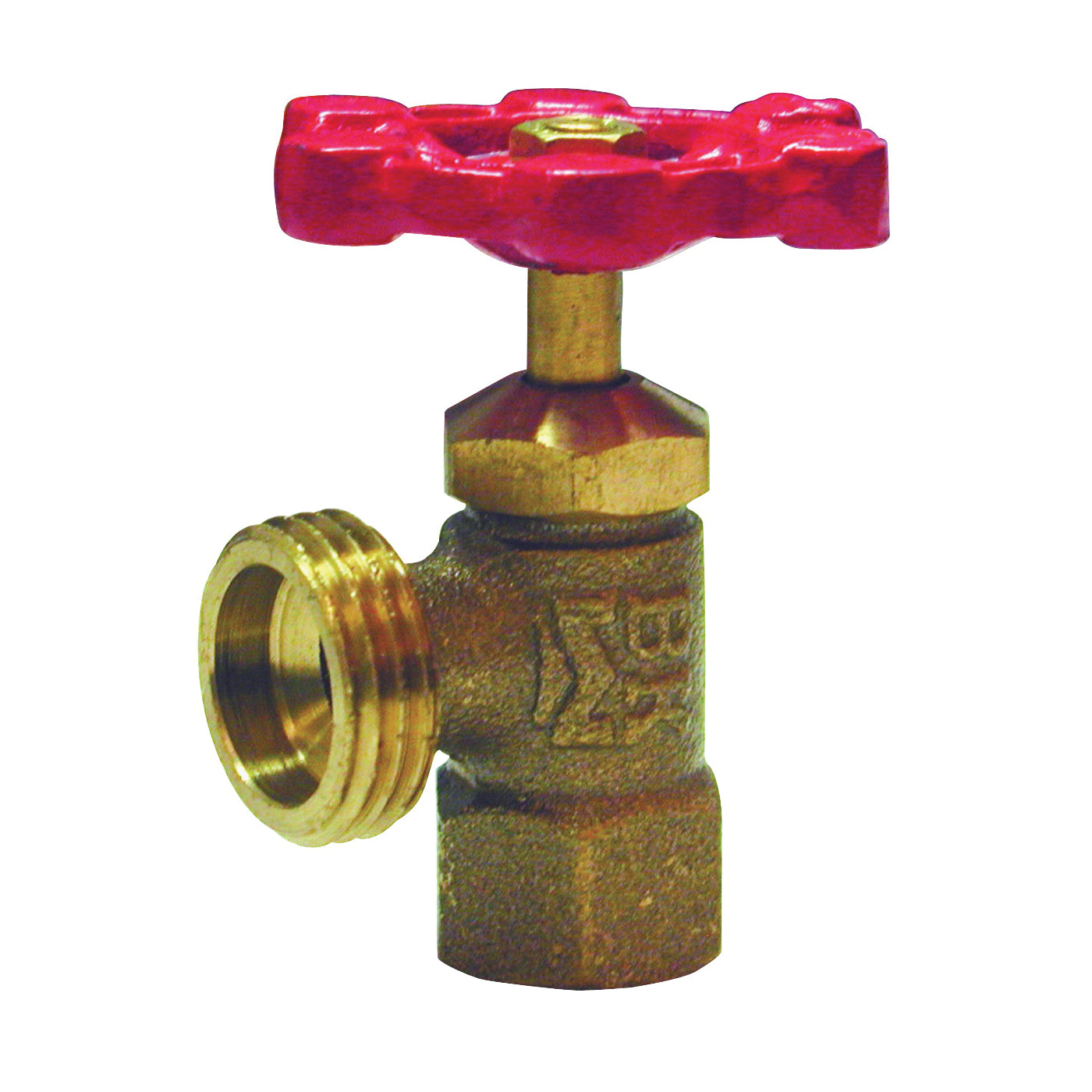

Bk Products 102-103 ProLine Series Boiler Drain Valve 1/2 in Connection FPT x Hose 125 psi Pressure

Product Description

The BK PRODUCTS 102-103 ProLine Series Boiler Drain Valve is designed to meet ANSI B2.1 and ANSI B2.4 standards. Constructed with a brass body and iron trim, it is suitable for non-potable water applications. It controls water flow and prevents backflow in various systems. Maximum working pressure of 125 PSI.

• Durable brass construction provides corrosion resistance.
• Spring loaded mechanism ensures efficient and automatic operation.
• Meets ANSI B2.1 and ANSI B2.4 standards.

Product Highlights

This boiler drain valve features a 1/2 inch FPT connection and is ideal for releasing sediment from boiler drains.

Product Information

Standard Information

• Brand: BK PRODUCTS
• Manufacturer Part Number: 102-103
• Country of Origin: United States

Technical Specifications

• Connection Size: 1/2
• Connection Type: FPT x Hose
• Pressure Rating: 125 psi
• Temperature Rating: -20 to 180 deg F
• Body Material: Brass
• Trim Material: Iron
• Inlet Diameter (in): 1/2
• Inlet Connection: FIP
• Outlet Diameter (in): 3/4
• Outlet Connection: MHT
• Product Length (in): 3.00
• Product Height (in): 2.13
• Product Width (in): 2.25
• Working Pressure (PSI): 125
• Maximum Pressure (PSI): 125
• Minimum Temperature (ºF): 35
• Working Temperature (ºF): 180
• Maximum Temperature (ºF): 180
• Prop65 ID: Lead and Lead Compounds
• Brand: ProLine Series
• Product Type: Boiler Drains
• Product Material: Brass
• Standards: ASME A112.18.1/CSA B125.1
• Manufacturer Part Number: VBDSTDB3
• Manufacturer: Proline
• Model: Homewerks
• Type: Boiler Drain
• Material: Brass
• Country of Origin: United States
