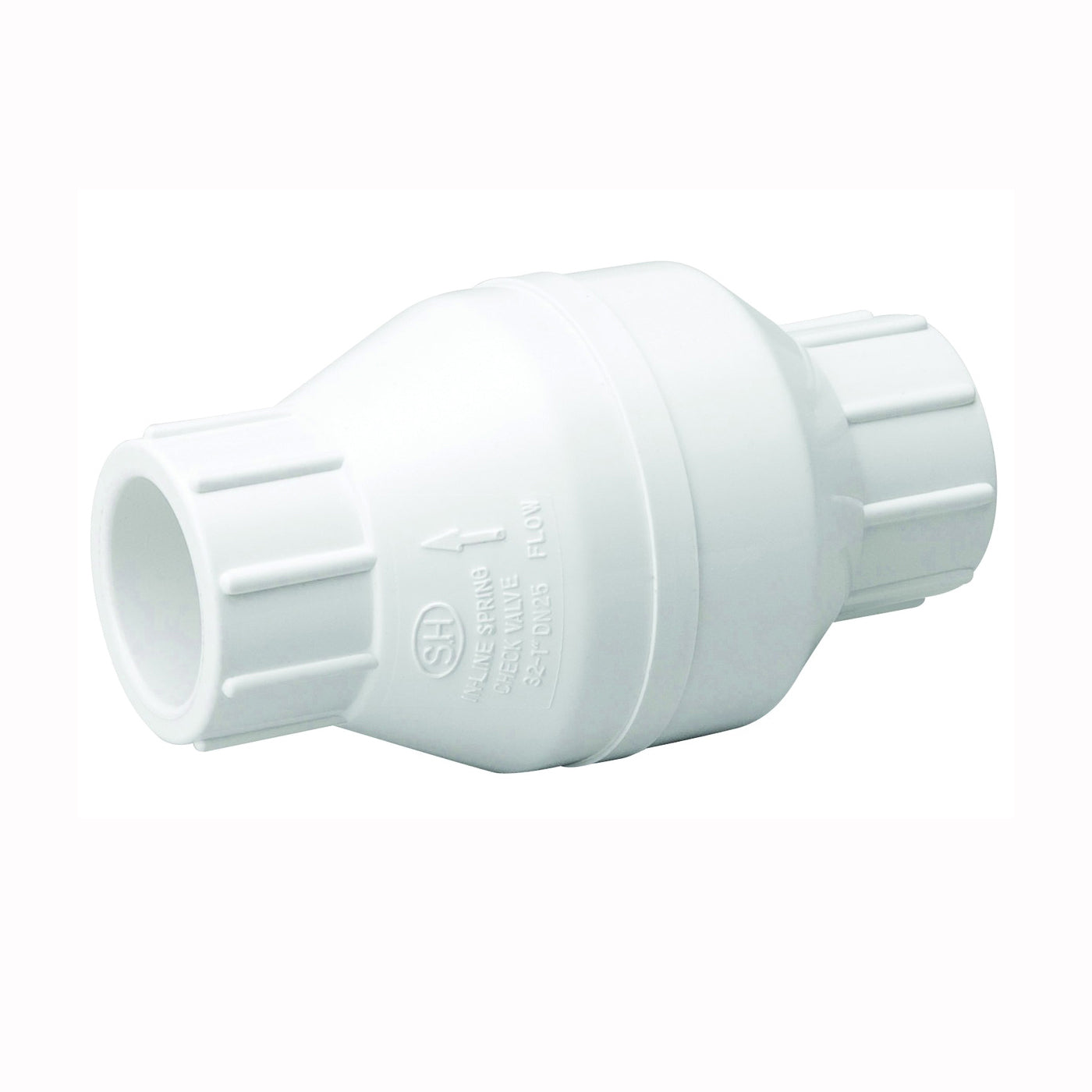

Bk Products 101-605 PVC 1-in SOLV x 1-in SOLV In-Line Check Valve

Product Description

The ProLine Series PVC Check Valve, MPN 101-605, permits water to flow in one direction within a line and acts as a backflow prevention device. It features a steel-spring poppet with a rubber o-ring and is rated for 200 PSI at 73°F. Designed for solvent weld connections, it fits both Schedule 40 and Schedule 80 PVC pipe.

• Permits water to flow in one direction within a line
• Acts as a backflow prevention device
• Steel-spring poppet with a rubber o-ring
• Fits both Schedule 40 and Schedule 80 PVC pipe

Product Highlights

Prevents water backflow with a stainless steel spring for corrosion resistance and a water-tight O-ring seal. Complies with ASTM D2846 solvent ends.

Product Information

Standard Information

• Brand: BK PRODUCTS
• Manufacturer Part Number: 101-605
• Country of Origin: United States

Technical Specifications

• Inlet Diameter (in): 1
• Inlet Connection: SOLV
• Outlet Diameter (in): 1
• Outlet Connection: SOLV
• Product Length (in): 5.71
• Product Height (in): 2.30
• Product Width (in): 2.30
• Minimum Pressure (PSI): 10
• Working Pressure (PSI): 150
• Maximum Pressure (PSI): 200
• Minimum Temperature (ºF): 32
• Working Temperature (ºF): 73
• Maximum Temperature (ºF): 113
• Brand: ProLine Series
• Product Type: Check Valves
• Product Material: PVC
• Standards: NSF/ANSI 61,NSF/ANSI 372
• Nominal Size: 1
• Connection Type: IPS
• Trim Material: Stainless Steel
• Body Material: PVC
• Softgoods Material: Neoprene
• Pressure Rating: 200
• Temperature Rating: 73
• Suitable for: Both SCH 40 and 80 Pipe
• MPN: 101-605
• UPC: Does not apply
• Country of Origin: United States
