Bk Llc 108-553HN Brass Quarter Turn Flanged Sillcock

Product Description

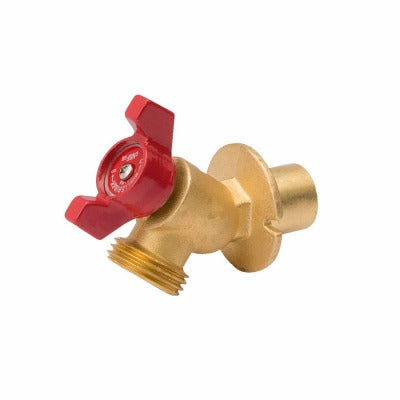

The BK LLC 108-553HN is a brass quarter-turn flanged sillcock designed for residential and light commercial outdoor water supply applications. The sillcock features a chrome-plated brass ball and a patented body and handle assembly that allows full open or full close operation with a single 90-degree turn. It is low-lead compliant and rated for a maximum working pressure of 125 psi. The 1/2 inch inlet connects to standard supply lines, and the hose outlet accepts any standard 3/4 inch garden hose or washing machine hose fitting. Licensed plumbers install this fitting as part of exterior wall rough-in or hose bib replacement work.

This sillcock is suited for exterior wall installations in residential homes and light commercial buildings. It is commonly installed through a rim joist or exterior wall where a flanged face plate is needed for a clean finished appearance. The quarter-turn ball design simplifies seasonal shutoff and reduces maintenance compared to traditional compression-style sillcocks. The 3/4 inch hose thread outlet makes it compatible with standard garden hoses and washing machine supply connections without adapters.

Key Features

• Quarter-turn operation for fast open and close with a single 90-degree handle movement
• Chrome-plated brass ball for corrosion resistance and long service life
• Low-lead compliant construction suitable for potable water systems
• Flanged body design provides a finished appearance at exterior wall penetrations
• 125 psi maximum working pressure
• Accepts standard 3/4 inch garden hose and washing machine hose connections

Compatibility

Designed as an OEM-style replacement or new-installation sillcock for residential and light commercial exterior plumbing applications with 1/2 inch supply lines and standard 3/4 inch hose thread outlets.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the IPC. Shut off the main water supply and depressurize the line before removing an existing sillcock or making supply connections. Support the pipe adequately to avoid stress on the fitting body during soldering or threading. Seal all threaded connections with appropriate thread sealant or PTFE tape rated for potable water use.

Technical Specifications

• Inlet Size: 1/2 inch
• Outlet Connection: 3/4 inch hose thread
• Maximum Working Pressure: 125 psi
• Material: Brass with chrome-plated ball
• Lead Compliance: Low-lead compliant
• Weight: 7.05 pounds
• Package Quantity: 15 per package

Standard Information

• Brand: BK LLC
• Manufacturer Part Number: 108-553HN
