Bk 521-942BG Black Iron Hex Bushing 3/4 X 3/8 Inch

Product Description

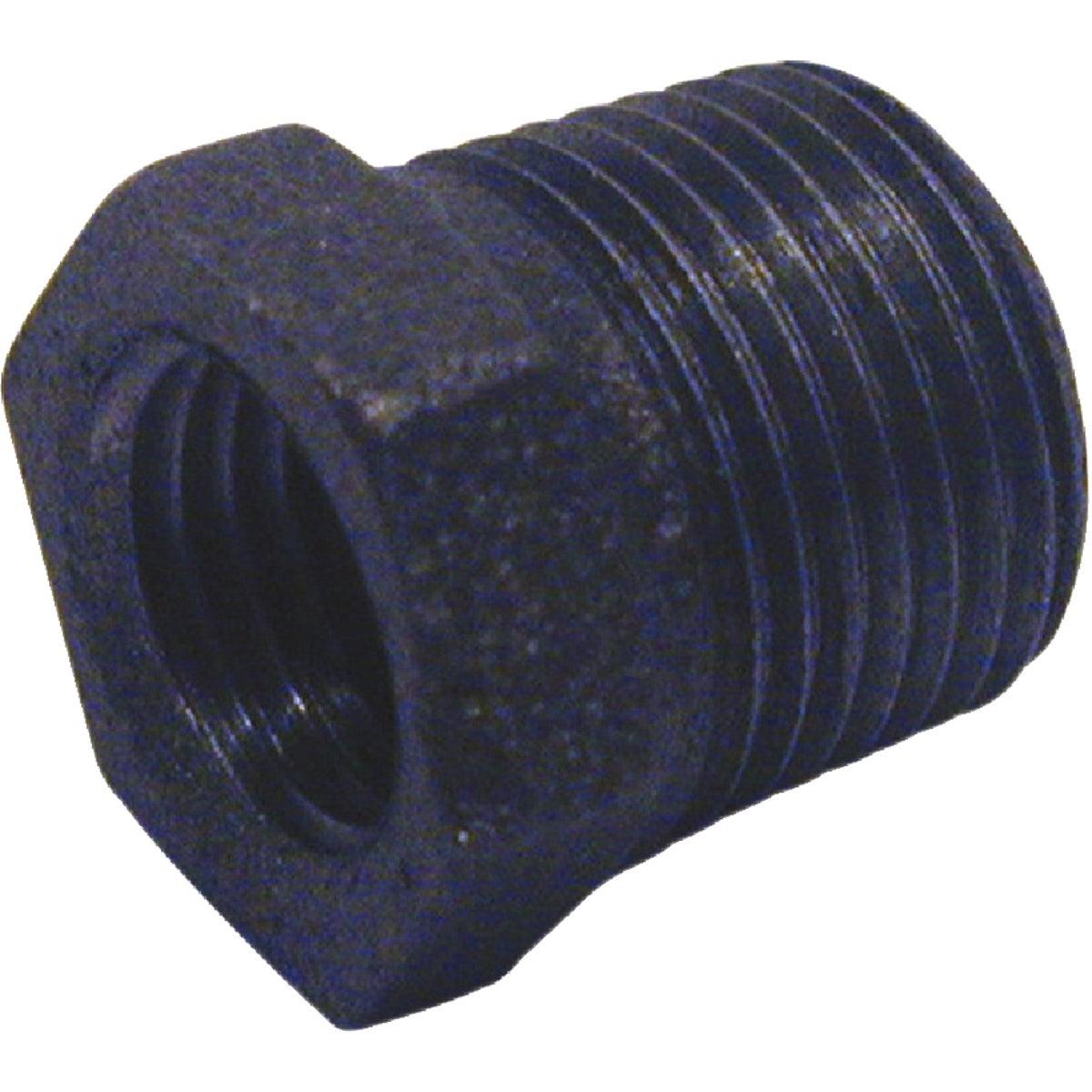

The BK 521-942BG is a black malleable iron hex bushing designed to reduce a 3/4 inch male NPT pipe thread down to a 3/8 inch female NPT thread. This type of reducing bushing is a standard component in black iron gas piping systems and is used by licensed plumbers, gas fitters, and HVAC technicians when transitioning between pipe sizes in a run. Weighing 0.144 pounds, the fitting is compact and individually flag tagged for easy identification at the job site. The Mueller logo is cast directly into the body of each fitting, and every unit is 100 percent inspected and quality tested before leaving the factory.

This bushing is suited for residential and light commercial gas distribution piping, as well as other black iron pipe applications where a threaded reduction from 3/4 inch to 3/8 inch is required. It is sold individually and is appropriate for use in new construction and retrofit installations where pipe size transitions are needed within a supply line, manifold, or appliance connection assembly.

Key Features

• 3/4 inch male NPT x 3/8 inch female NPT hex bushing configuration
• Black malleable iron construction meets ANSI/ASTM A-197 material standard
• Dimensions conform to ANSI/ASME B16.15, B16.14, and B16.39
• Threads cut to ANSI B1.20.1 NPT specification
• Mueller logo cast into body; 100 percent inspected and quality tested
• Individually flag tagged for job site identification

Compatibility

Designed as an OEM-style replacement or new-installation fitting for standard black iron NPT pipe systems requiring a 3/4 inch to 3/8 inch threaded reduction.

Installation Notes

Installation should be performed by a licensed plumber or gas fitter in accordance with applicable local codes and IFGC requirements. Shut off the gas supply and verify zero pressure at the work point before threading the bushing into the fitting or appliance connection. Apply an approved pipe thread sealant or PTFE tape rated for gas service to the male threads before assembly. Hand-tighten first, then use a pipe wrench to bring the fitting to proper engagement without over-stressing the threads.

Technical Specifications

• Material: Black malleable iron, ANSI/ASTM A-197
• Connection Type: 3/4 inch male NPT x 3/8 inch female NPT
• Dimension Standard: ANSI/ASME B16.15, B16.14, B16.39
• Thread Standard: ANSI B1.20.1
• Weight: 0.144 pounds
• Sold As: Each

Standard Information

• Brand: BK
• Manufacturer Part Number: 521-942BG
