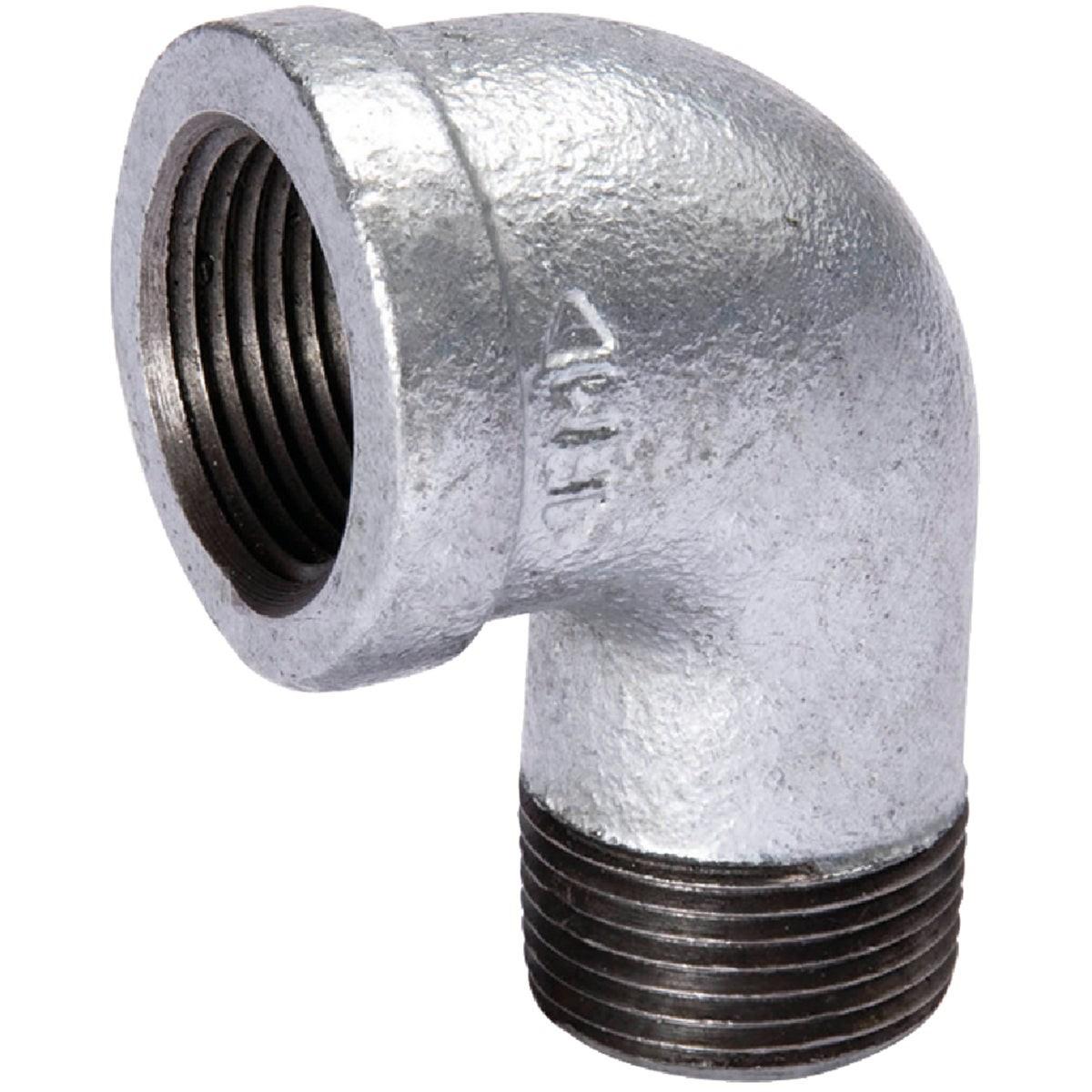

Bk 510-303BG 1/2 in 90 Deg Street Galvanized Elbow

Product Description

The BK 510-303BG is a 1/2 inch 90-degree street galvanized malleable iron elbow, also referred to as a 1/4 bend. This fitting is used to change pipe direction at a 90-degree angle in threaded piping systems. One end is male-threaded (the street end) and one end is female-threaded, allowing direct connection without an additional nipple. Constructed from galvanized malleable iron per ANSI/ASTM A-197, this fitting meets dimensional standards ANSI/ASME B16.3, B16.14, and B16.39, with threads conforming to ANSI B1.20.1. Each fitting is individually flag tagged and 100 percent inspected at the factory. Licensed plumbers and pipefitters are the primary installers.

This elbow is suited for residential and light commercial plumbing, gas distribution, and general mechanical piping applications where galvanized threaded fittings are required. The 90-degree street configuration is commonly used in tight spaces where a standard elbow and separate nipple would not fit. The galvanized finish provides corrosion resistance appropriate for water supply and vented gas piping systems. This is an import fitting with the Mueller logo cast into the body.

Key Features

• Galvanized malleable iron construction per ANSI/ASTM A-197
• 90-degree street elbow with one male and one female NPT threaded end
• Threads conform to ANSI B1.20.1 for reliable sealing
• Dimensions meet ANSI/ASME B16.3, B16.14, and B16.39
• Each fitting individually flag tagged and 100 percent inspected
• Mueller logo cast into fitting body for product identification

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1/2 inch NPT threaded piping systems using standard galvanized malleable iron fittings.

Installation Notes

Installation is performed by licensed plumbers or pipefitters following applicable local plumbing codes and IFGC requirements where gas service applies. Shut off the water supply or gas service before beginning work on any threaded fitting. Apply an approved thread sealant or PTFE tape to the male threads before assembly. Do not over-tighten malleable iron fittings, as this can crack the casting.

Technical Specifications

• Material: Galvanized Malleable Iron
• Material Standard: ANSI/ASTM A-197
• Pipe Size: 1/2 inch
• Angle: 90 degrees
• End Type: Street (Male x Female NPT)
• Thread Standard: ANSI B1.20.1
• Dimensional Standards: ANSI/ASME B16.3, B16.14, B16.39
• Weight: 0.247 pounds
• Sold As: Each

Standard Information

• Brand: BK
• Manufacturer Part Number: 510-303BG
