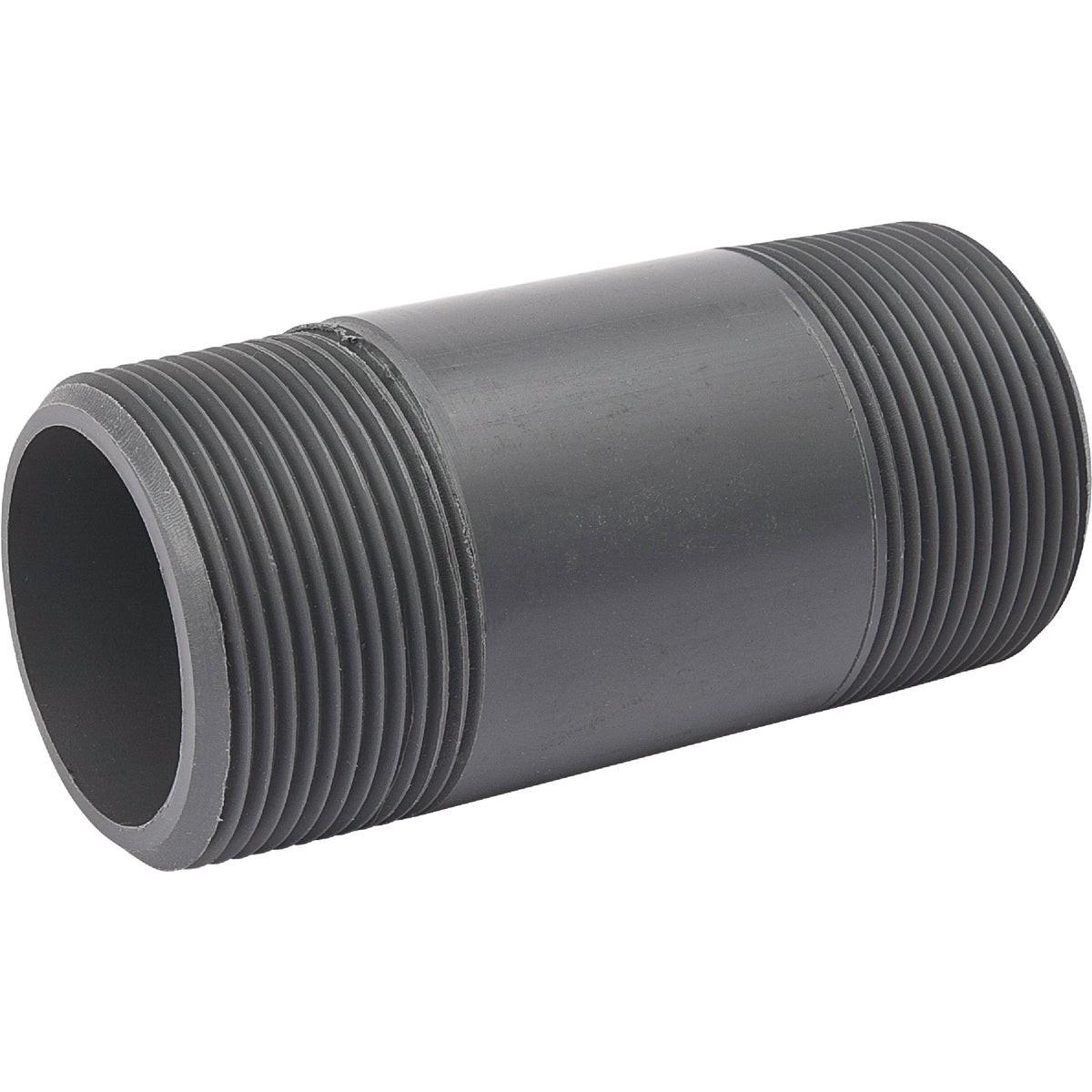

Bk 507-030 Schedule 80 Pvc Nipple 1-1/2 X 3 in

Product Description

The BK 507-030 is a Schedule 80 PVC nipple measuring 1-1/2 inches in diameter by 3 inches in length, used for connecting threaded pipe sections in plumbing and fluid transport systems. Threaded to NPT (National Pipe Thread) standards and sized to IPS (iron pipe size) specifications, it meets ASTM D1785 requirements for rigid PVC pressure-rated fittings. The Schedule 80 wall thickness provides greater pressure tolerance than Schedule 40, making it suitable for demanding liquid transport applications. Plumbers and pipefitters install this nipple wherever a short threaded extension or close connection is needed between fittings, valves, or equipment in PVC piping systems.

This nipple is designed for a wide range of residential and commercial plumbing applications involving water and compatible liquids. It is commonly used at equipment connections, valve installations, and pipe extensions where a short-run threaded PVC fitting is required. The NPT threading ensures compatibility with standard threaded fittings throughout a system. Pipe thread compound or PTFE sealing tape should be applied to the threaded portion prior to assembly to ensure a leak-free joint.

Key Features

• Schedule 80 PVC construction provides increased wall thickness and pressure rating compared to Schedule 40
• NPT threads conform to National Pipe Thread standards for consistent fitment with standard threaded fittings
• IPS sizing ensures dimensional compatibility across standard plumbing pipe and fittings
• Meets ASTM D1785 specifications for rigid PVC pressure pipe and fittings
• Suitable for water and a broad range of compatible liquid transport applications

Compatibility

Designed as an OEM-style replacement and standard-use fitting for Schedule 80 PVC threaded piping systems using NPT connections and IPS sizing per ASTM D1785.

Installation Notes

Installation is performed by licensed plumbers or qualified pipefitters working on PVC pressure piping systems. Shut off and depressurize the piping system completely before beginning any threaded connection work. Apply pipe thread compound or PTFE sealing tape to the male threads before making up the joint — do not over-tighten PVC threaded fittings, as PVC is subject to cracking under excessive torque. Local plumbing codes based on the IPC should be consulted for approved applications and pressure ratings.

Technical Specifications

• Pipe Size: 1-1/2 inches
• Length: 3 inches
• Schedule: Schedule 80
• Material: PVC
• Thread Standard: NPT (National Pipe Thread)
• Pipe Sizing Standard: IPS (Iron Pipe Size)
• ASTM Standard: D1785
• Weight: 0.154 pounds
• UOM: Each

Standard Information

• Brand: BK
• Manufacturer Part Number: 507-030
