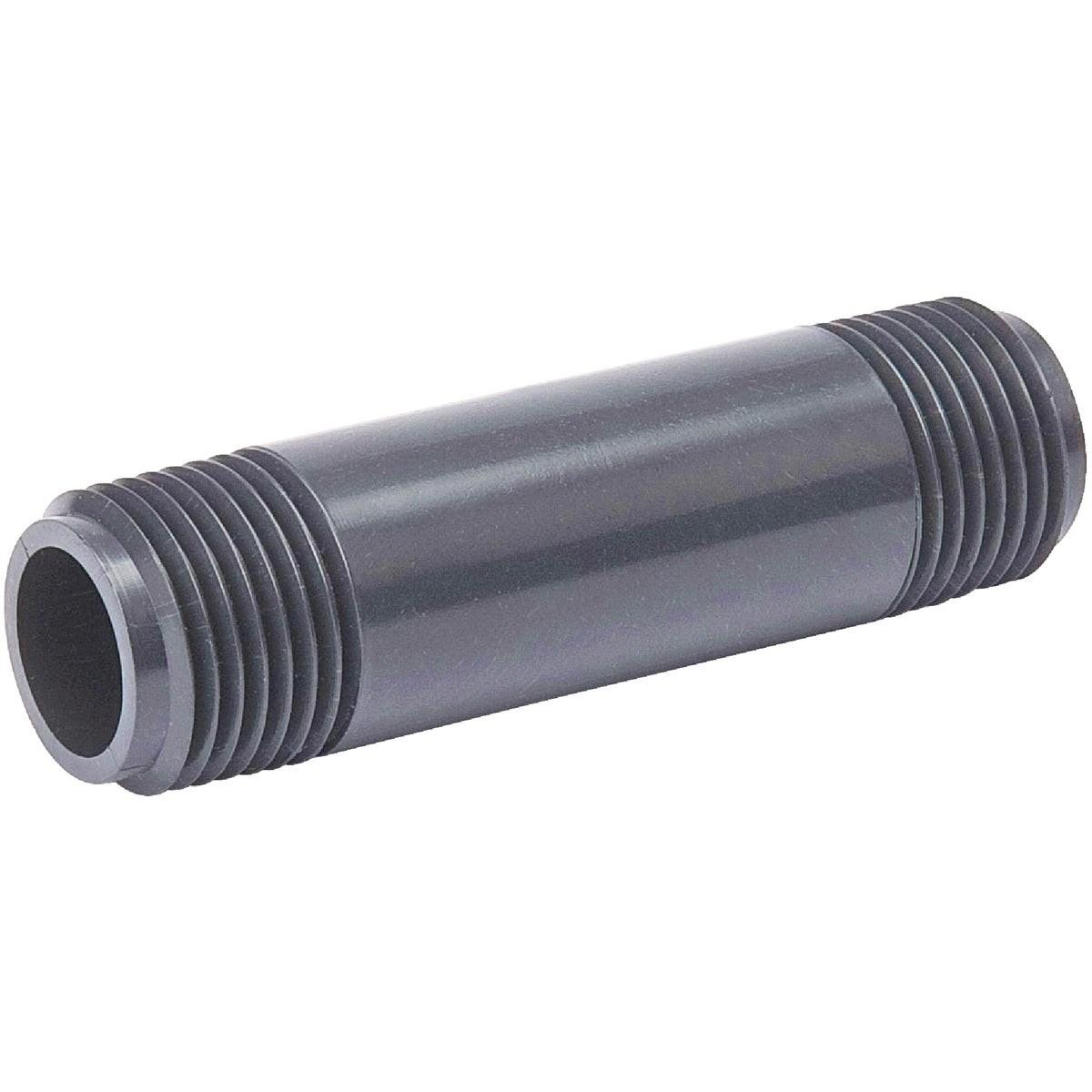

Bk 506-060 Schedule 80 Pvc Nipple 1-1/4 X 6 in Npt

Product Description

The BK 506-060 is a Schedule 80 PVC threaded nipple rated for transport of water and a range of compatible liquids in pressure-rated piping systems. Manufactured to ASTM D1785 specifications, it measures 1-1/4 inches in diameter and 6 inches in length. The nipple is sized to IPS (iron pipe size) standards and threaded to NPT (National Pipe Thread) specifications on both ends. Pipe thread compound or thread seal tape must be applied to the threaded portions prior to installation. At 0.262 pounds, this fitting is suited for plumbing, irrigation, and industrial piping applications handled by licensed plumbers and pipefitters.

This nipple is appropriate for use in residential and light commercial piping systems where Schedule 80 PVC pressure ratings are required. Common applications include potable and non-potable water lines, irrigation headers, chemical transfer lines compatible with PVC, and industrial process piping. The Schedule 80 wall thickness provides additional pressure tolerance compared to Schedule 40, making it a practical choice in systems with elevated working pressures or where additional mechanical strength is needed at threaded connections.

Key Features

• Manufactured to ASTM D1785 specifications for Schedule 80 PVC pipe fittings
• IPS sizing with NPT threads on both ends for standard pipe system compatibility
• Schedule 80 wall thickness for increased pressure rating versus Schedule 40
• 1-1/4 inch nominal diameter x 6 inch length for close or short-run connections
• Compatible with pipe thread compound or PTFE thread seal tape for leak-free joints

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 80 PVC threaded piping systems using 1-1/4 inch IPS NPT connections.

Installation Notes

Installation should be performed by a licensed plumber following applicable IPC guidelines. Shut off system pressure and depressurize the line before removing or installing any threaded fitting. Apply pipe thread compound or PTFE tape to the male threads before making up the joint — never over-torque PVC threaded fittings, as PVC is susceptible to stress cracking at the threads. Inspect threads for damage before installation and do not use with fluids or solvents incompatible with PVC.

Technical Specifications

• Material: PVC
• Schedule: Schedule 80
• Nominal Diameter: 1-1/4 inches
• Length: 6 inches
• Thread Standard: NPT (National Pipe Thread)
• Pipe Sizing Standard: IPS (Iron Pipe Size)
• ASTM Standard: D1785
• Weight: 0.262 pounds
• Sold As: Each

Standard Information

• Brand: BK
• Manufacturer Part Number: 506-060
