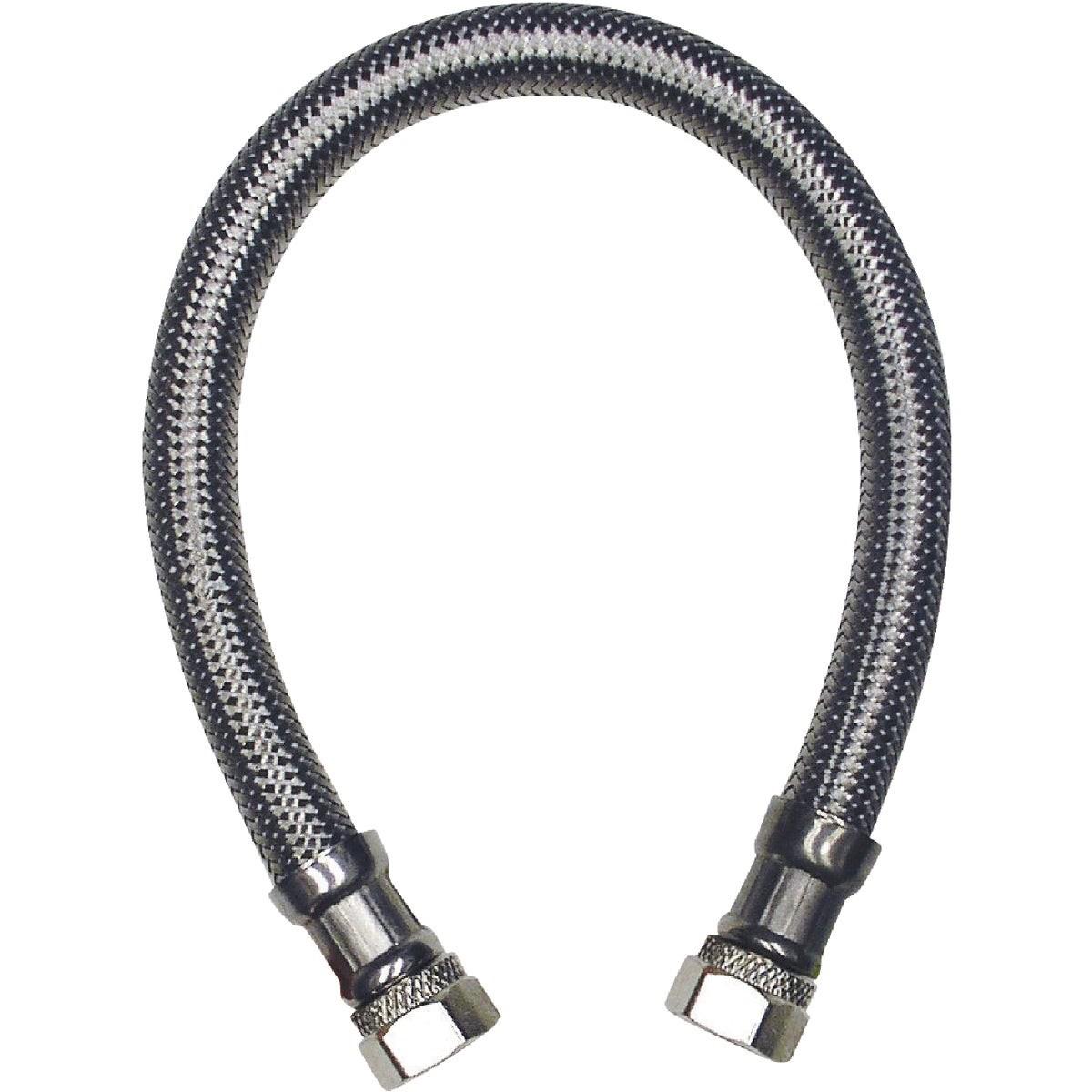

Bk 496-243 Stainless Steel Faucet Connector 20 in

Product Description

The BK 496-243 is a braided stainless steel faucet connector designed for water supply connections to plumbing fixtures. The core is virgin PVC reinforced with polyester yarn braiding, then over-braided with 304 stainless steel for added strength. Chrome-plated brass hex nuts and washers provide a dependable hand-tight seal at both ends. Rated to a maximum temperature of 180 degrees F and a maximum working pressure of 125 psi, this connector suits demanding residential, commercial, and industrial water supply installations. Plumbers and plumbing contractors install this connector as a supply line between shutoff valves and faucets or fixtures.

This connector is suited for use in residential, commercial, and industrial applications where a reliable, flexible water supply line is needed. The 3/8 inch compression inlet and 3/8 inch compression outlet configuration fits standard supply valve and fixture stub-out sizes commonly found in kitchens, bathrooms, and utility installations. At 20 inches in length, it accommodates typical under-sink and vanity rough-in dimensions without modification.

Key Features

• 304 stainless steel outer braid over polyester yarn and virgin PVC core for strength and corrosion resistance
• Chrome-plated brass hex nuts and washers for a hand-tight, leak-resistant seal
• Maximum working pressure of 125 psi
• Maximum temperature rating of 180 degrees F
• 3/8 inch compression x 3/8 inch compression end connections, 20 inches in length
• IAPMO listed for residential, commercial, and industrial water supply applications

Compatibility

Approved for residential, commercial, and industrial water supply connections to plumbing fixtures. Suitable for use wherever a 3/8 inch compression x 3/8 inch compression flexible supply connector is required.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the IPC. Shut off the water supply and relieve line pressure before removing the existing connector or making new connections. Hand-tighten the brass compression nuts onto the valve and fixture inlet, then snug with a wrench — avoid overtightening, which can crack the brass nut or fitting. Inspect for leaks at both connections after restoring water pressure.

Technical Specifications

• Inlet Connection: 3/8 inches compression
• Outlet Connection: 3/8 inches compression
• Length: 20 inches
• Core Material: Virgin PVC with polyester yarn braiding
• Outer Braid Material: 304 stainless steel
• Nut Material: Chrome-plated brass
• Maximum Pressure: 125 psi
• Maximum Temperature: 180 degrees F
• Weight: 0.269 pounds
• Certification: IAPMO listed

Standard Information

• Brand: BK
• Manufacturer Part Number: 496-243
