Bk 496-237 Water Heater Connector 3/4 In. Mip X Fip 18 In.

Product Description

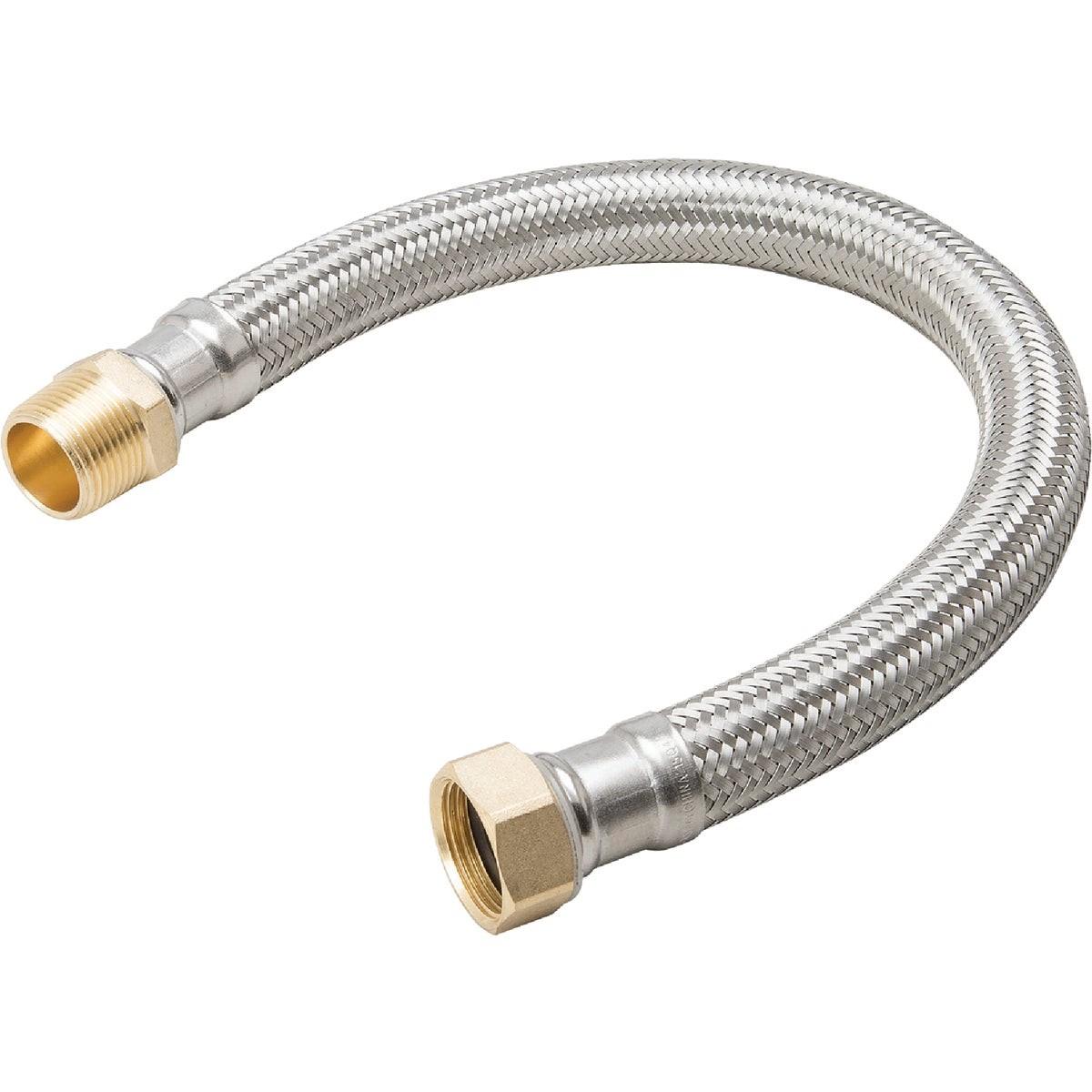

The BK 496-237 is a braided stainless steel water heater connector designed for water supply connections to water heaters and plumbing fixtures. The core is virgin PVC reinforced with polyester yarn braiding, over-braided with Type 304 stainless steel for strength and durability. Chrome-plated brass nuts and washers provide a dependable hand-tight seal. End connections are 3/4 inch MIP on one end and 3/4 inch FIP on the other, with an overall length of 18 inches. Rated to 125 psi maximum working pressure and a maximum temperature of 180 degrees F, this connector is suited for residential, commercial, and industrial plumbing installations.

The 496-237 is used to connect water heaters to supply lines in residential, commercial, and industrial settings. The flexible braided design accommodates minor misalignments between the heater inlet and the supply stub-out, making it a standard connector for both new installations and replacements. Licensed plumbers and water heater installation technicians are the typical installers. Its IAPMO listing confirms it meets recognized plumbing codes for water supply connections.

Key Features

• Type 304 stainless steel over-braid for corrosion resistance and mechanical strength
• Virgin PVC core with polyester yarn reinforcement for flexibility and durability
• Chrome-plated brass hex nuts and washers for a reliable hand-tight seal
• Rated to 125 psi maximum working pressure and 180 degrees F maximum temperature
• 3/4 inch MIP x 3/4 inch FIP end connections, 18 inches in length
• IAPMO listed for residential, commercial, and industrial water supply applications

Compatibility

Approved for residential, commercial, and industrial water supply connections to water heaters and plumbing fixtures with 3/4 inch male and female iron pipe threaded connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IAPMO standards. Shut off the water supply and drain pressure from the line before removing the existing connector or making new connections. Hand-tighten the brass hex nuts and apply a final snug turn with a wrench — do not overtighten, as this can damage the brass fittings or seat. Inspect for leaks at both connections after restoring water pressure.

Technical Specifications

• Inlet Connection: 3/4 inch MIP
• Outlet Connection: 3/4 inch FIP
• Length: 18 inches
• Maximum Working Pressure: 125 psi
• Maximum Temperature: 180 degrees F
• Braid Material: Type 304 stainless steel
• Core Material: Virgin PVC with polyester yarn braiding
• Nut Material: Chrome-plated brass
• Certification: IAPMO listed
• Weight: 0.707 pounds
• Sold As: Each

Standard Information

• Brand: BK
• Manufacturer Part Number: 496-237
