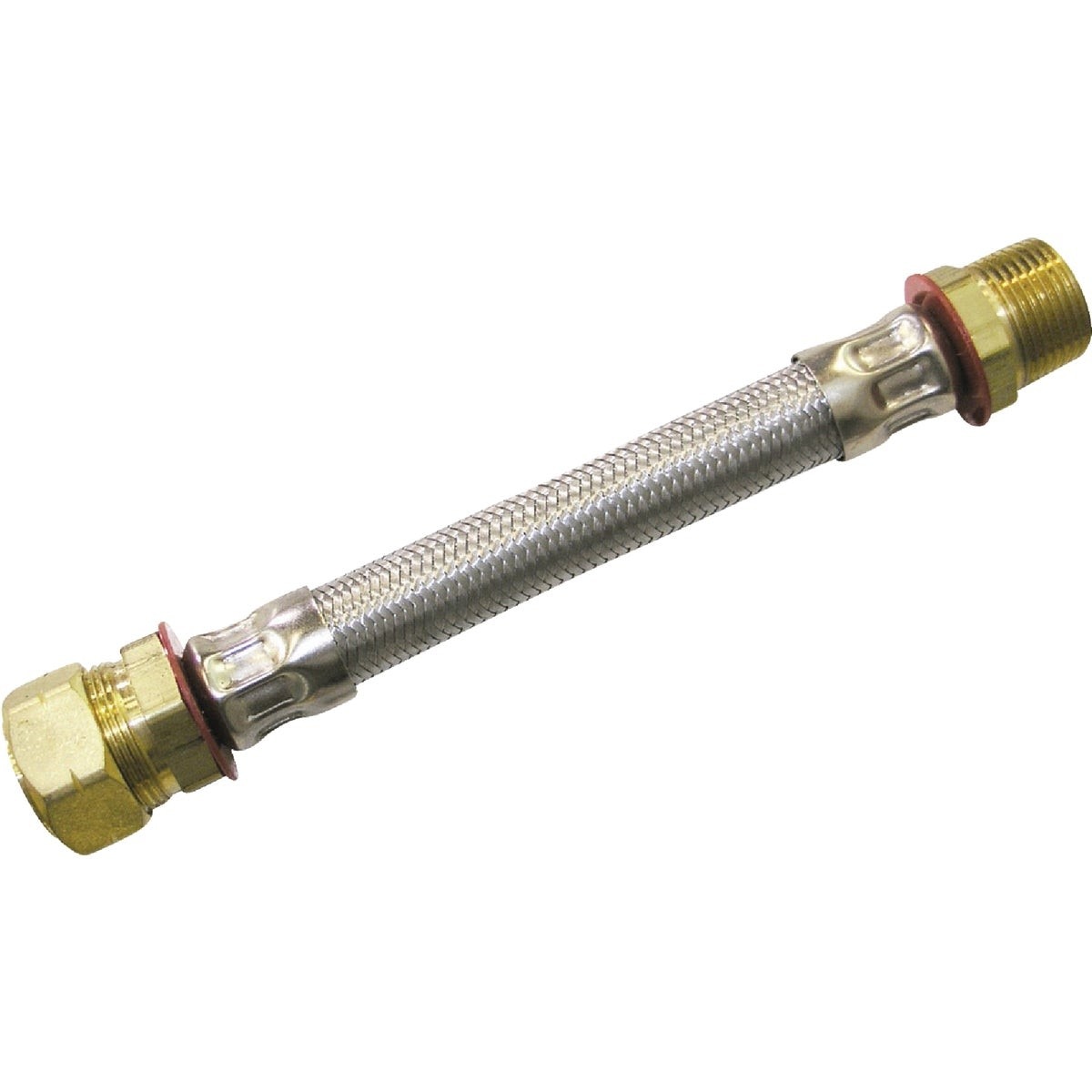

Bk 496-234 Water Heater Connector 3/4 In. Mip 18 In.

Product Description

The BK 496-234 is a braided stainless steel water heater connector designed for water supply connections in residential, commercial, and industrial plumbing installations. The core is constructed from virgin PVC reinforced with polyester yarn braiding, then over-braided with Type 304 stainless steel for strength and long-term durability. Chrome-plated brass hex nuts and washers deliver a dependable hand-tight seal without the need for tools. Rated to a maximum temperature of 180 degrees F and a maximum pressure of 125 psi, this connector is IAPMO listed and suitable for a wide range of water supply applications.

This connector is commonly used when connecting water heaters to supply lines in residential homes, light commercial buildings, and industrial facilities. The 18-inch length provides adequate reach for most standard water heater rough-in configurations. The 3/4-inch MIP inlet and 3/4-inch ID connections match common water heater supply port sizing. Licensed plumbers and mechanical contractors install this type of connector as part of new water heater installations and service replacements.

Key Features

• Type 304 stainless steel over-braid for corrosion resistance and strength
• Virgin PVC core with polyester yarn reinforcement layer
• Chrome-plated brass hex nuts and washers for a hand-tight, leak-resistant seal
• Rated to 180 degrees F maximum temperature and 125 psi maximum pressure
• IAPMO listed for residential, commercial, and industrial water supply use
• 3/4-inch MIP x 3/4-inch ID end connections, 18-inch overall length

Compatibility

Designed as an OEM-style replacement connector for residential, commercial, and industrial water heater supply connections using 3/4-inch MIP and 3/4-inch ID fittings.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC requirements. Shut off the cold water supply and allow the water heater to depressurize before removing or installing any supply connectors. Hand-tighten the brass nuts firmly and check for leaks after restoring water pressure. Do not overtighten with tools, as this can damage the brass nuts or the connector fittings.

Technical Specifications

• Inlet Connection: 3/4 inch MIP
• Outlet Connection: 3/4 inch ID
• Length: 18 inches
• Maximum Temperature: 180 degrees F
• Maximum Pressure: 125 psi
• Core Material: Virgin PVC with polyester yarn braiding
• Outer Braid Material: Type 304 stainless steel
• Nut and Washer Material: Chrome-plated brass
• Weight: 0.8 pounds
• Certification: IAPMO listed

Standard Information

• Brand: BK
• Manufacturer Part Number: 496-234
