Bk 496-218 Water Heater Connector 3/4 Fip X 3/4 Fip 24 in

Product Description

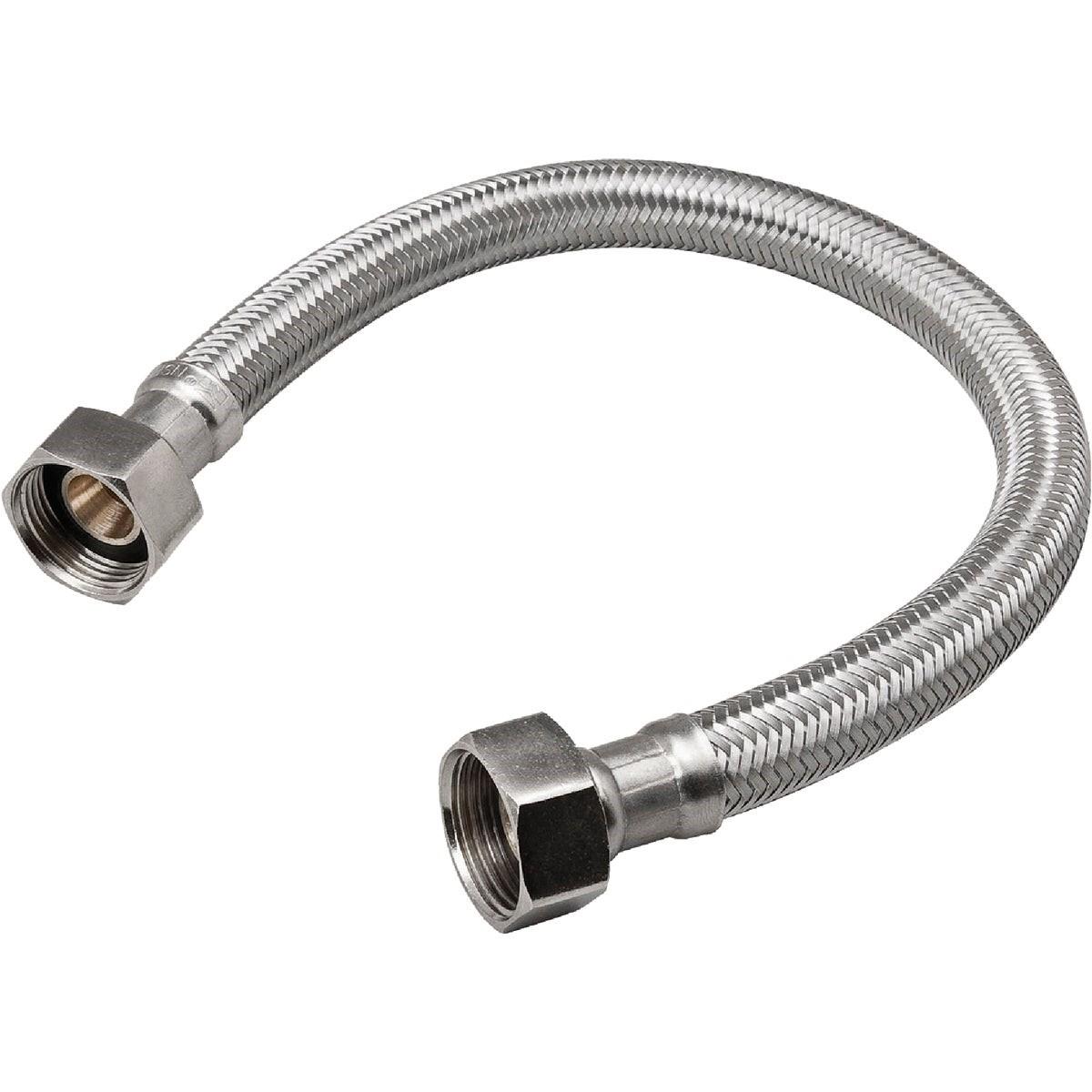

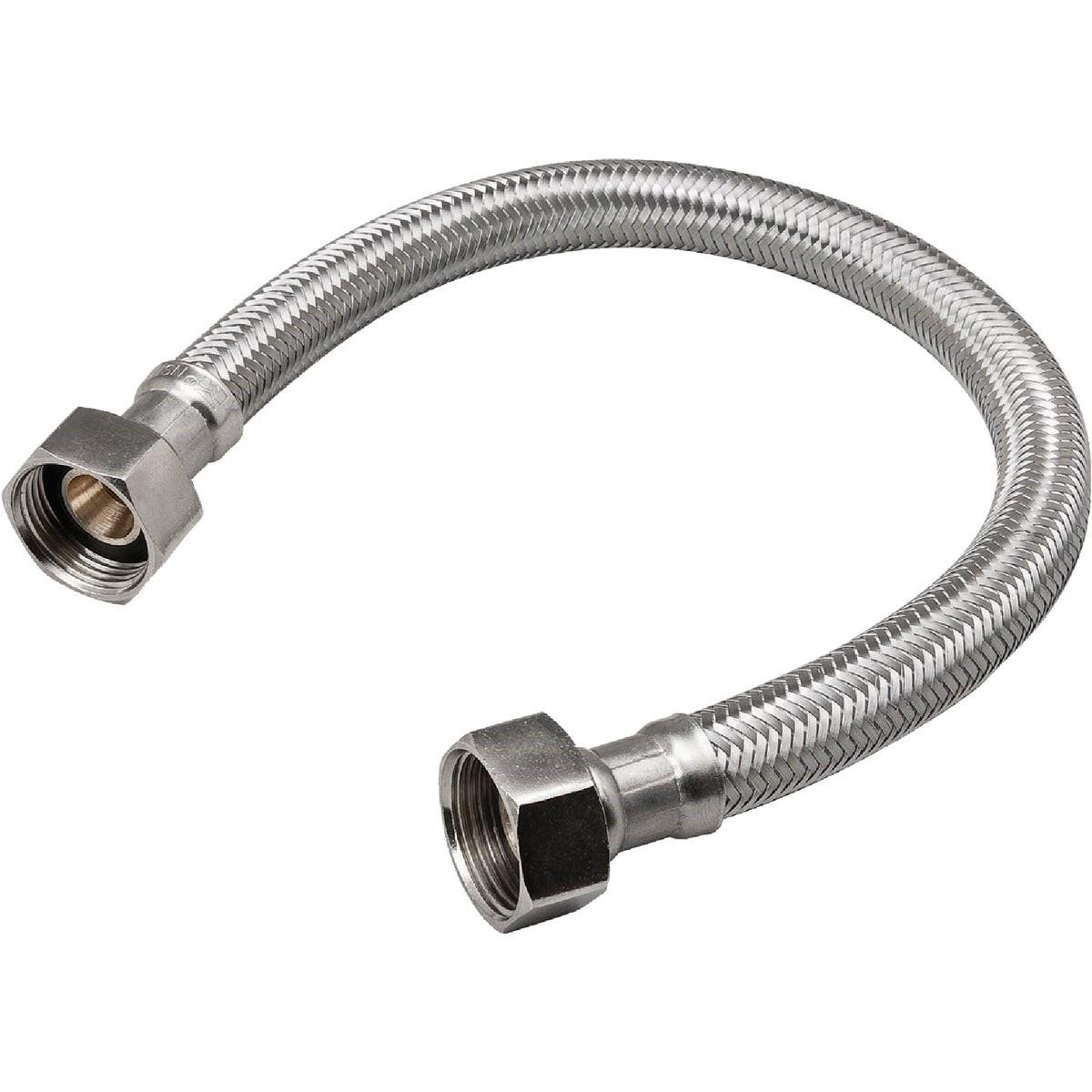

The BK 496-218 is a braided stainless steel water heater connector designed for water supply connections between a water heater and the supply line. It features a 3/4 inch FIP x 3/4 inch FIP configuration and measures 24 inches in length. The core is virgin PVC with polyester yarn braiding, over-braided with Type 304 stainless steel for tensile strength and corrosion resistance. Chrome-plated brass hex nuts and washers provide a dependable hand-tight seal. Rated to 180 degrees F and 125 psi, this connector is suited for residential, commercial, and industrial water supply applications and is typically installed by licensed plumbers.

This connector is appropriate for water heater installations in residential, commercial, and industrial settings where a flexible supply line is required. The 24 inch length accommodates standard offset distances between a water heater inlet and the supply stub-out. The 3/4 inch FIP connections on both ends fit standard water heater inlet and outlet fittings. It is also suitable for general water supply connections to plumbing fixtures where a flexible braided connector is specified.

Key Features

• Type 304 stainless steel over-braid for strength and corrosion resistance
• Virgin PVC core with polyester yarn braiding for flexibility and pressure retention
• Chrome-plated brass hex nuts and washers for a reliable hand-tight seal
• Rated to 180 degrees F maximum temperature and 125 psi maximum working pressure
• IAPMO listed for residential, commercial, and industrial water supply applications
• 3/4 inch FIP x 3/4 inch FIP connections, 24 inches in length

Compatibility

Designed as an OEM-style replacement flexible connector for residential, commercial, and industrial water heater and plumbing fixture supply line applications requiring 3/4 inch FIP connections.

Installation Notes

Installation is performed by a licensed plumber. Shut off the water supply and relieve system pressure before removing the existing connector or making new connections. Hand-tighten the brass hex nuts, then snug with a wrench — avoid over-torquing, which can crack the brass fittings or damage the washer seat. Verify no leaks under full system pressure before returning the water heater to service.

Technical Specifications

• Connection Type: 3/4 inch FIP x 3/4 inch FIP
• Length: 24 inches
• Braid Material: Type 304 Stainless Steel
• Core Material: Virgin PVC with polyester yarn braiding
• Nut Material: Chrome-plated brass
• Maximum Temperature: 180 degrees F
• Maximum Pressure: 125 psi
• Weight: 0.894 pounds
• Certification: IAPMO listed

Standard Information

• Brand: BK
• Manufacturer Part Number: 496-218
