Bk 496-213 Stainless Steel Washing Machine Hose 125 Psi

Product Description

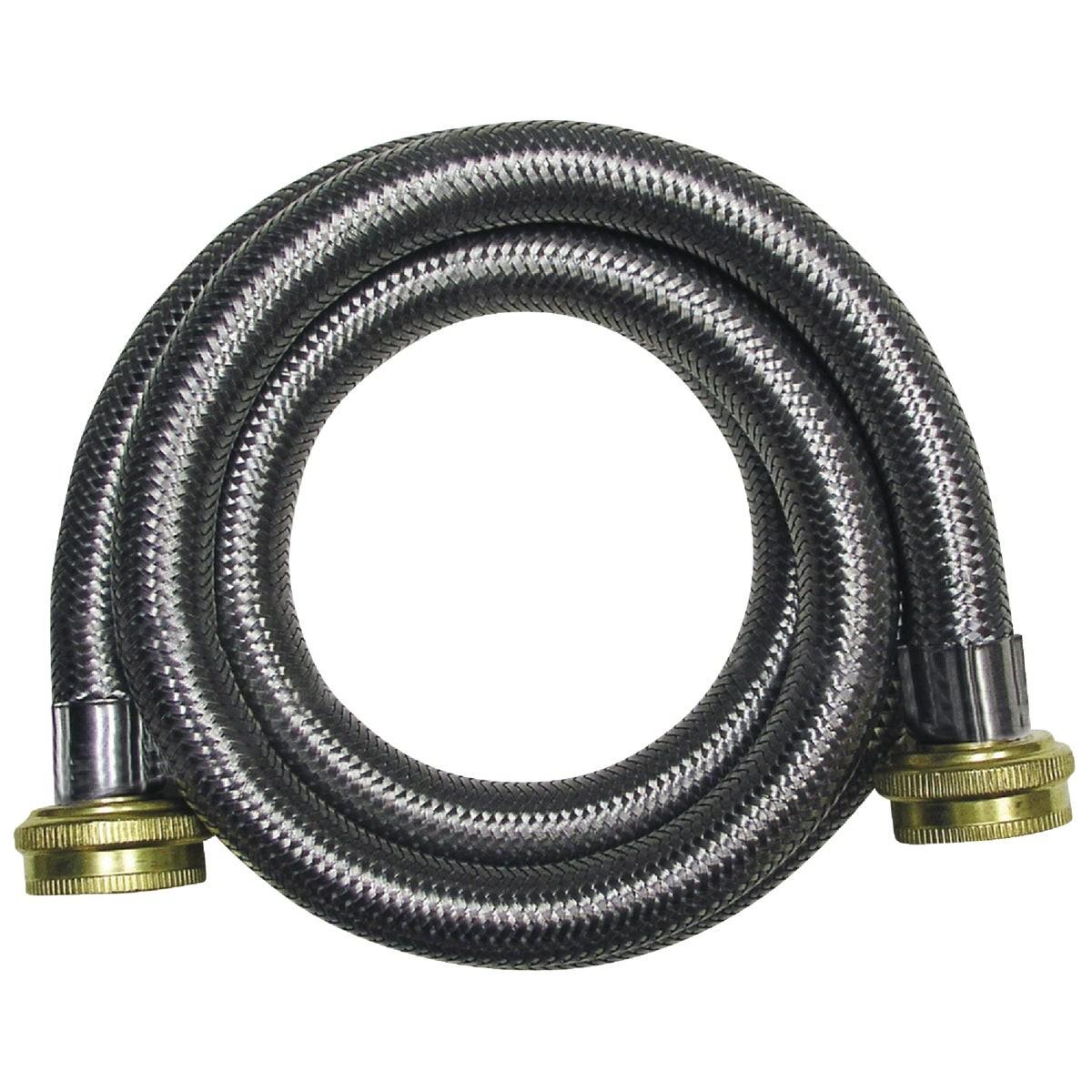

The BK 496-213 is a 6-foot braided stainless steel washing machine supply hose rated for 125 psi and up to 180 degrees F. It connects washing machines to standard 3/4-inch water supply valves using chrome-plated brass hex connector nuts that form a dependable hand-tight seal. The core is virgin PVC reinforced with polyester yarn braiding, then over-braided with Type 304 stainless steel for burst resistance and long-term durability. IAPMO listed for use in residential, commercial, and industrial water supply applications. Plumbers and appliance installers specify this hose where code-compliant, braided supply connections are required.

This hose is suited for standard top-load and front-load washing machine installations in residential laundry rooms, commercial laundromats, and light industrial settings. The 3/4-inch FHT by 3/4-inch FHT end fittings match the inlet connections found on most residential and commercial washing machines. The 6-foot length provides enough slack to allow equipment repositioning without stressing the connection. IAPMO listing satisfies plumbing inspection requirements in jurisdictions that adopt the Uniform Plumbing Code.

Key Features

• Type 304 stainless steel over-braid for burst resistance and corrosion protection
• Virgin PVC core with polyester yarn reinforcement for flexibility and pressure retention
• Chrome-plated brass hex nuts and washers for a hand-tight, leak-resistant seal
• Rated to 125 psi maximum working pressure
• Rated to 180 degrees F maximum operating temperature
• IAPMO listed for residential, commercial, and industrial water supply use

Compatibility

Designed as a replacement or new-installation supply hose for standard residential and commercial washing machines with 3/4-inch FHT inlet connections.

Installation Notes

Installation is typically performed by a licensed plumber or qualified appliance installer. Shut off the hot and cold water supply valves completely before disconnecting or connecting any supply hose. Hand-tighten the brass nuts to seat the washer, then snug with pliers — do not over-torque, as this can crack the washer or distort the fitting. Verify the connection is leak-free under normal supply pressure before returning the appliance to service.

Technical Specifications

• Length: 6 feet
• Connection Size: 3/4 inches x 3/4 inches FHT
• Maximum Pressure: 125 psi
• Maximum Temperature: 180 degrees F
• Core Material: Virgin PVC with polyester yarn braiding
• Outer Braid Material: Type 304 stainless steel
• Fitting Material: Chrome-plated brass
• Certification: IAPMO listed
• Application: Residential, commercial, industrial water supply
• Weight: 1.084 pounds

Standard Information

• Brand: BK
• Manufacturer Part Number: 496-213
