Bk 496-212DIB 5 Ft Stainless Steel Washing Machine Hose 125 Psi

Product Description

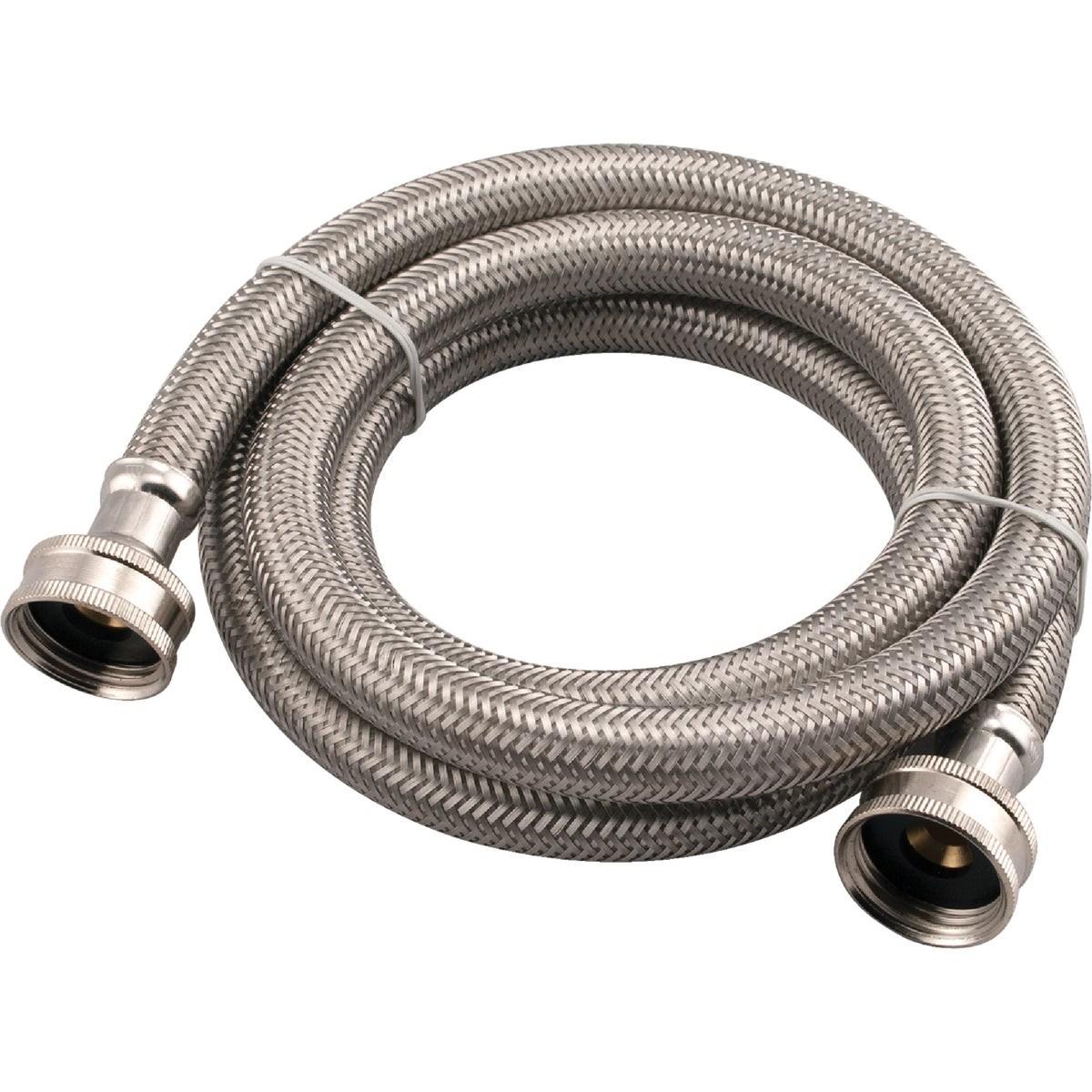

The BK 496-212DIB is a 5-foot braided stainless steel washing machine supply hose rated for 125 psi service. It connects with 3/4-inch female fittings on both ends, sized for standard residential washing machine inlet valves and shutoff valves. The core is virgin PVC reinforced with polyester yarn braiding, then over-braided with Type 304 stainless steel for mechanical protection and long service life. Chrome-plated brass hex connector nuts and integrated washers provide a dependable hand-tight seal without additional sealant. Licensed plumbers and experienced DIYers install this hose as a direct replacement or new installation on residential, commercial, and industrial water supply connections to fixtures.

This hose is suited for washing machine water supply connections in residential laundry rooms, commercial laundromats, and light industrial wash-down applications. It carries IAPMO listing, confirming compliance with recognized plumbing standards for water supply connectors. The 5-foot length accommodates most standard spacing between wall shutoffs and the washing machine inlet ports. Its all-metal connector nuts resist corrosion in humid mechanical rooms and laundry spaces.

Key Features

• Type 304 stainless steel over-braid over reinforced braided PVC core for strength and durability
• 3/4-inch x 3/4-inch female connections fit standard washing machine supply ports
• Chrome-plated brass hex connector nuts and washers for a secure hand-tight seal
• Rated to 125 psi maximum working pressure
• Rated to 180 degrees F maximum operating temperature
• IAPMO listed for residential, commercial, and industrial water supply fixture connections

Compatibility

Designed as an OEM-style replacement or new-installation supply hose for standard 3/4-inch threaded washing machine inlet connections in residential, commercial, and industrial applications.

Installation Notes

Installation is typically performed by a licensed plumber or a qualified DIYer familiar with water supply connections. Shut off the water supply at the wall valve and disconnect power to the washing machine before replacing the hose. Hand-tighten the brass connector nuts only — over-torquing with tools can damage the integral washer or crack the nut. Inspect the hose and connections for leaks after restoring water pressure, following applicable IPC and local plumbing code requirements.

Technical Specifications

• Connection Size: 3/4 inches x 3/4 inches
• Hose Length: 5 feet
• Maximum Working Pressure: 125 psi
• Maximum Temperature: 180 degrees F
• Core Material: Virgin PVC with polyester yarn braiding
• Outer Braid Material: Stainless Steel Type 304
• Connector Nuts: Chrome-plated brass hex with washers
• Listing: IAPMO
• Approved Applications: Residential, Commercial, Industrial
• Weight: 0.94 pounds

Standard Information

• Brand: BK
• Manufacturer Part Number: 496-212DIB
