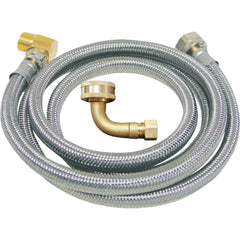

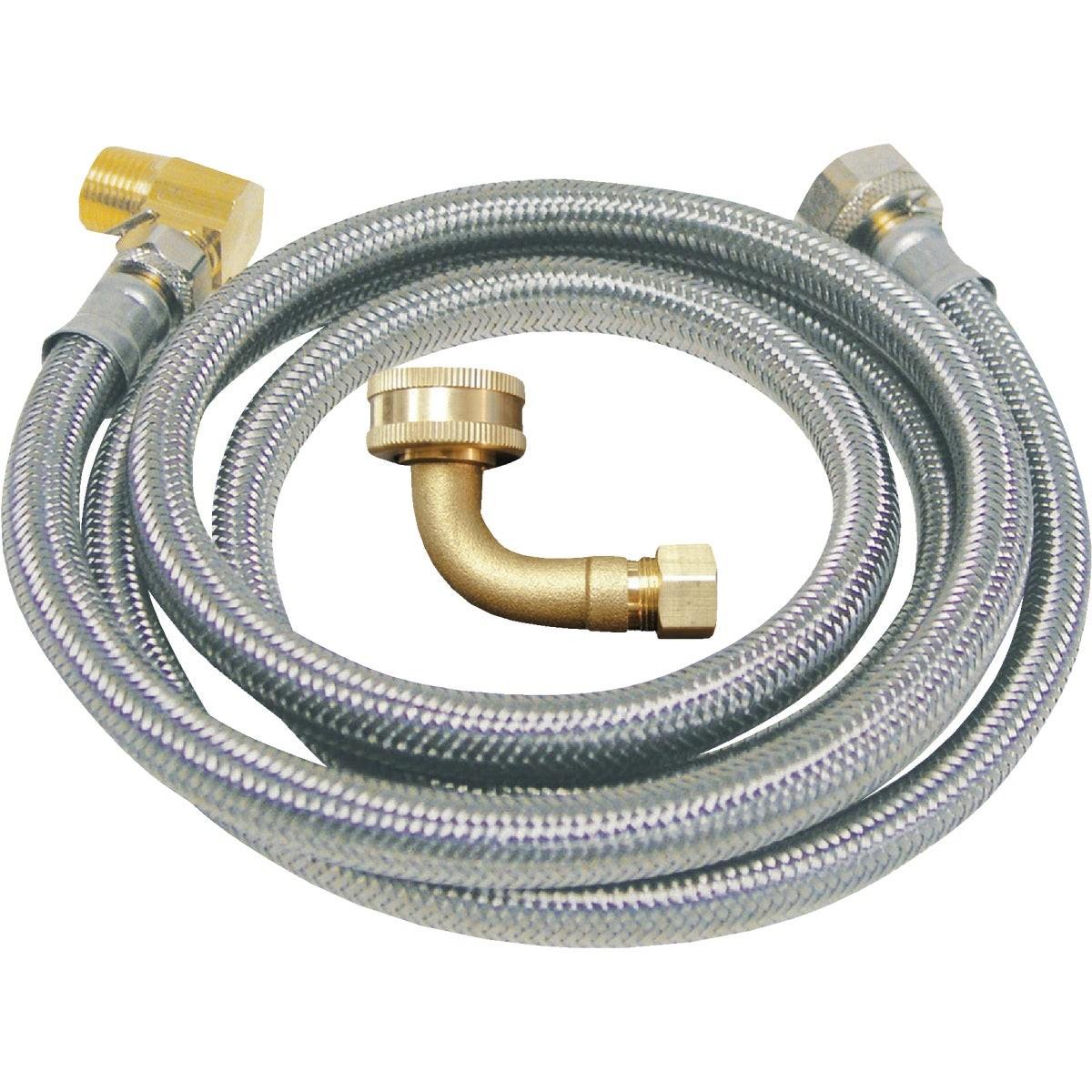

Bk 496-203 Stainless Steel Dishwasher Connector 72 in

Product Description

The BK 496-203 is a braided stainless steel dishwasher connector rated for residential, commercial, and industrial water supply applications. The connector measures 3/8 inch by 3/8 inch with a 72-inch length, giving installers the reach needed in tight cabinet or undercounter spaces. Construction starts with a virgin PVC core reinforced with polyester yarn braiding, then over-braided with 304 stainless steel for strength and corrosion resistance. Chrome-plated brass hex nuts and washers deliver a reliable hand-tight seal without the need for pipe dope or additional fittings. Rated to 125 psi and 180 degrees F, this connector meets the demands of standard domestic hot-water supply lines. IAPMO listing confirms third-party code compliance for permitted installations.

This connector is suited for connecting dishwashers to the water supply shutoff valve beneath the sink or at the point of connection behind the appliance. The 72-inch length accommodates installations where the supply valve is not immediately adjacent to the appliance inlet, including commercial kitchens and food-service environments where equipment placement varies. Licensed plumbers and appliance technicians handle this type of connection during new appliance installation or fixture replacement. IAPMO listing supports use in jurisdictions that require listed materials on water supply connections to fixtures.

Key Features

• 304 stainless steel over-braid for corrosion resistance and mechanical protection
• Virgin PVC core with polyester yarn reinforcement layer
• Chrome-plated brass hex nuts and washers for a hand-tight, leak-resistant seal
• Rated to 125 psi maximum working pressure
• Rated to 180 degrees F maximum temperature
• IAPMO listed for residential, commercial, and industrial water supply connections

Compatibility

Designed as an OEM-style replacement or new-installation connector for dishwashers and similar appliances requiring a 3/8-inch inlet and 3/8-inch supply connection in residential, commercial, and industrial settings.

Installation Notes

Installation is typically performed by a licensed plumber or qualified appliance technician. Shut off the water supply at the nearest isolation valve and relieve line pressure before disconnecting or connecting any supply fitting. Hand-tighten the brass hex nuts only — overtightening with a wrench can crack the brass fittings or damage the washer seat. Verify that local plumbing codes and IAPMO requirements are met before placing the connection into service.

Technical Specifications

• Connection Size: 3/8 inch x 3/8 inch
• Length: 72 inches
• Maximum Pressure: 125 psi
• Maximum Temperature: 180 degrees F
• Outer Braid Material: 304 Stainless Steel
• Core Material: Virgin PVC with polyester yarn braiding
• Fittings: Chrome-plated brass hex nuts with washers
• Weight: 1.025 pounds
• Certification: IAPMO Listed

Standard Information

• Brand: BK
• Manufacturer Part Number: 496-203
