Bk 496-202 Stainless Steel Dishwasher Connector 60 in

Product Description

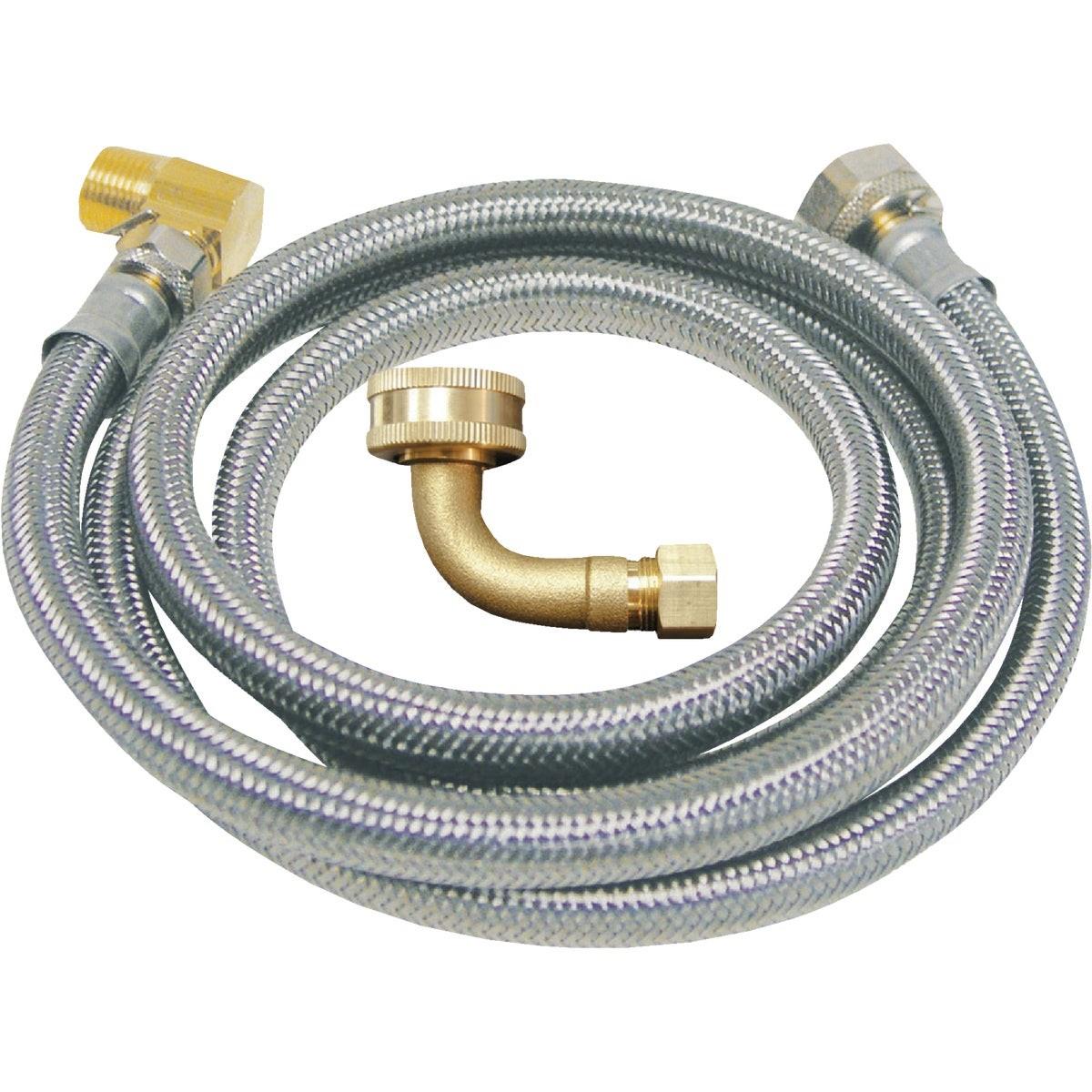

The BK 496-202 is a braided stainless steel dishwasher supply connector designed for water supply connections in residential, commercial, and industrial plumbing installations. The connector measures 3/8 inch by 3/8 inch with a 60-inch length, giving installers sufficient reach for standard and offset dishwasher rough-in locations. The core is virgin PVC reinforced with polyester yarn braiding, then over-braided with 304 stainless steel for mechanical strength and corrosion resistance. Chrome-plated brass hex nuts and integrated washers provide a dependable hand-tight seal without the need for thread sealant at the connection points. Rated to 125 psi and 180 degrees F, this connector meets the demands of hot-water supply service. IAPMO listing confirms code compliance for permitted installations.

This connector is suited for dishwasher supply line hookups in residential kitchens, light commercial food service settings, and industrial applications where a reliable, flexible water supply line is required. The 60-inch length accommodates installations where the shutoff valve is located farther from the dishwasher inlet than a standard shorter connector would reach. Plumbers and plumbing contractors are the primary installers, though the hand-tight brass nut design also suits knowledgeable maintenance technicians working in commercial facilities.

Key Features

• 304 stainless steel over-braid provides corrosion resistance and mechanical protection for the PVC core
• Chrome-plated brass hex nuts and washers deliver a hand-tight, leak-resistant seal
• Rated to 125 psi maximum working pressure for standard residential and commercial water supply service
• 180 degrees F maximum temperature rating supports hot-water supply connections
• 60-inch length accommodates extended reach installations
• IAPMO listed for residential, commercial, and industrial water supply applications

Compatibility

Approved for residential, commercial, and industrial water supply connections to fixtures; suitable for standard dishwasher inlet fittings accepting 3/8-inch compression-style connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the IPC or applicable adopted code. Shut off the water supply and relieve line pressure before disconnecting the existing supply line. Hand-tighten the brass nuts only — do not use a pipe wrench or channel-lock pliers directly on the chrome-plated nuts, as over-torquing can crack the nut or damage the washer seat. Inspect the washers for seating before pressurizing the line and check for leaks after restoring water supply.

Technical Specifications

• End Size: 3/8 inches x 3/8 inches
• Length: 60 inches
• Maximum Pressure: 125 psi
• Maximum Temperature: 180 degrees F
• Core Material: Virgin PVC with polyester yarn braiding
• Outer Braid Material: 304 stainless steel
• Nut Material: Chrome-plated brass
• Certification: IAPMO listed
• Weight: 0.863 pounds

Standard Information

• Brand: BK
• Manufacturer Part Number: 496-202
