Bk 496-201DIB Dishwasher Connector 3/8 X 3/8 In. 48 In.

Product Description

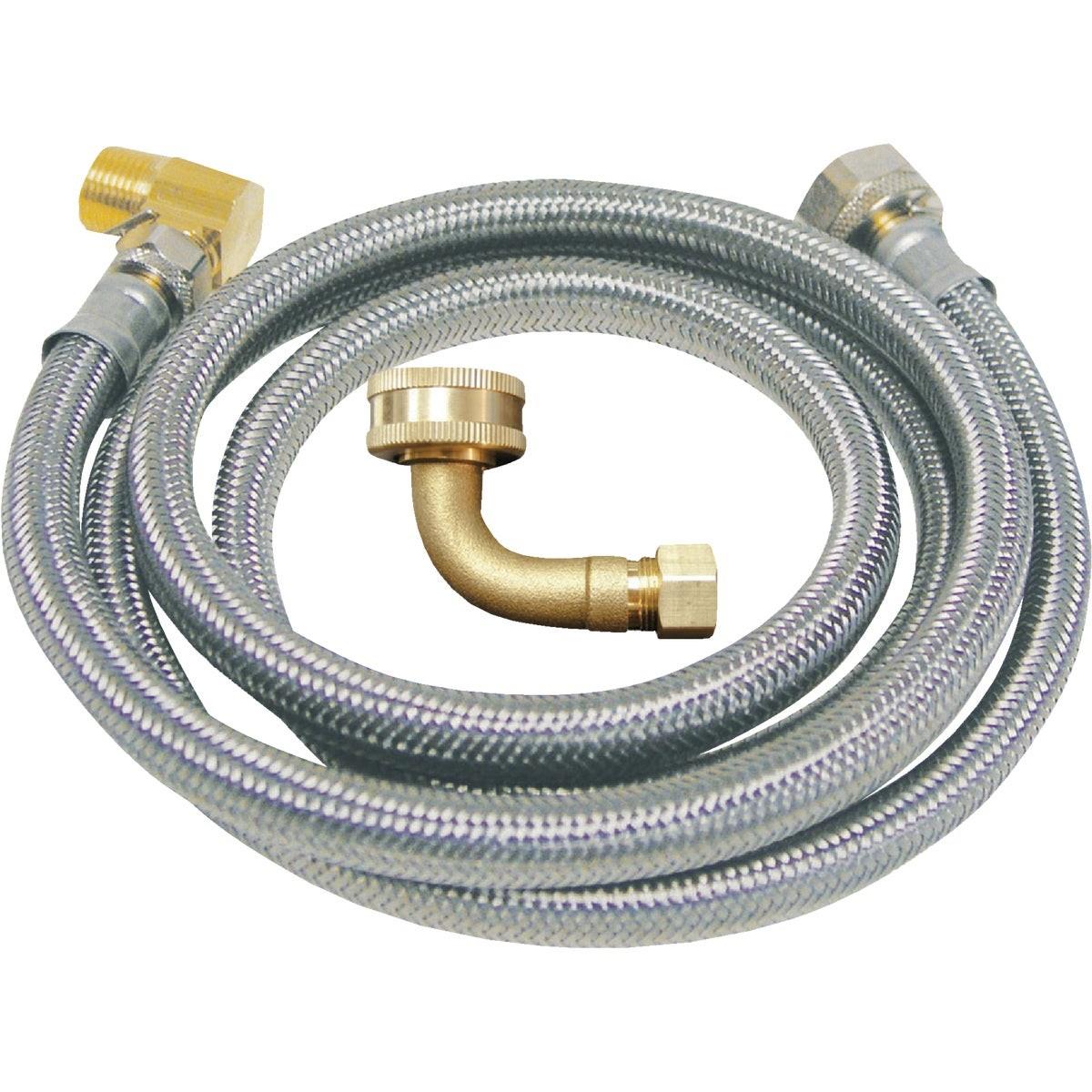

The BK 496-201DIB is a 48-inch braided stainless steel dishwasher supply connector designed for hot water supply connections between a household or commercial water supply line and a dishwasher. The core is constructed from virgin PVC reinforced with polyester yarn braiding, then over-braided with Type 304 stainless steel for added strength. Chrome-plated brass hex nuts and washers provide a dependable hand-tight seal at both ends. The connector is rated for a maximum operating temperature of 180 degrees F and a maximum pressure of 125 psi, making it suitable for standard residential, commercial, and industrial water supply installations.

This connector is used wherever a dishwasher requires a flexible water supply connection at a 3/8-inch supply stub-out. It fits residential kitchens, commercial food service installations, and light industrial settings. The 48-inch length provides adequate slack for most standard under-sink rough-in configurations, allowing the appliance to be pulled forward for service without disconnecting the supply line.

Key Features

• Type 304 stainless steel outer braid over reinforced polyester yarn and virgin PVC core
• Chrome-plated brass hex connector nuts at both ends for a hand-tight, leak-resistant seal
• 3/8 In. x 3/8 In. end connections, 48 inches in length
• Rated to 125 psi maximum working pressure
• Rated to 180 degrees F maximum operating temperature
• IAPMO listed for residential, commercial, and industrial water supply applications

Compatibility

Approved for residential, commercial, and industrial water supply connections to dishwashers and plumbing fixtures requiring 3/8-inch inlet and outlet connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IAPMO standards. Shut off the water supply at the nearest isolation valve before disconnecting or connecting supply lines. Hand-tighten the brass nuts securely and check for leaks before returning the appliance to service. Do not over-torque the brass nuts, as this may damage the sealing washer and cause leaks.

Technical Specifications

• Connection Size: 3/8 inches x 3/8 inches
• Length: 48 inches
• Maximum Pressure: 125 psi
• Maximum Temperature: 180 degrees F
• Core Material: Virgin PVC with polyester yarn braiding
• Outer Braid Material: Type 304 stainless steel
• Nut Material: Chrome-plated brass
• Weight: 0.574 pounds
• Certification: IAPMO Listed

Standard Information

• Brand: BK
• Manufacturer Part Number: 496-201DIB
