Bk 496-150 Toilet Supply Connector 1/2 in Fip X 7/8 in 9 in

Product Description

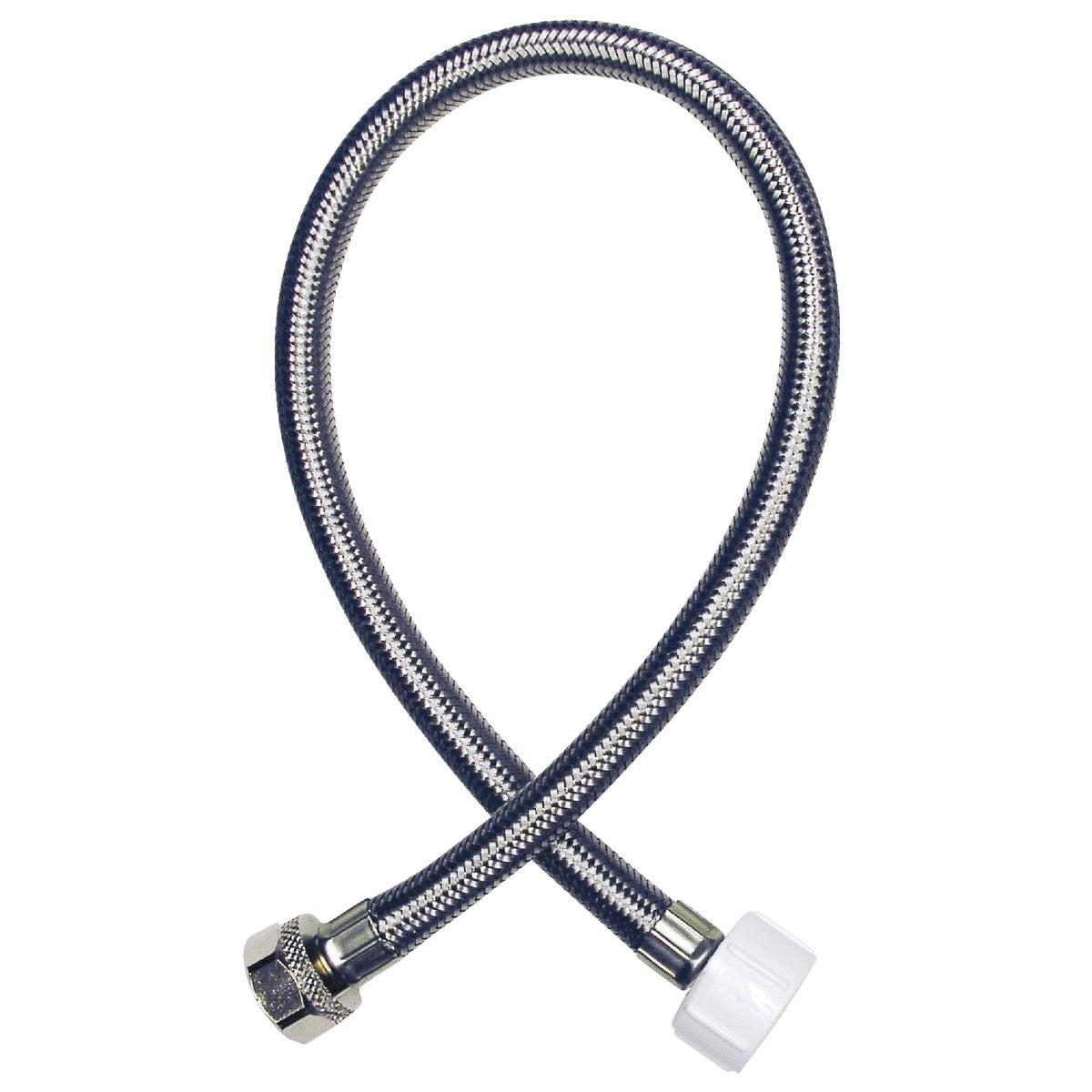

The BK 496-150 is a braided stainless steel toilet supply connector designed for water supply connections between shut-off valves and toilet fill valves. The core is virgin PVC reinforced with polyester yarn braiding, then over-braided with 304 stainless steel for strength and durability. Chrome-plated brass hex nuts and washers provide a dependable hand-tight seal. This connector measures 9 inches in length with a 1/2 inch FIP inlet and a 7/8 inch ballcock (BC) nut outlet. Licensed plumbers and qualified installers use this fitting in residential, commercial, and industrial plumbing applications.

This connector is suited for toilet fixture water supply connections in new construction, renovation, and replacement work across residential, commercial, and industrial settings. The 1/2 inch FIP x 7/8 inch BC nut configuration is a common interface for standard toilet fill valve connections. IAPMO listing confirms compliance with recognized plumbing and mechanical standards, making it acceptable under most local plumbing codes.

Key Features

• Virgin PVC core with polyester yarn braiding for flexible, reliable flow
• 304 stainless steel over-braid for corrosion resistance and mechanical protection
• Chrome-plated brass hex nuts and washers for a secure hand-tight seal
• Rated to 125 psi maximum working pressure
• Rated to 180 degrees F maximum temperature
• IAPMO listed for residential, commercial, and industrial water supply use

Compatibility

Designed as an OEM-style replacement toilet supply connector for standard 1/2 inch FIP shut-off valve outlets connecting to 7/8 inch ballcock nut inlets on toilet fill valves. Approved for residential, commercial, and industrial water supply fixture connections.

Installation Notes

Installation is performed by a licensed plumber or qualified tradesperson in accordance with local plumbing codes and the IPC. Shut off the water supply and flush the toilet to relieve line pressure before disconnecting the existing connector. Hand-tighten the nuts to achieve a proper seal; avoid over-torquing brass nuts, which can crack the fitting or distort the washer seat. Inspect the connection for leaks after restoring water supply pressure.

Technical Specifications

• Inlet Connection: 1/2 inch FIP
• Outlet Connection: 7/8 inch BC Nut
• Length: 9 inches
• Maximum Pressure: 125 psi
• Maximum Temperature: 180 degrees F
• Core Material: Virgin PVC with polyester yarn braiding
• Braid Material: 304 Stainless Steel
• Nut Material: Chrome-plated brass
• Certification: IAPMO listed
• Weight: 0.188 pounds
• Sold As: Each

Standard Information

• Brand: BK
• Manufacturer Part Number: 496-150
