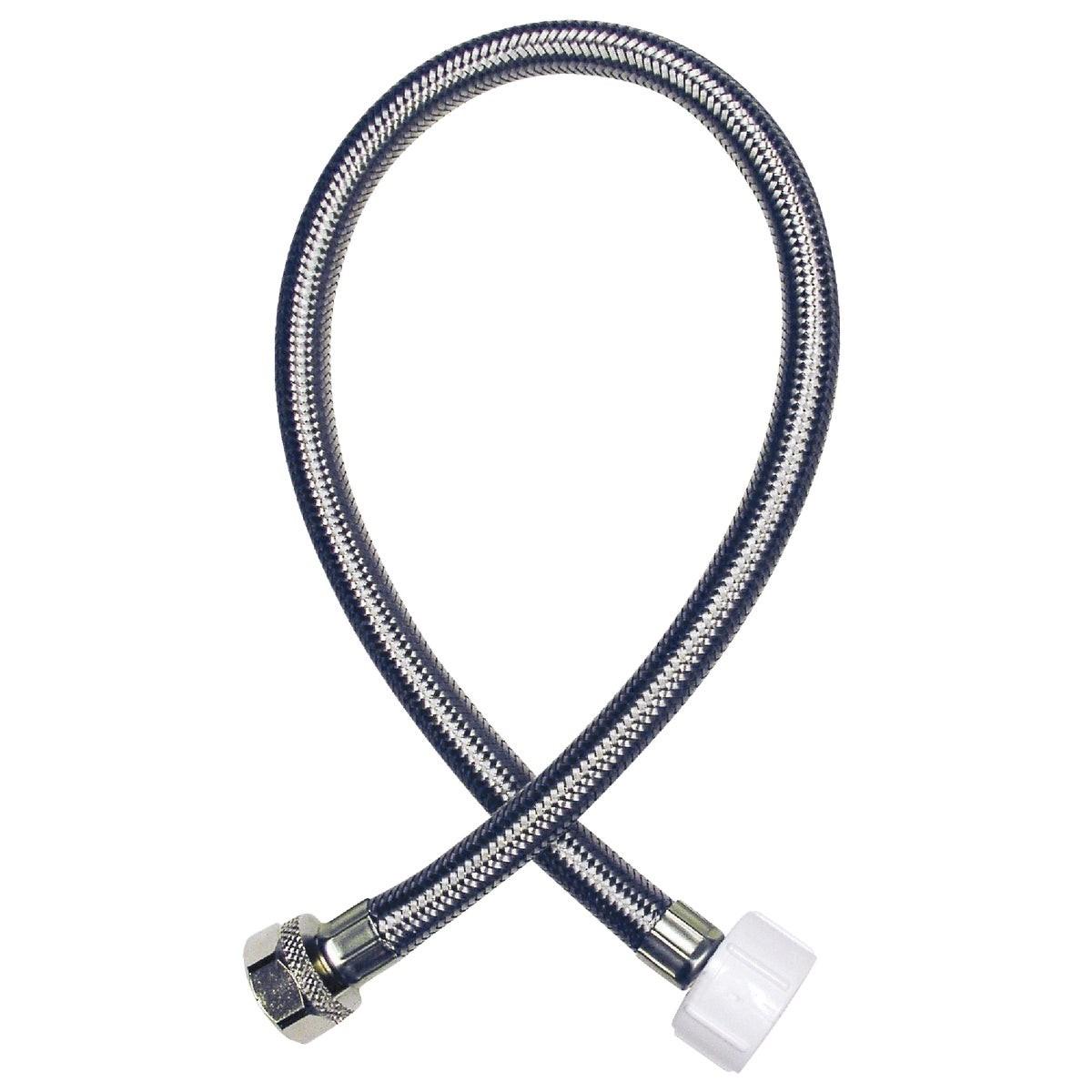

Bk 496-123 Toilet Supply Connector 12 Inch Braided Ss

Product Description

The BK 496-123 is a braided stainless steel toilet supply connector designed for water supply connections between shut-off valves and toilet fixtures. The core is virgin PVC reinforced with polyester yarn braiding, then over-braided with Type 304 stainless steel for tensile strength and corrosion resistance. Chrome-plated brass hex nuts and washers provide a dependable hand-tight seal without the need for pipe dope or thread tape on the compression end. Rated to a maximum working pressure of 125 psi and a maximum temperature of 180 degrees F, this connector meets the demands of residential, commercial, and industrial plumbing installations. IAPMO listed for code-compliance confidence.

This connector is suited for toilet rough-in supply line replacements and new installations where a 1/2 inch female iron pipe (FIP) inlet and a 7/8 inch ballcock (BC) outlet are required. The 12 inch length accommodates standard wall-to-toilet rough-in distances in most residential and light commercial restroom configurations. Licensed plumbers and experienced DIYers install this connector during fixture replacements, bathroom remodels, and routine supply line maintenance. Its IAPMO listing makes it acceptable under most model plumbing codes that reference IAPMO standards.

Key Features

• Type 304 stainless steel over-braid for corrosion resistance and burst strength
• Virgin PVC core with polyester yarn braiding for flexible, kink-resistant performance
• Chrome-plated brass hex nuts and washers for a reliable hand-tight seal
• Rated to 125 psi maximum working pressure and 180 degrees F maximum temperature
• IAPMO listed — approved for residential, commercial, and industrial water supply applications
• 12 inch length with 1/2 inch FIP x 7/8 inch BC end connections

Compatibility

Designed as an OEM-style replacement supply connector for toilet fixtures requiring a 1/2 inch female iron pipe inlet connection and a 7/8 inch ballcock outlet connection.

Installation Notes

Installation is performed by a licensed plumber or qualified tradesperson in accordance with local plumbing codes and applicable sections of the IPC or UPC. Shut off the water supply and flush the toilet to relieve line pressure before disconnecting the existing connector. Hand-tighten the brass nuts only — do not use a pipe wrench or channel-lock pliers on the ballcock nut, as overtightening can crack the toilet tank fitting. After installation, restore water supply slowly and inspect both connections for leaks before leaving the job.

Technical Specifications

• Inlet Connection: 1/2 inch Female Iron Pipe (FIP)
• Outlet Connection: 7/8 inch Ballcock (BC)
• Length: 12 inches
Core Material: Virgin PVC with polyester yarn braiding
• Over-Braid Material: Type 304 stainless steel
• Nut and Washer Material: Chrome-plated brass
• Maximum Working Pressure: 125 psi
• Maximum Temperature: 180 degrees F
• Weight: 0.204 pounds
• Certification: IAPMO listed
• Sold As: Each

Standard Information

• Brand: BK
• Manufacturer Part Number: 496-123
