Bk 496-104 Toilet Supply Connector 3/8 Fc X 7/8 Bc 16 in

Product Description

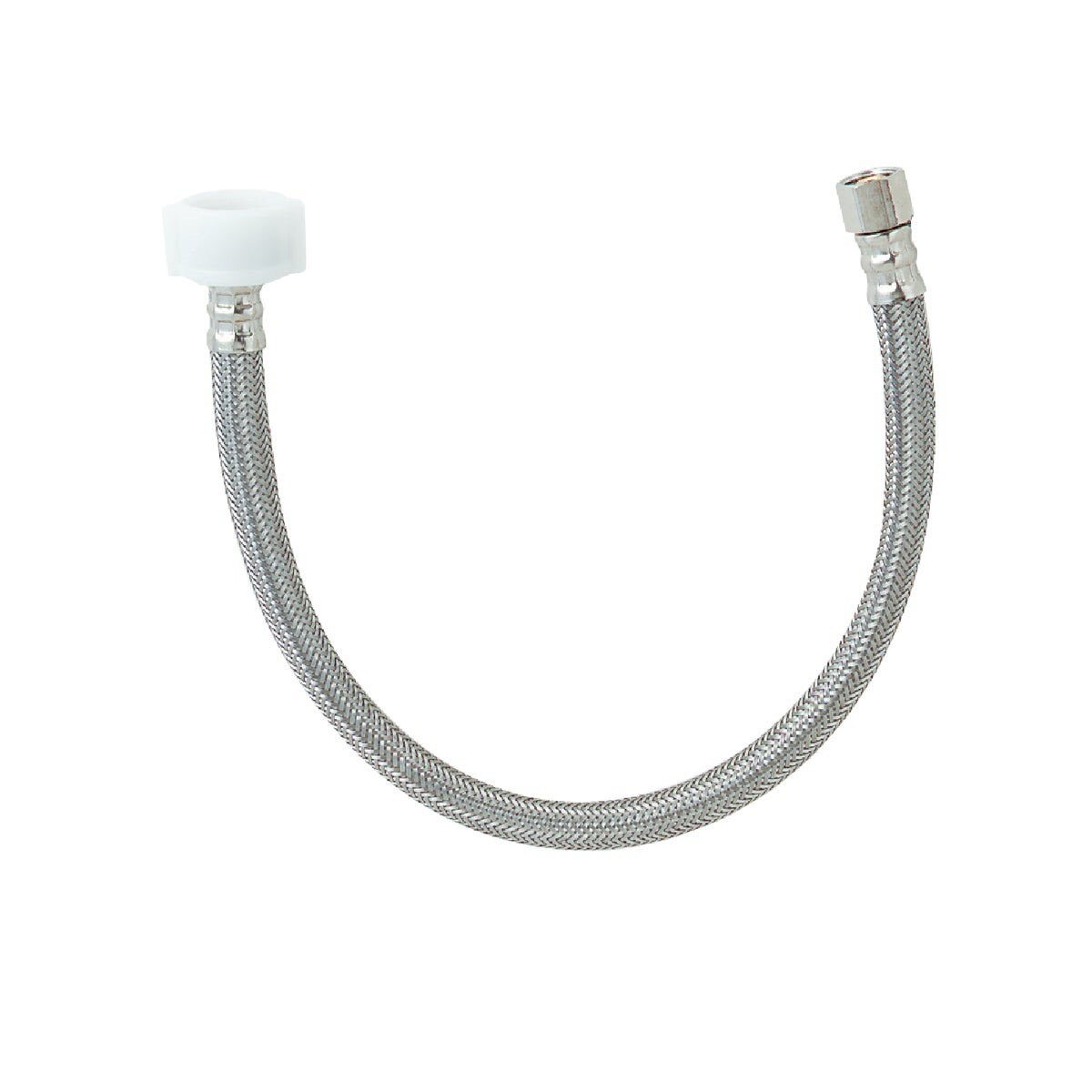

The BK 496-104 is a braided stainless steel toilet supply connector designed for water supply connections between shutoff valves and toilet fill valves. It features a virgin PVC core reinforced with polyester yarn braiding and an outer layer of 304 stainless steel braid for strength and flexibility. Chrome-plated brass hex nuts and washers provide a dependable hand-tight seal without the need for tools. Rated to a maximum working pressure of 125 psi and a maximum temperature of 180 degrees F, this connector meets the demands of residential, commercial, and industrial plumbing installations. IAPMO listed.

This connector is sized with a 3/8 inch female compression (FC) inlet and a 7/8 inch ballcock (BC) outlet, covering the standard toilet fill valve connection found in most residential and light commercial restroom installations. The 16 inch length accommodates typical in-wall shutoff-to-tank distances. Licensed plumbers and plumbing contractors install this fitting during new construction, fixture replacement, or routine toilet service. It is sold individually and suited for any application requiring a flexible braided supply line at a toilet.

Key Features

• 304 stainless steel outer braid over polyester yarn and virgin PVC core for corrosion resistance and flexibility
• Chrome-plated brass hex nuts and washers for a reliable hand-tight connection
• 3/8 inch female compression inlet x 7/8 inch ballcock outlet — standard toilet supply sizing
• 16 inch overall length suits most standard rough-in installations
• Rated to 125 psi maximum working pressure and 180 degrees F maximum temperature
• IAPMO listed for residential, commercial, and industrial water supply applications

Compatibility

Designed as an OEM-style replacement supply line for residential and commercial toilet installations requiring a 3/8 inch female compression shutoff connection and a 7/8 inch ballcock fitting at the fill valve.

Installation Notes

Installation is performed by a licensed plumber or qualified plumbing technician. Shut off the water supply at the angle stop valve and flush the toilet to relieve line pressure before disconnecting the existing supply line. Hand-tighten the brass nuts to seat the washers, then verify for leaks before returning the system to service. Do not over-tighten with a wrench, as this can crack the fitting seat or damage the washers.

Technical Specifications

• Inlet Connection: 3/8 inch Female Compression (FC)
• Outlet Connection: 7/8 inch Ballcock (BC)
• Length: 16 inches
• Maximum Pressure: 125 psi
• Maximum Temperature: 180 degrees F
• Core Material: Virgin PVC with polyester yarn braiding
• Outer Braid Material: 304 Stainless Steel
• Nut Material: Chrome-plated brass
• Weight: 0.245 pounds
• Certification: IAPMO Listed
• Unit of Measure: Each

Standard Information

• Brand: BK
• Manufacturer Part Number: 496-104
