Bk 496-102 Toilet Supply Connector 3/8 in Fc 9 in

Product Description

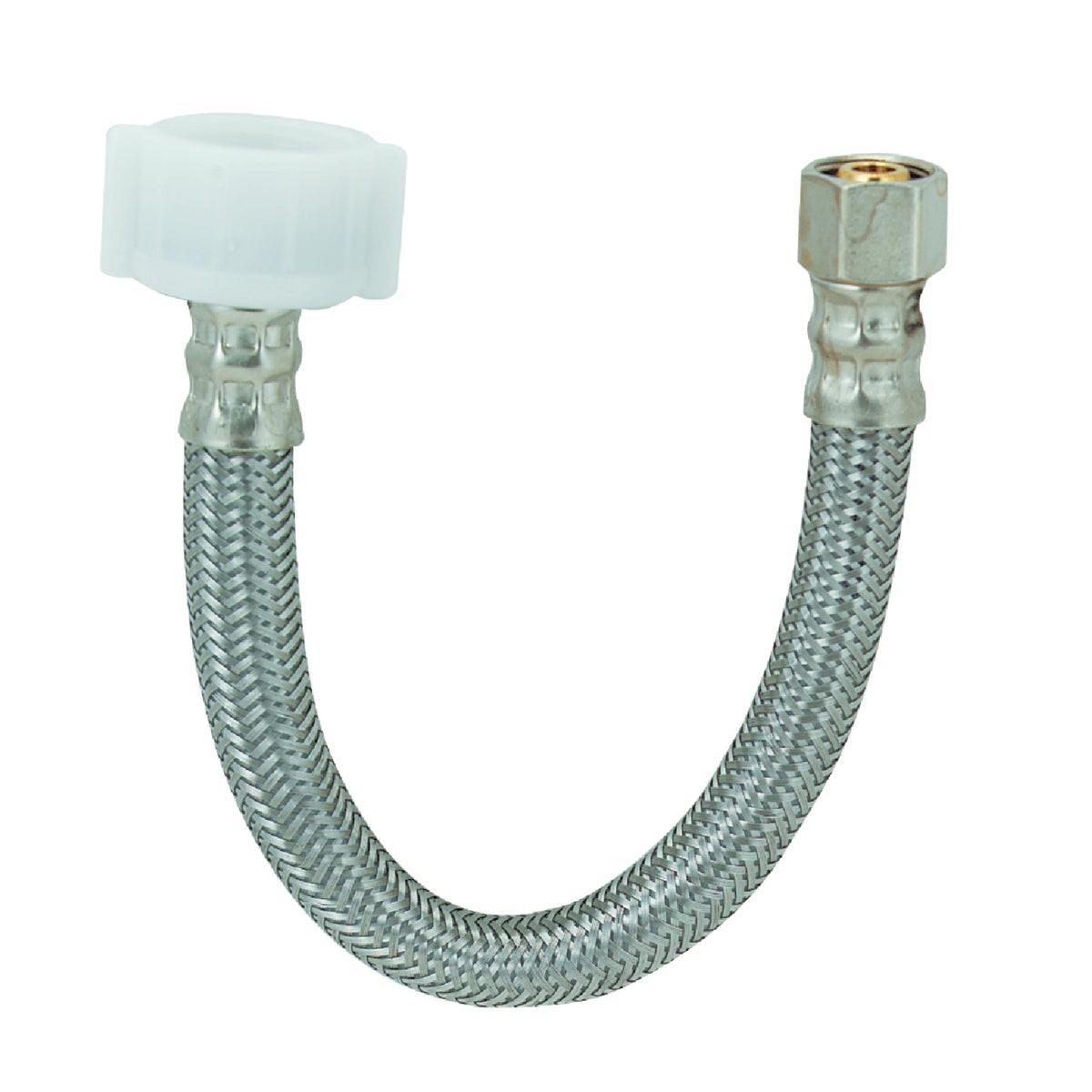

The BK 496-102 is a 9-inch braided stainless steel toilet supply connector designed for water supply connections to toilet fixtures in residential, commercial, and industrial plumbing installations. The core is virgin PVC reinforced with polyester yarn braiding, then over-braided with 304 stainless steel for durability under pressure. Chrome-plated brass hex nuts and washers provide a dependable hand-tight seal without the need for tools. The connector is rated to a maximum pressure of 125 psi and a maximum temperature of 180 degrees F, and it carries IAPMO listing for code-compliant installations. Licensed plumbers install this connector as part of toilet rough-in and fixture-setting work.

The 496-102 is sized with a 3/8-inch female compression fitting on one end and a 7/8-inch ballcock nut on the other, making it a standard fit for toilet fill valve connections. At 9 inches in length, it suits typical residential and light commercial toilet installations where the supply stub-out is located close to the fixture. The IAPMO listing confirms compliance with applicable plumbing codes for potable water supply applications across residential, commercial, and industrial settings.

Key Features

• 304 stainless steel over-braid provides corrosion resistance and burst protection
• Virgin PVC core with polyester yarn reinforcement for flexible, durable service
• Chrome-plated brass hex nuts and washers for a hand-tight, leak-resistant connection
• Rated to 125 psi maximum working pressure and 180 degrees F maximum temperature
• IAPMO listed for code-compliant residential, commercial, and industrial water supply use
• 3/8 In. female compression x 7/8 In. ballcock nut connection ends

Compatibility

Designed as an OEM-style replacement or new-installation supply line for toilet fill valves requiring a 3/8-inch female compression inlet and a 7/8-inch ballcock nut connection, suitable for residential, commercial, and industrial toilet fixture applications.

Installation Notes

Installation is performed by a licensed plumber following local plumbing code requirements, including IPC guidelines for water supply connections. Shut off the water supply at the angle stop valve and flush the toilet to relieve line pressure before disconnecting or installing the supply connector. Hand-tighten the brass nuts to seat the washers, then verify for leaks before returning the fixture to service. Do not overtighten, as excessive torque can crack the brass nuts or damage the fill valve inlet.

Technical Specifications

• Length: 9 inches
• Inlet Connection: 3/8 inches Female Compression (FC)
• Outlet Connection: 7/8 inches Ballcock Nut (BC Nut)
• Maximum Pressure: 125 psi
• Maximum Temperature: 180 degrees F
• Core Material: Virgin PVC with polyester yarn braiding
• Braid Material: 304 stainless steel
• Nut Material: Chrome-plated brass
• Certification: IAPMO listed
• Weight: 0.17 pounds

Standard Information

• Brand: BK
• Manufacturer Part Number: 496-102
