Bk 496-071DIB Stainless Steel Faucet Connector 3/8in

Product Description

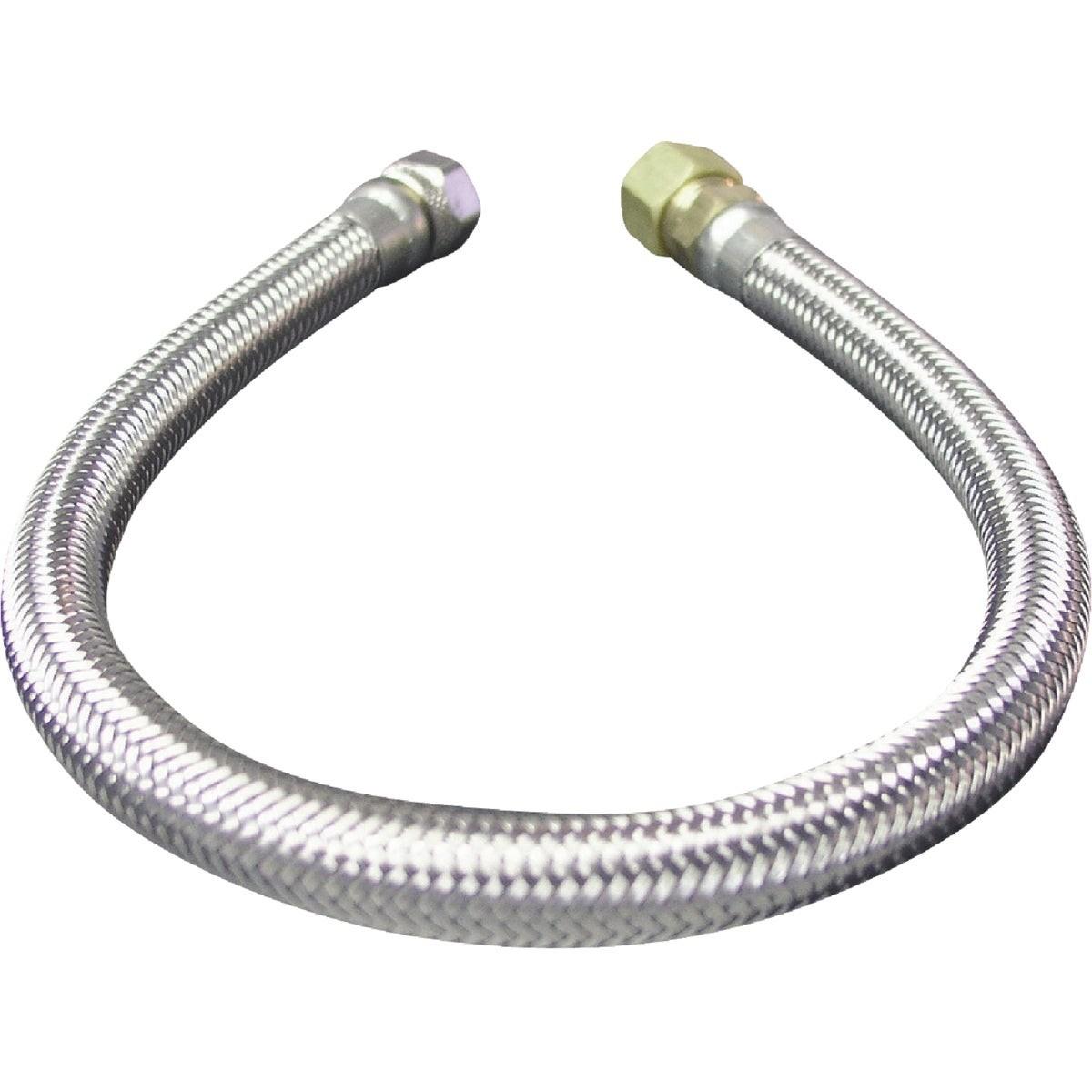

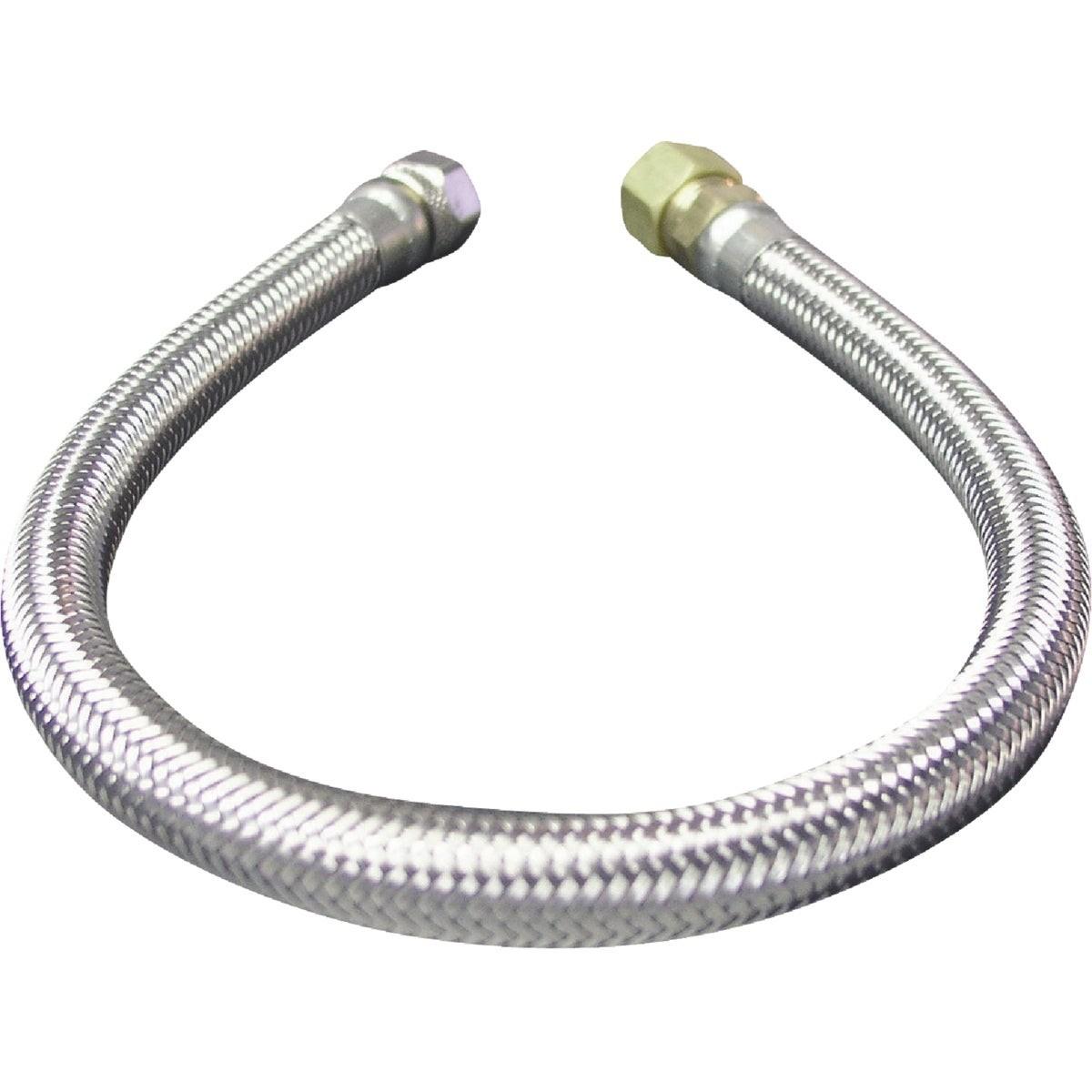

The BK 496-071DIB is a braided stainless steel faucet connector designed for water supply connections between shutoff valves and plumbing fixtures. It features a 3/8 inch female inlet, a 3/8 inch OD compression outlet, and a 12 inch length. The core is virgin PVC reinforced with polyester yarn braiding, over-braided with 304 stainless steel for tensile strength and corrosion resistance. Chrome-plated brass hex nuts and washers deliver a dependable hand-tight seal without requiring tools. Rated to 125 psi maximum working pressure and a maximum temperature of 180 degrees F, this connector is built for long-term service in demanding installations.

This connector is approved for residential, commercial, and industrial water supply applications. It is suited for connecting supply lines to faucets, toilets, and other fixtures where a flexible, corrosion-resistant line is required. The 12 inch length accommodates standard under-sink and vanity rough-in configurations. IAPMO listing confirms compliance with applicable plumbing standards, making it acceptable for permitted work in jurisdictions that recognize IAPMO-certified products.

Key Features

• 304 stainless steel over-braid provides corrosion resistance and mechanical protection
• Virgin PVC core with polyester yarn reinforcement for pressure integrity
• Chrome-plated brass hex nuts and washers for a hand-tight, leak-resistant seal
• Rated to 125 psi maximum working pressure and 180 degrees F maximum temperature
• IAPMO listed for residential, commercial, and industrial water supply use
• 3/8 inch female x 3/8 inch OD x 12 inch length covers common fixture rough-ins

Compatibility

Approved for residential, commercial, and industrial water supply connections to plumbing fixtures. Suitable for use wherever a 3/8 inch female x 3/8 inch OD braided supply connector is specified.

Installation Notes

Installation is performed by a licensed plumber or qualified tradesperson. Shut off the water supply and relieve line pressure before disconnecting any existing connector. Hand-tighten the brass nuts to seat the washers, then verify for leaks before returning the system to service. Do not overtighten with a wrench, as excess torque can crack the brass nuts or deform the washers and cause leaks.

Technical Specifications

• Inlet Connection: 3/8 inch Female
• Outlet Connection: 3/8 inch OD Compression
• Length: 12 inches
• Maximum Working Pressure: 125 psi
• Maximum Temperature: 180 degrees F
• Core Material: Virgin PVC with polyester yarn braiding
• Over-Braid Material: Stainless Steel 304
• Nut Material: Chrome-plated brass
• Weight: 0.21 pounds
• Certifications: IAPMO Listed

Standard Information

• Brand: BK
• Manufacturer Part Number: 496-071DIB
