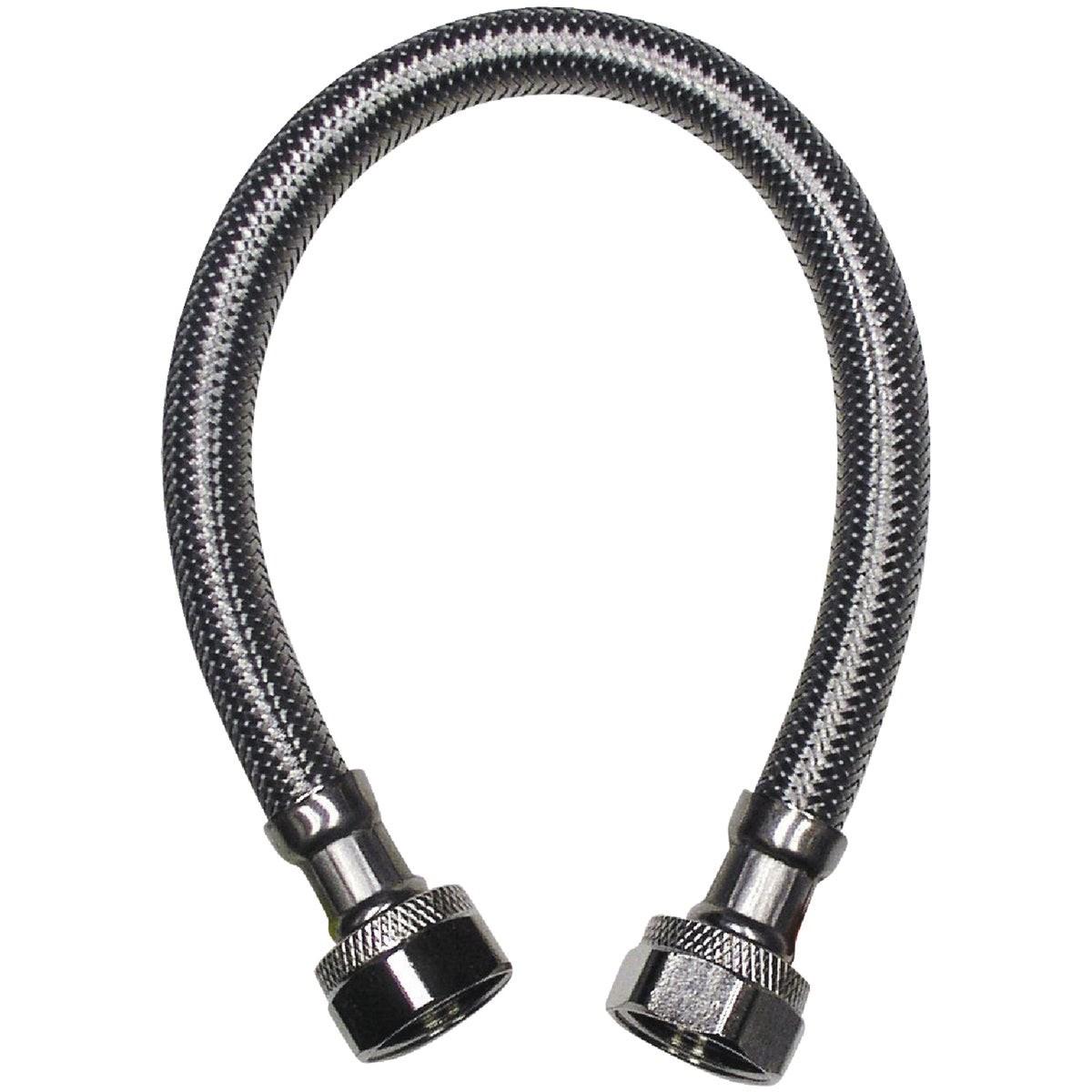

Bk 496-063 Stainless Steel Faucet Connector 20 Inch

Product Description

The BK 496-063 is a braided stainless steel faucet supply connector designed for water supply connections between shutoff valves and faucet inlets. The connector features a virgin PVC core reinforced with polyester yarn braiding, over-braided with 304 stainless steel for strength and flexibility. Chrome-plated brass hex nuts with pre-installed washers provide a dependable hand-tight seal without the need for pipe dope or thread tape on compression ends. Rated to 125 psi and a maximum temperature of 180 degrees F, this connector suits residential, commercial, and industrial plumbing installations. Plumbers and fixture installers reach for this type of supply line during faucet replacement and new rough-in work.

This connector is intended for potable water supply connections to faucets and similar fixtures. The 1/2 inch female iron pipe (FIP) inlet and 1/2 inch compression outlet configuration covers a common faucet supply hookup. At 20 inches in length, it fits standard under-sink installations where the shutoff valve and faucet tail piece are within typical reach. Approved for residential, commercial, and industrial water supply applications, it is IAPMO listed and suitable for use wherever local plumbing codes require listed flexible connectors.

Key Features

• 304 stainless steel over-braid provides corrosion resistance and mechanical protection
• Virgin PVC core with polyester yarn reinforcement supports rated pressure and temperature
• Chrome-plated brass hex nuts with washers create a hand-tight leak-free seal
• Rated to 125 psi maximum working pressure
• Maximum temperature rating of 180 degrees F
• IAPMO listed for residential, commercial, and industrial water supply use

Compatibility

Designed as an OEM-style replacement or new-installation flexible faucet supply connector for 1/2 inch FIP inlet and 1/2 inch compression outlet fittings in residential, commercial, and industrial plumbing systems.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC requirements. Shut off the water supply and relieve line pressure before disconnecting any existing supply connector. Hand-tighten the nuts, then snug with an adjustable wrench — do not overtighten, as over-torquing brass nuts can crack fittings or distort the washer seal. Inspect for leaks at both connections after restoring supply pressure.

Technical Specifications

• Inlet Connection: 1/2 inch Female Iron Pipe (FIP)
• Outlet Connection: 1/2 inch Compression
• Length: 20 inches
• Maximum Working Pressure: 125 psi
• Maximum Temperature: 180 degrees F
• Braid Material: 304 Stainless Steel
• Core Material: Virgin PVC with polyester yarn braiding
• Nut Material: Chrome-plated brass
• Weight: 0.295 pounds
• Certification: IAPMO Listed

Standard Information

• Brand: BK
• Manufacturer Part Number: 496-063
