Bk 496-061 Stainless Steel Faucet Connector 12 in

Product Description

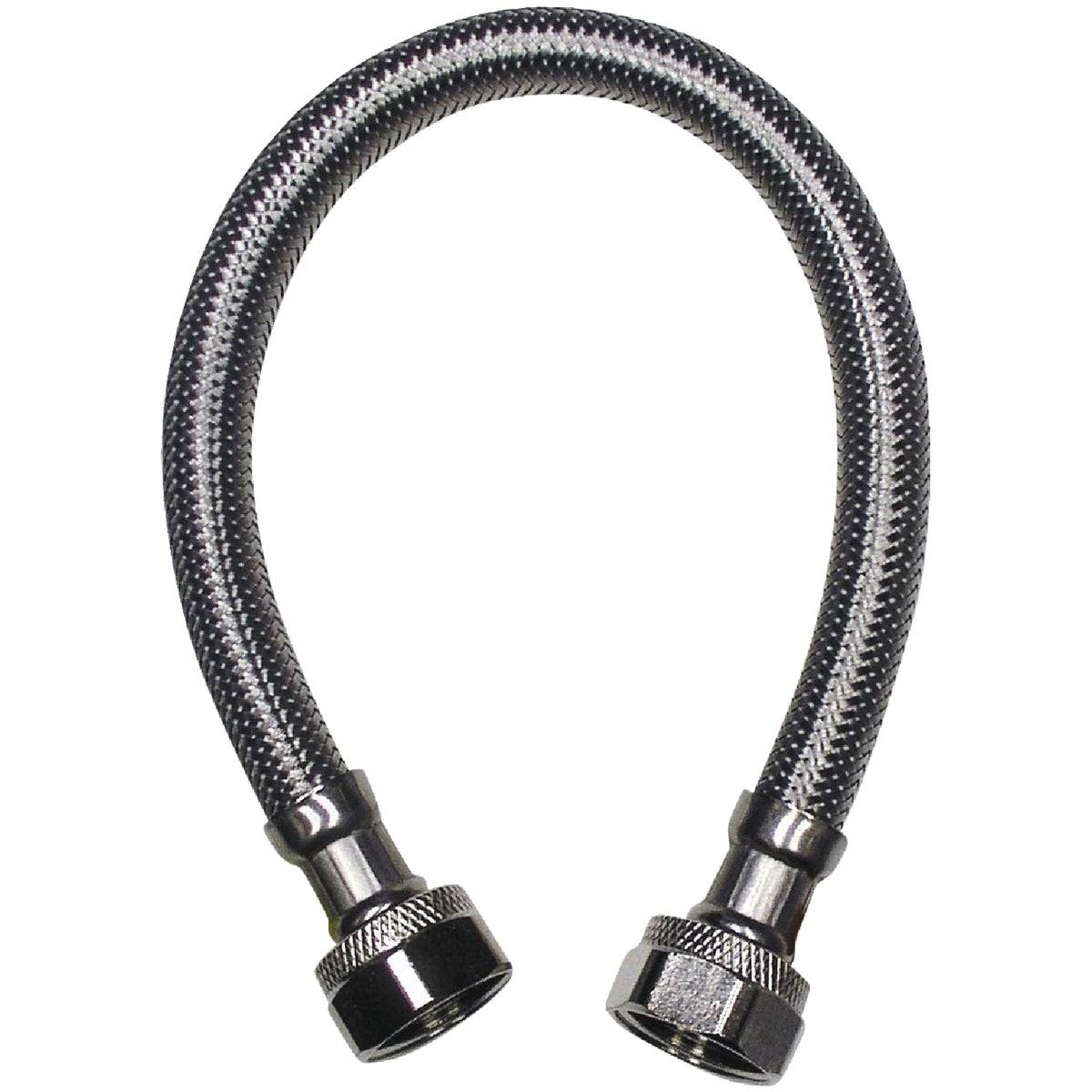

The BK 496-061 is a braided stainless steel faucet supply connector designed for water supply connections between shutoff valves and faucet inlets. It features a 1/2-inch female iron pipe (FIP) fitting on one end and a 1/2-inch compression fitting on the other, with an overall length of 12 inches. The core is virgin PVC reinforced with polyester yarn braiding, over-braided with Type 304 stainless steel for strength and corrosion resistance. Chrome-plated brass hex nuts and washers provide a dependable hand-tight seal without the need for tools. Rated to a maximum pressure of 125 psi and a maximum temperature of 180 degrees F.

The BK 496-061 is suited for residential, commercial, and industrial water supply applications. It connects faucets, lavatory fixtures, and other plumbing fixtures to standard shutoff valves where a flexible supply line is required. Its flexible construction makes it easy to route in tight under-sink spaces, and the stainless steel braid provides protection against abrasion and accidental kinking during or after installation.

Key Features

• Type 304 stainless steel braid over reinforced polyester yarn and virgin PVC core
• Chrome-plated brass hex nuts with washers for a hand-tight, leak-resistant seal
• Maximum working pressure of 125 psi
• Maximum operating temperature of 180 degrees F
• IAPMO listed for residential, commercial, and industrial water supply use
• 1/2-inch FIP x 1/2-inch compression end connections

Compatibility

Approved for residential, commercial, and industrial water supply connections to fixtures. IAPMO listed. Suitable for use with standard 1/2-inch shutoff valves and faucet inlets requiring a compression supply connection.

Installation Notes

Installation is typically performed by a licensed plumber or experienced DIYer following local plumbing code requirements. Shut off the water supply and relieve line pressure before disconnecting any existing supply line. Hand-tighten the connector nuts to seat the washers, then verify for leaks before returning the supply to full pressure. Avoid over-tightening, which can crack the brass nuts or distort the sealing washer.

Technical Specifications

• Inlet Connection: 1/2 inch FIP
• Outlet Connection: 1/2 inch Compression
• Length: 12 inches
• Maximum Pressure: 125 psi
• Maximum Temperature: 180 degrees F
• Braid Material: Type 304 Stainless Steel
• Core Material: Virgin PVC with polyester yarn braiding
• Nut Material: Chrome-plated brass
• Certification: IAPMO listed
• Weight: 0.21 pounds

Standard Information

• Brand: BK
• Manufacturer Part Number: 496-061
