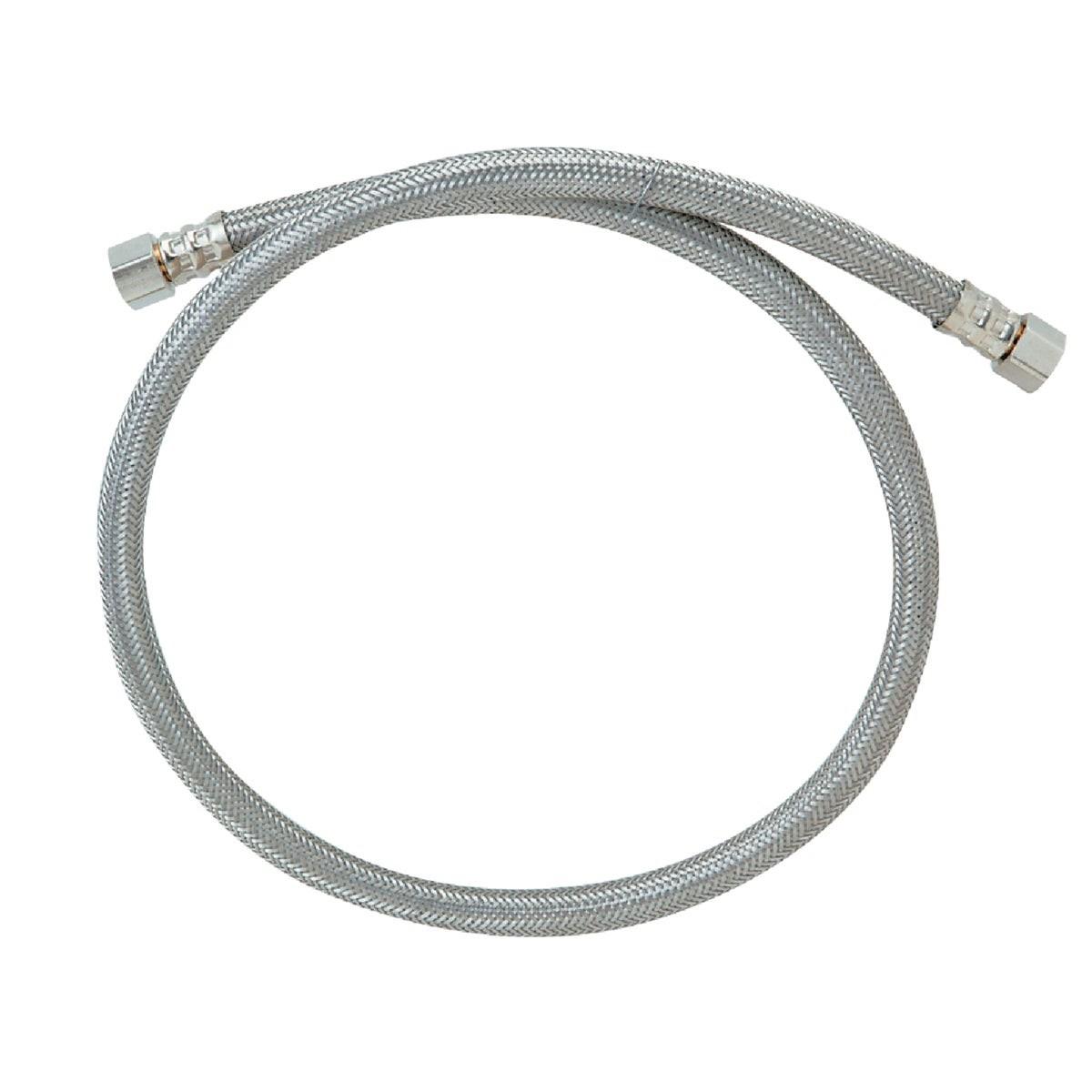

Bk 496-036 Stainless Steel Faucet Connector 36 In.

Product Description

The BK 496-036 is a braided stainless steel faucet connector designed for water supply connections to plumbing fixtures in residential, commercial, and industrial settings. The core is virgin PVC reinforced with polyester yarn braiding, then over-braided with 304 stainless steel for strength and flexibility. Chrome-plated brass hex connector nuts and washers provide a dependable hand-tight seal at both ends. The connector is rated to a maximum working pressure of 125 psi and a maximum temperature of 180 degrees F, making it suitable for a wide range of hot and cold water supply applications. Licensed plumbers and qualified tradespeople install this type of fitting as part of fixture rough-in and finish work.

The 496-036 connects 3/8 inch compression fittings on both ends and measures 36 inches in length. It is appropriate for use at sinks, lavatories, toilets, and similar fixtures where a flexible supply line is required. The IAPMO listing confirms compliance with recognized plumbing standards, and the connector is approved for residential, commercial, and industrial water supply installations. Its flexible construction allows routing around obstructions in tight cabinet or vanity spaces without stressing connection points.

Key Features

• 304 stainless steel over-braid provides corrosion resistance and mechanical protection
• Virgin PVC core with polyester yarn reinforcement for flexibility and durability
• Chrome-plated brass hex nuts and washers for a hand-tight, leak-resistant seal
• Rated to 125 psi maximum working pressure
• Rated to 180 degrees F maximum temperature
• IAPMO listed for residential, commercial, and industrial water supply use

Compatibility

Designed for use with 3/8 inch compression inlet and outlet connections on standard plumbing fixtures including sinks, lavatories, and similar water supply applications in residential, commercial, and industrial installations.

Installation Notes

Installation is typically performed by a licensed plumber during fixture rough-in or finish work. Shut off the water supply and relieve line pressure before disconnecting or connecting supply lines. Hand-tighten the brass nuts to seat the washers, then confirm for leaks before returning the supply to service. Avoid using pipe wrenches or excessive torque on the brass nuts, as overtightening can crack the fitting or damage the washer seat.

Technical Specifications

• Connection Type: 3/8 inches Compression x 3/8 inches Compression
• Length: 36 inches
• Braid Material: 304 Stainless Steel
• Core Material: Virgin PVC with polyester yarn braiding
• Nut Material: Chrome-plated brass
• Maximum Pressure: 125 psi
• Maximum Temperature: 180 degrees F
• Weight: 0.425 pounds
• Certification: IAPMO Listed

Standard Information

• Brand: BK
• Manufacturer Part Number: 496-036
