Bk 496-035 Stainless Steel Faucet Connector 30 in

Product Description

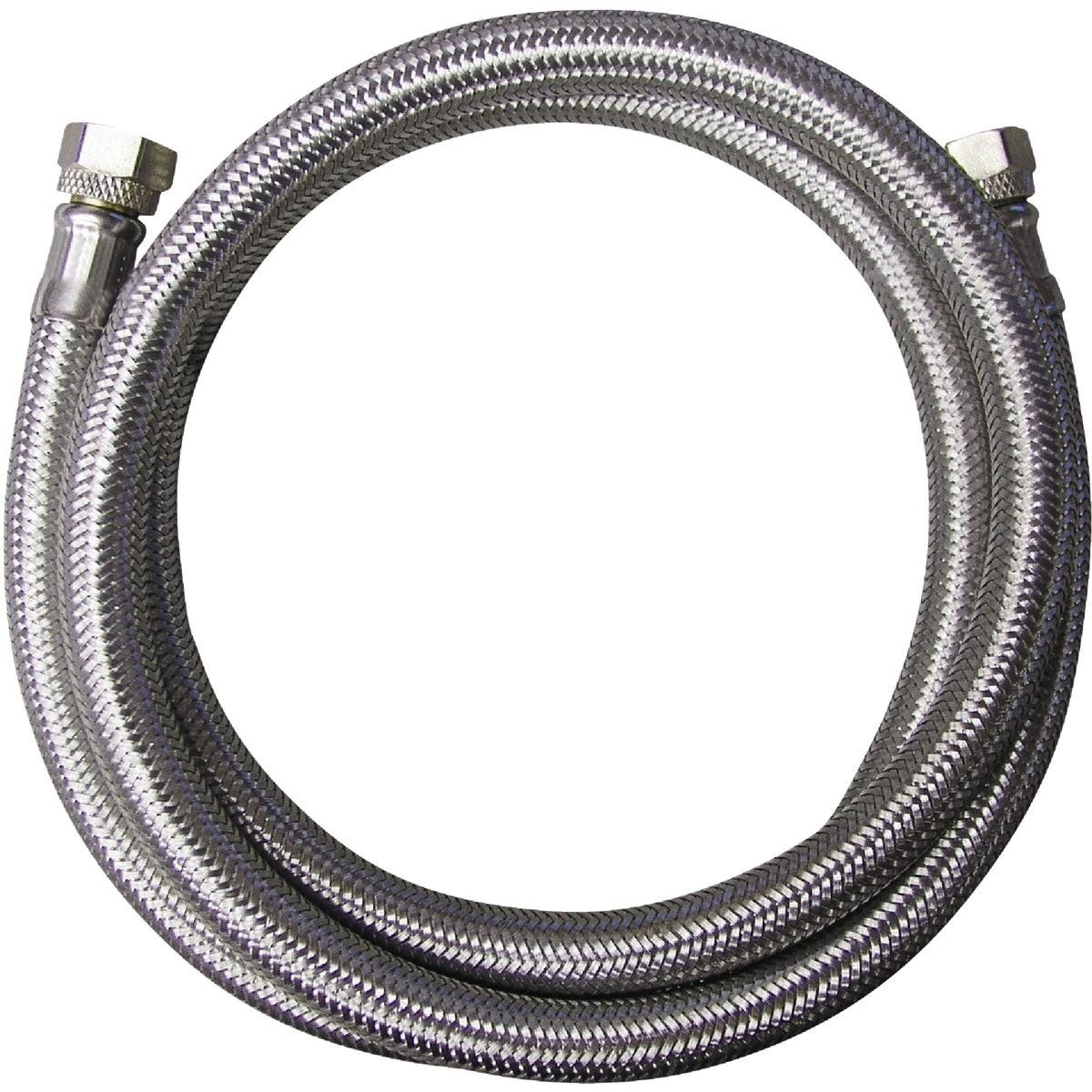

The BK 496-035 is a braided stainless steel faucet connector designed for water supply connections to plumbing fixtures in residential, commercial, and industrial settings. The core is virgin PVC reinforced with polyester yarn braiding, over-braided with 304 stainless steel for added strength. Chrome-plated brass hex nuts and washers deliver a dependable hand-tight seal without requiring tools. The connector is rated to a maximum temperature of 180 degrees F and a maximum working pressure of 125 psi, making it suitable for standard domestic and light commercial water supply lines. IAPMO listing confirms it meets recognized plumbing standards.

This connector is suited for use wherever a flexible supply line is needed between a shutoff valve and a faucet, toilet, or similar fixture. The 3/8 inch compression inlet and 3/8 inch compression outlet fittings are a common configuration on lavatory and kitchen faucet supply stops. At 30 inches in length, it accommodates standard under-sink cabinet depths and provides routing flexibility during installation. Plumbers and pipefitters working on new construction, renovation, or fixture replacement will find this a straightforward, code-acceptable supply connection.

Key Features

• 304 stainless steel outer braid over polyester yarn and virgin PVC core for durability
• Chrome-plated brass hex connector nuts and washers included for a hand-tight seal
• Rated to 125 psi maximum working pressure
• Maximum operating temperature of 180 degrees F
• IAPMO listed for residential, commercial, and industrial water supply applications
• 3/8 inch compression x 3/8 inch compression end connections, 30 inch overall length

Compatibility

Approved for residential, commercial, and industrial water supply connections to fixtures. Suitable for use with standard 3/8 inch compression shutoff valves and faucet inlets.

Installation Notes

Installation is typically performed by a licensed plumber. Shut off the water supply at the stop valve and relieve line pressure before disconnecting any existing supply line. Hand-tighten the brass nuts fully before applying a final quarter-turn with an appropriately sized wrench — do not overtighten, as this can damage the brass nut or ferrule seat. Verify all connections are leak-free before returning the system to service and confirm the installation complies with applicable local plumbing codes and IPC requirements.

Technical Specifications

• Inlet Connection: 3/8 inches compression
• Outlet Connection: 3/8 inches compression
• Length: 30 inches
• Maximum Pressure: 125 psi
• Maximum Temperature: 180 degrees F
• Core Material: Virgin PVC with polyester yarn braiding
• Outer Braid Material: Stainless steel 304
• Nut Material: Chrome-plated brass
• Certification: IAPMO listed
• Weight: 0.38 pounds

Standard Information

• Brand: BK
• Manufacturer Part Number: 496-035
