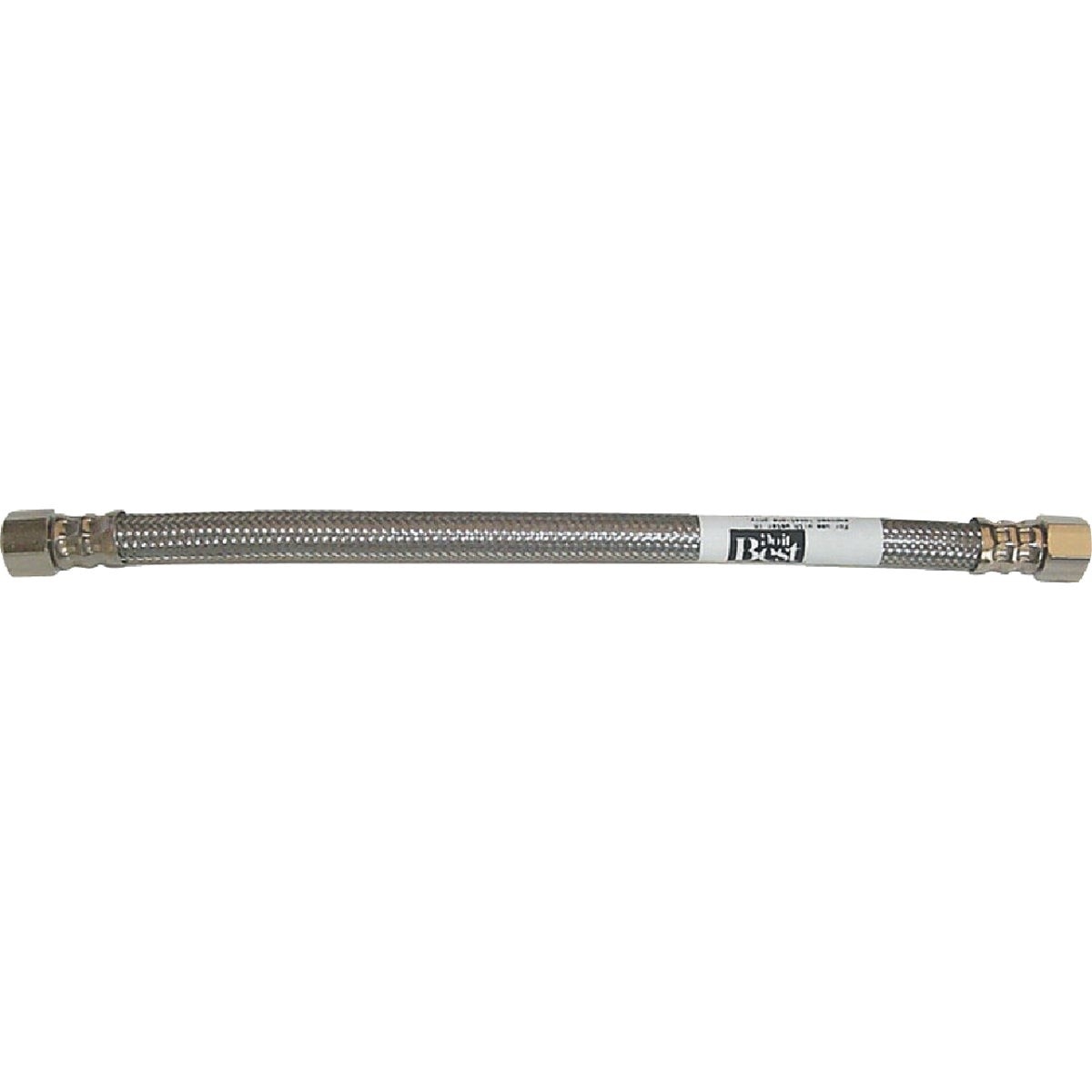

Bk 496-032 Stainless Steel Faucet Connector 16 in

Product Description

The BK 496-032 is a braided stainless steel faucet connector designed for water supply connections between shutoff valves and plumbing fixtures. It features a virgin PVC core wrapped in polyester yarn braiding, then over-braided with 304 stainless steel for added strength. Chrome-plated brass hex nuts and washers provide a dependable hand-tight seal at both ends. Rated to a maximum pressure of 125 psi and a maximum temperature of 180 degrees F, this connector is approved for residential, commercial, and industrial water supply applications. Licensed plumbers and pipefitters install this connector as a standard fixture supply line.

This connector is suited for use in residential, commercial, and industrial settings wherever a flexible water supply line is needed to connect a shutoff valve to a faucet or fixture. The 3/8 inch compression by 3/8 inch compression configuration fits common shutoff valve and fixture supply ports. At 16 inches in length, it accommodates standard under-sink and countertop fixture installations. The IAPMO listing confirms compliance with recognized plumbing standards for water supply applications.

Key Features

• 304 stainless steel over-braid for corrosion resistance and mechanical strength
• Virgin PVC core with polyester yarn reinforcement layer
• Chrome-plated brass hex nuts and washers for a hand-tight seal
• Rated to 125 psi maximum working pressure
• Maximum operating temperature of 180 degrees F
• IAPMO listed for residential, commercial, and industrial water supply use

Compatibility

Designed as a standard replacement or new-installation flexible supply line for faucets and plumbing fixtures with 3/8 inch compression inlet and outlet connections in residential, commercial, and industrial water supply systems.

Installation Notes

Installation is performed by a licensed plumber or qualified tradesperson. Shut off the water supply and relieve line pressure before removing the existing connector or making any new connections. Hand-tighten the brass hex nuts, then snug with a wrench — do not overtighten, as this can crack the fitting or distort the washer seal. Verify no leaks are present before returning the supply valve to full service.

Technical Specifications

• Connection Type: 3/8 inches Compression x 3/8 inches Compression
• Length: 16 inches
• Maximum Pressure: 125 psi
• Maximum Temperature: 180 degrees F
• Braid Material: 304 Stainless Steel
• Core Material: Virgin PVC with Polyester Yarn Braiding
• Nut Material: Chrome-Plated Brass
• Certification: IAPMO Listed
• Weight: 0.218 pounds
• Application: Residential, Commercial, Industrial Water Supply

Standard Information

• Brand: BK
• Manufacturer Part Number: 496-032
