Bk 496-031 Stainless Steel Faucet Connector 12 In.

Product Description

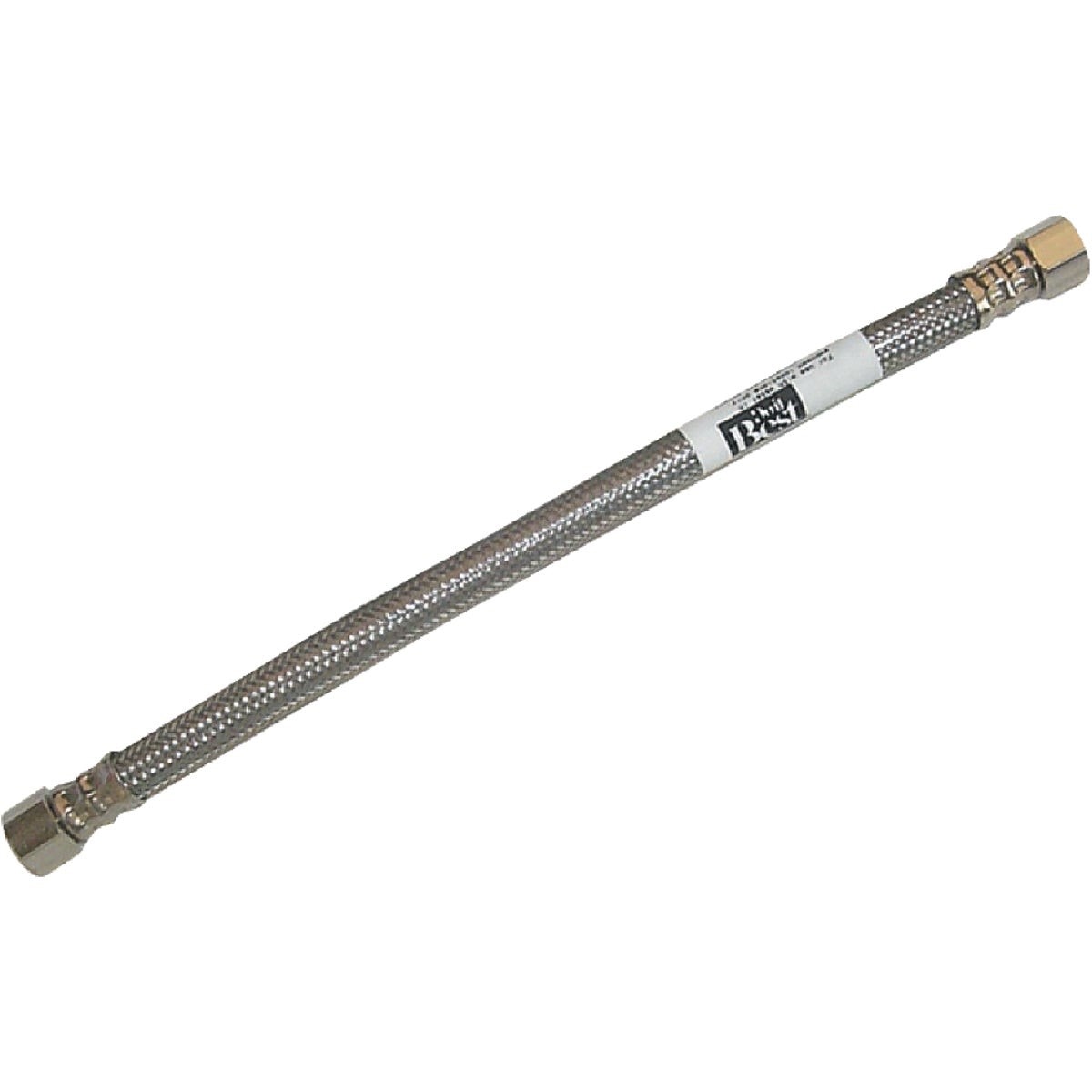

The BK 496-031 is a braided stainless steel faucet connector designed for water supply connections to plumbing fixtures in residential, commercial, and industrial installations. The core is virgin PVC reinforced with polyester yarn braiding, then over-braided with Type 304 stainless steel for strength and long service life. Chrome-plated brass hex nuts and washers provide a dependable hand-tight seal without the need for thread sealant on the connection ends. Rated to a maximum temperature of 180 degrees F and a maximum pressure of 125 psi, this connector meets the demands of typical potable water supply applications.

This connector is sized 3/8 inch compression on both ends and measures 12 inches in length, making it a standard fit for connecting shutoff valves to faucets and similar fixtures under kitchen and bathroom sinks. It is suited for new construction, renovation, and fixture replacement work performed by licensed plumbers and experienced DIYers. IAPMO listing confirms it meets recognized plumbing and mechanical code requirements for water supply connectors.

Key Features

• Type 304 stainless steel over-braid for corrosion resistance and mechanical strength
• Virgin PVC core with polyester yarn reinforcement layer
• Chrome-plated brass hex nuts and washers for a reliable hand-tight seal
• Rated to 180 degrees F and 125 psi maximum working pressure
• IAPMO listed for residential, commercial, and industrial water supply use
• 3/8 inch compression x 3/8 inch compression, 12-inch length for standard fixture supply runs

Compatibility

Designed as an OEM-style replacement or new-installation supply connector for plumbing fixtures requiring a 3/8 inch compression inlet connection, including faucets and similar water supply fixtures in potable water systems.

Installation Notes

Installation is performed by a licensed plumber or qualified tradesperson in accordance with local plumbing codes and IAPMO-referenced standards. Shut off the water supply at the fixture stop valve and relieve line pressure before disconnecting any existing connector. Hand-tighten the brass nuts onto the compression fittings, then snug with a wrench — avoid over-tightening, which can crack the nut or distort the compression seat. Inspect for leaks at both ends after restoring supply pressure.

Technical Specifications

• End Connections: 3/8 inches compression x 3/8 inches compression
• Length: 12 inches
• Maximum Temperature: 180 degrees F
• Maximum Pressure: 125 psi
• Core Material: Virgin PVC with polyester yarn braiding
• Outer Braid Material: Type 304 stainless steel
• Nut Material: Chrome-plated brass
• Weight: 0.21 pounds
• Certification: IAPMO listed

Standard Information

• Brand: BK
• Manufacturer Part Number: 496-031
