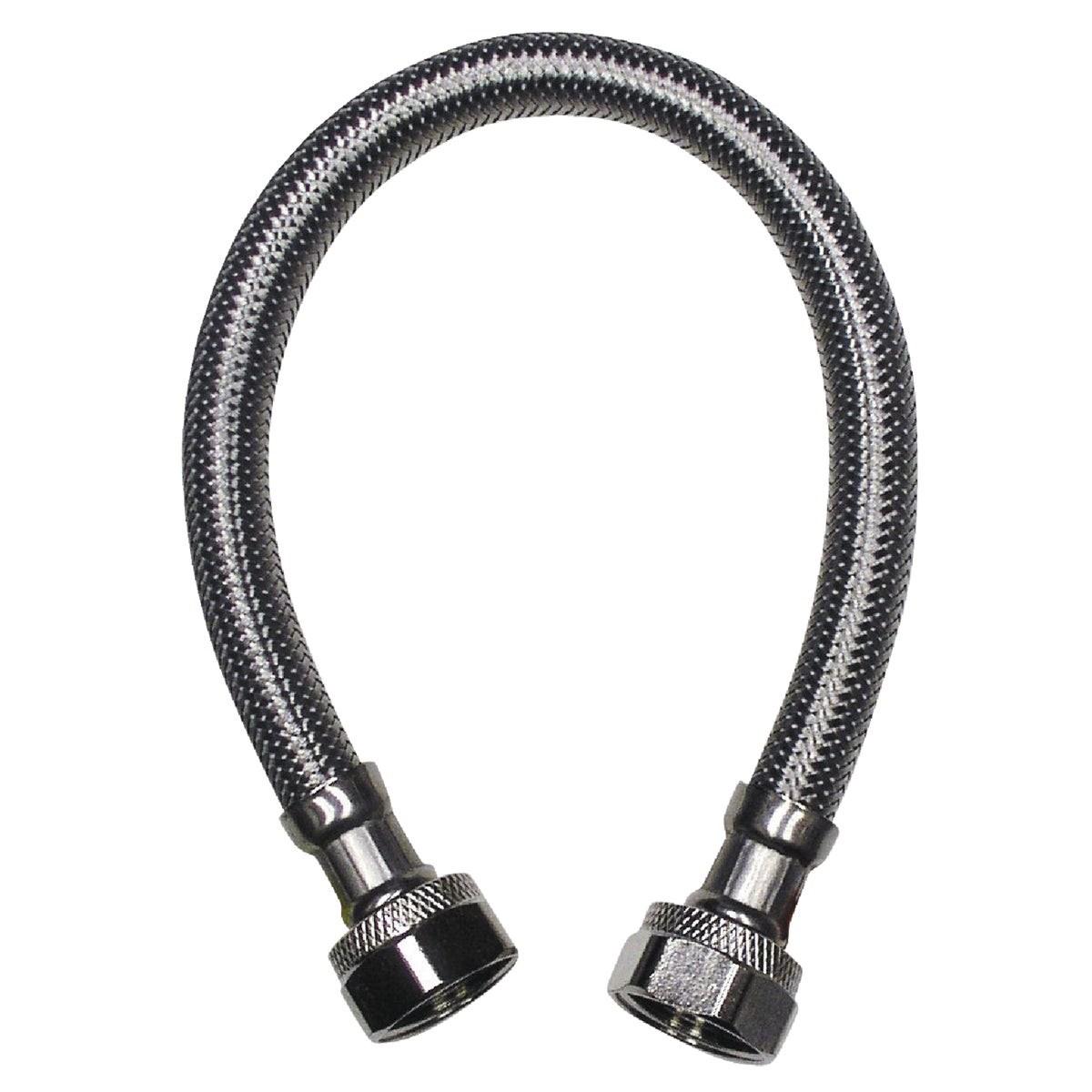

Bk 496-018 Stainless Steel Faucet Connector 60 Inch

Product Description

The BK 496-018 is a braided stainless steel faucet connector designed to supply water from a shutoff valve to a faucet or fixture. The core is virgin PVC reinforced with polyester yarn braiding, then over-braided with Type 304 stainless steel for burst resistance and long service life. Chrome-plated brass hex nuts and integrated washers provide a dependable hand-tight seal without the need for thread sealant on the seat end. Rated to a maximum of 180 degrees F and 125 psi, this connector is suited for both hot and cold supply lines. It is installed by licensed plumbers and qualified tradespeople in residential, commercial, and industrial settings.

This connector is used on standard water supply connections to faucets and plumbing fixtures wherever a 1/2 inch female iron pipe connection is required at both ends. The 60 inch length accommodates installations where the shutoff valve is set back from the fixture supply shank, including undercabinet rough-in conditions with limited access. It carries IAPMO listing, making it acceptable under most local plumbing codes for potable water supply applications.

Key Features

• Type 304 stainless steel over-braid provides corrosion resistance and mechanical protection
• Virgin PVC core with polyester yarn reinforcement layer for pressure integrity
• Chrome-plated brass hex nuts with washers for a hand-tight, leak-resistant seal
• Rated to 125 psi maximum working pressure and 180 degrees F maximum temperature
• IAPMO listed for residential, commercial, and industrial potable water supply use
• 60 inch length suits longer runs between shutoff valve and fixture

Compatibility

Designed for standard 1/2 inch female iron pipe faucet and fixture supply connections in residential, commercial, and industrial plumbing systems where a braided stainless steel water supply connector is specified.

Installation Notes

Shut off the water supply at the main or branch valve and relieve line pressure before disconnecting the existing supply line. Hand-tighten the brass nuts onto the shutoff valve outlet and fixture supply shank, then snug with an adjustable wrench — avoid over-torquing, which can crack the nut seat. Inspect the integrated washer at each end before assembly and do not use pipe dope or tape on the female nut seat. Installation must comply with applicable local plumbing codes; IAPMO listing supports acceptance under IPC and UPC jurisdictions.

Technical Specifications

• Connection Size: 1/2 inch x 1/2 inch Female Iron Pipe
• Length: 60 inches
• Braid Material: Type 304 stainless steel over polyester yarn reinforced virgin PVC core
• Nut Material: Chrome-plated brass
• Maximum Pressure: 125 psi
• Maximum Temperature: 180 degrees F
• Certification: IAPMO listed
• Weight: 0.725 pounds

Standard Information

• Brand: BK
• Manufacturer Part Number: 496-018
