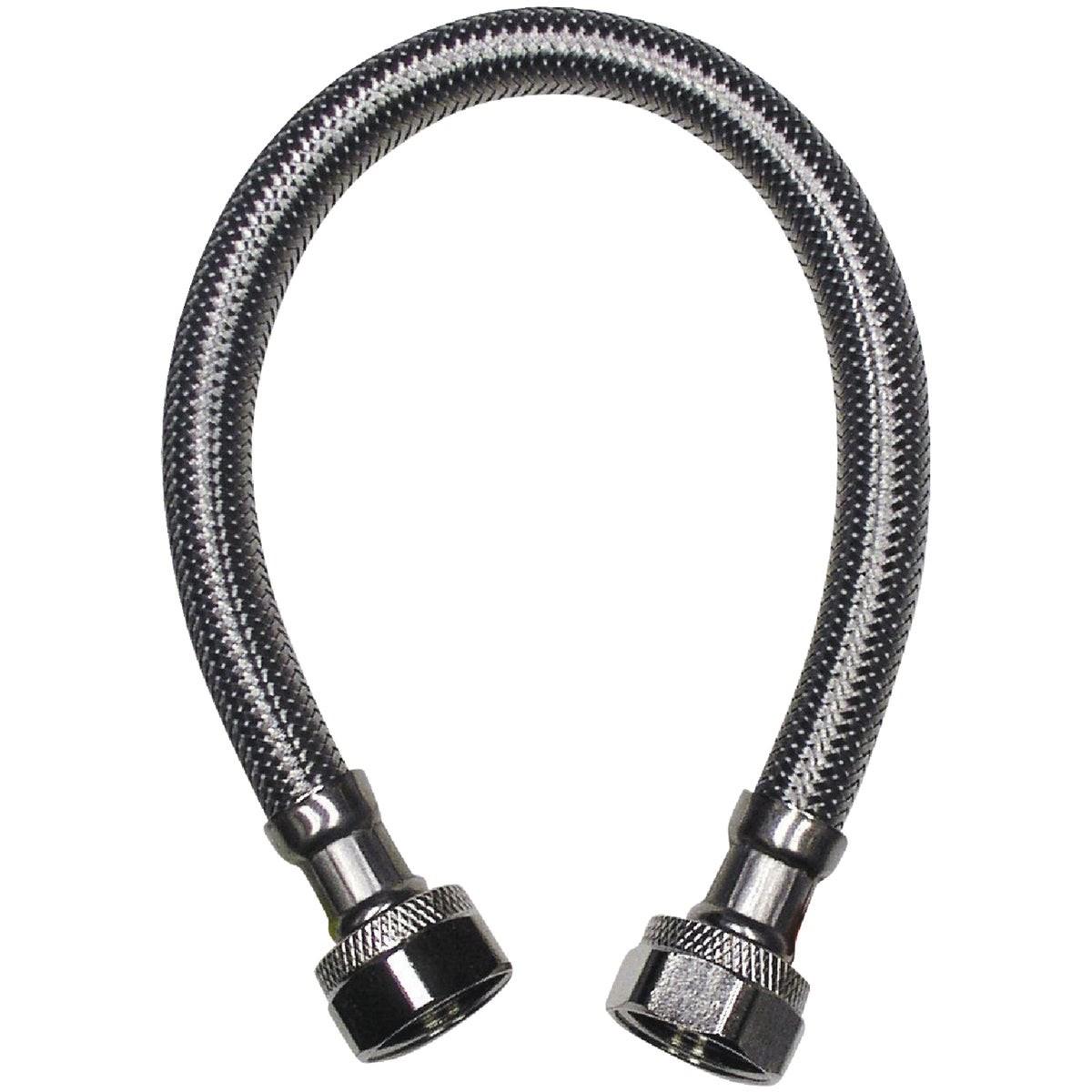

Bk 496-013 Stainless Steel Faucet Connector 20 Inch

Product Description

The BK 496-013 is a braided stainless steel faucet connector designed for water supply connections to plumbing fixtures. The core is virgin PVC reinforced with polyester yarn braiding, over-braided with 304 stainless steel for tensile strength and corrosion resistance. Chrome-plated brass hex nuts and pre-installed washers allow a dependable hand-tight seal without additional tools. Rated to a maximum temperature of 180 degrees F and a maximum working pressure of 125 psi, this connector handles the demands of standard residential, commercial, and industrial potable water supply lines. Plumbers and pipefitters install this connector when making final supply connections to faucets, lavatory sinks, and similar fixtures.

The 496-013 is suited for residential, commercial, and industrial water supply applications. At 20 inches in length, it accommodates typical under-sink rough-in distances where flexibility and reach matter. Both end connections are 1/2 inch female, making it a direct fit for standard supply stops and faucet inlet shanks. Its IAPMO listing confirms it meets applicable plumbing code requirements for potable water service, making it an accepted choice in jurisdictions that require listed materials for supply connections.

Key Features

• 304 stainless steel over-braid provides corrosion resistance and mechanical protection for the inner PVC core
• Chrome-plated brass hex nuts with washers for a reliable hand-tight seal
• Rated to 125 psi maximum working pressure
• Rated to 180 degrees F maximum operating temperature
• IAPMO listed for residential, commercial, and industrial potable water supply use
• 20 inch length with 1/2 inch FIP x 1/2 inch FIP connections

Compatibility

Designed as an OEM-style replacement or new-installation connector for standard 1/2 inch female inlet faucets and plumbing fixtures in residential, commercial, and industrial water supply applications.

Installation Notes

Installation is typically performed by a licensed plumber in accordance with local plumbing codes and IAPMO-referenced standards. Shut off the water supply at the stop valve and relieve line pressure before disconnecting or installing any supply connector. Hand-tighten the brass nuts fully before applying a final quarter-turn with pliers or a basin wrench — do not overtighten, as excessive force can damage the brass threads or crush the washer seal. Inspect the connection for leaks after restoring water pressure.

Technical Specifications

• Connection Size: 1/2 inch x 1/2 inch
• Connection Type: Female x Female
• Length: 20 inches
• Braid Material: 304 Stainless Steel
• Core Material: Virgin PVC with polyester yarn braiding
• Nut Material: Chrome-plated brass
• Maximum Temperature: 180 degrees F
• Maximum Pressure: 125 psi
• Listing: IAPMO
• Weight: 0.3 pounds

Standard Information

• Brand: BK
• Manufacturer Part Number: 496-013
