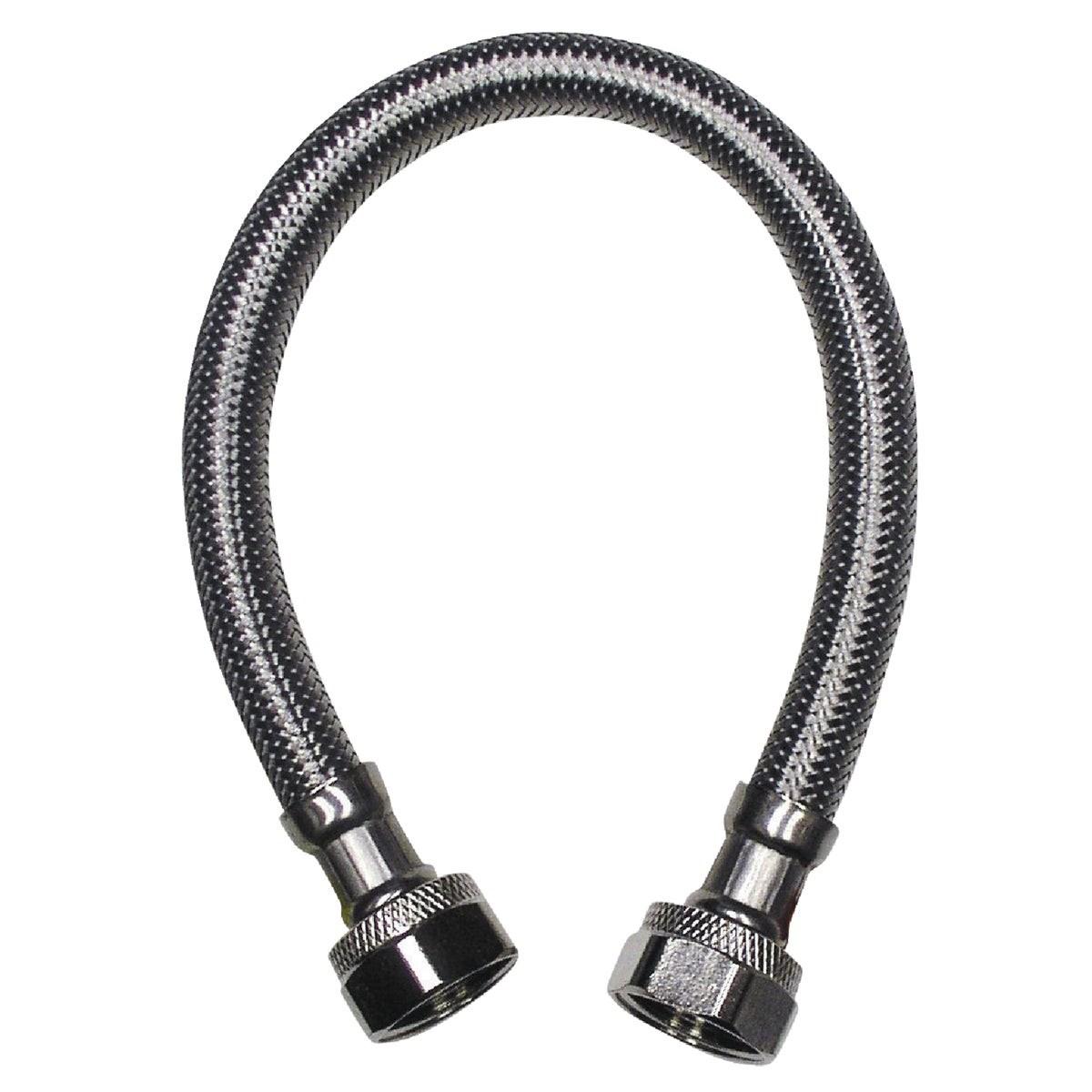

Bk 496-011DIB Stainless Steel Faucet Connector 12 In.

Product Description

The BK 496-011DIB is a 12-inch braided stainless steel faucet connector designed for water supply connections between shut-off valves and plumbing fixtures. It features a virgin PVC core wrapped in polyester yarn braiding, over-braided with 304 stainless steel for added strength. Chrome-plated brass hex connector nuts on both ends provide a dependable hand-tight seal. Both connection ends are 1/2-inch female. Rated to a maximum temperature of 180 degrees F and a maximum pressure of 125 psi, this connector is IAPMO listed and approved for residential, commercial, and industrial water supply applications. Licensed plumbers and experienced installers are the primary end users.

This faucet connector is suited for water supply hookups to sinks, faucets, and similar fixtures in residential kitchens, bathrooms, commercial kitchens, and light industrial settings. The 12-inch length accommodates standard under-sink rough-in distances. The braided stainless steel exterior resists kinking and mechanical damage during and after installation, making it a reliable choice in tight under-sink cabinet environments.

Key Features

• 304 stainless steel over-braid provides corrosion resistance and mechanical strength
• Virgin PVC core with polyester yarn braiding for flexible, durable flow path
• Chrome-plated brass hex nuts with washers for a secure hand-tight connection
• Rated to 125 psi maximum working pressure
• Rated to 180 degrees F maximum operating temperature
• IAPMO listed for residential, commercial, and industrial water supply use

Compatibility

Designed as an OEM-style replacement or new-installation faucet connector for standard 1/2-inch female threaded water supply shut-off valves and fixture inlets in residential, commercial, and industrial plumbing systems.

Installation Notes

Installation is performed by licensed plumbers or qualified installers following applicable IPC and local plumbing code requirements. Shut off the water supply at the main or fixture shut-off valve and relieve line pressure before disconnecting or installing any supply connector. Hand-tighten the brass nuts fully before applying a final quarter-turn snug with pliers — do not overtighten, as over-torquing can crack the brass nuts or damage the washer seat. Inspect for leaks at both connections after restoring water supply pressure.

Technical Specifications

• Connection Size: 1/2 inch x 1/2 inch female
• Length: 12 inches
• Braid Material: 304 Stainless Steel
• Core Material: Virgin PVC with polyester yarn braiding
• Nut Material: Chrome-plated brass
• Maximum Pressure: 125 psi
• Maximum Temperature: 180 degrees F
• Certification: IAPMO listed
• Weight: 0.225 pounds

Standard Information

• Brand: BK
• Manufacturer Part Number: 496-011DIB
