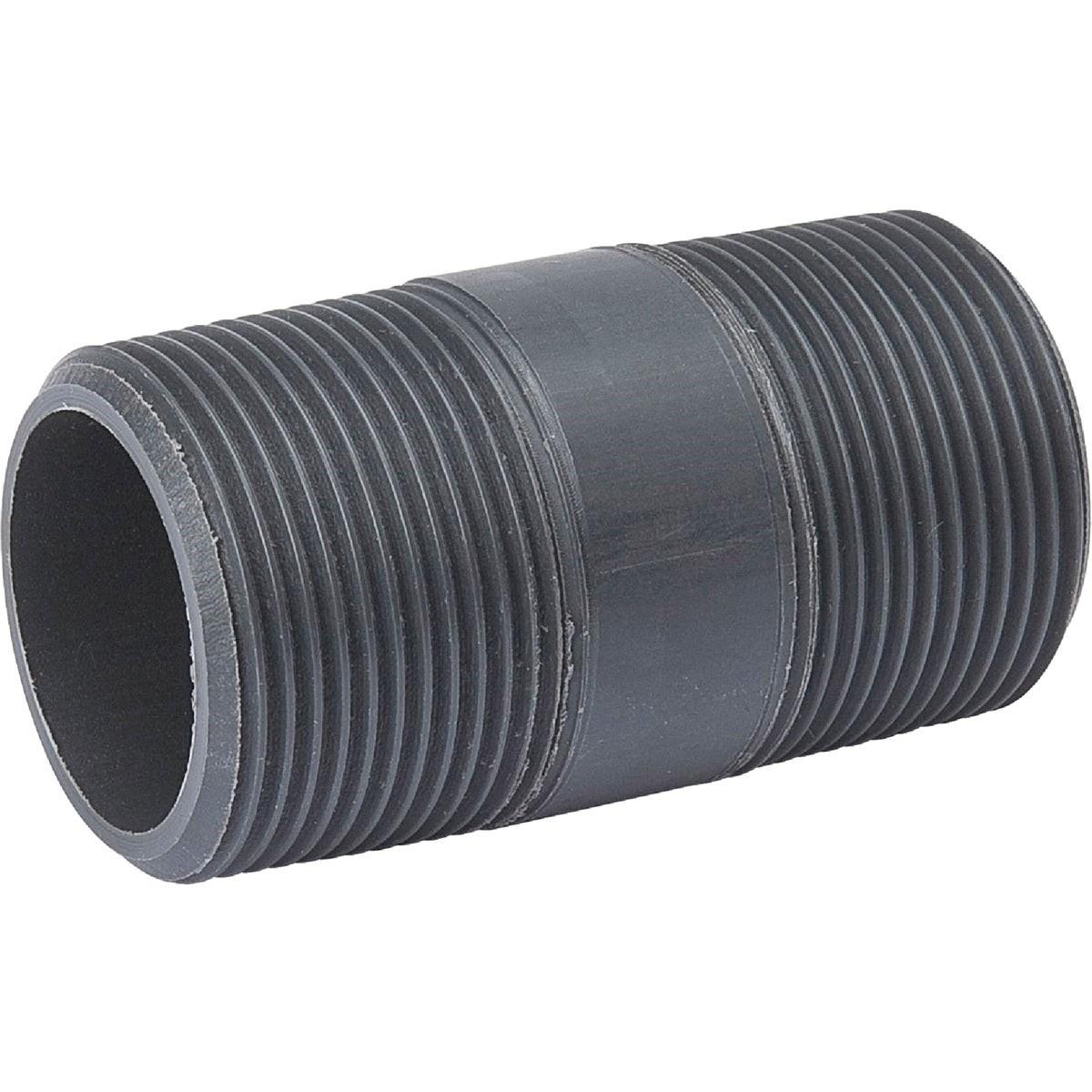

Bk 408-001 Schedule 80 Pvc Nipple 2 in Close

Product Description

The BK 408-001 is a close-length, Schedule 80 PVC nipple threaded to NPT standards for use in pressurized piping systems handling water and compatible liquids. Schedule 80 wall thickness provides greater pressure ratings and impact resistance compared to Schedule 40, making it a reliable choice in demanding installations. The nipple is IPS-dimensioned and meets ASTM D1785 specifications. It is sized at 2 inches nominal pipe size. Licensed plumbers and pipefitters install this fitting in residential and light commercial systems where a short, fully threaded nipple is required to connect adjacent fittings or equipment.

This nipple is suited for water supply, irrigation, industrial fluid transport, and similar wet-service applications. The close-length configuration provides minimal standoff between two threaded connections, which is useful in tight manifold assemblies or equipment tie-ins. Pipe thread compound or sealing tape must be applied to the threaded portion before assembly to ensure a leak-free joint. It is not rated for use with compressed air, gas, or fluids outside the chemical compatibility range of PVC.

Key Features

• Schedule 80 wall thickness for higher pressure ratings versus Schedule 40
• Close-length configuration minimizes spacing between fittings
• NPT threads conform to IPS dimensional standards
• Meets ASTM D1785 specification for PVC pressure-rated pipe
• Suitable for water and compatible liquid transport applications

Compatibility

Designed as an OEM-style replacement or standard component for 2-inch NPT-threaded PVC piping systems built to IPS dimensional standards.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable IPC or local plumbing code requirements. Shut off and depressurize the system before removing or installing any threaded fitting. Apply pipe thread compound or PTFE sealing tape to all male threads before assembly. Do not overtighten PVC fittings, as excessive torque can crack the fitting body or damage threads.

Technical Specifications

• Nominal Pipe Size: 2 inches
• Schedule: 80
• Thread Standard: NPT (National Pipe Thread)
• Pipe Sizing Standard: IPS (Iron Pipe Size)
• Length Type: Close (CL)
• Material: PVC
• ASTM Standard: D1785
• Weight: 0.134 pounds
• Sold As: Each

Standard Information

• Brand: BK
• Manufacturer Part Number: 408-001
