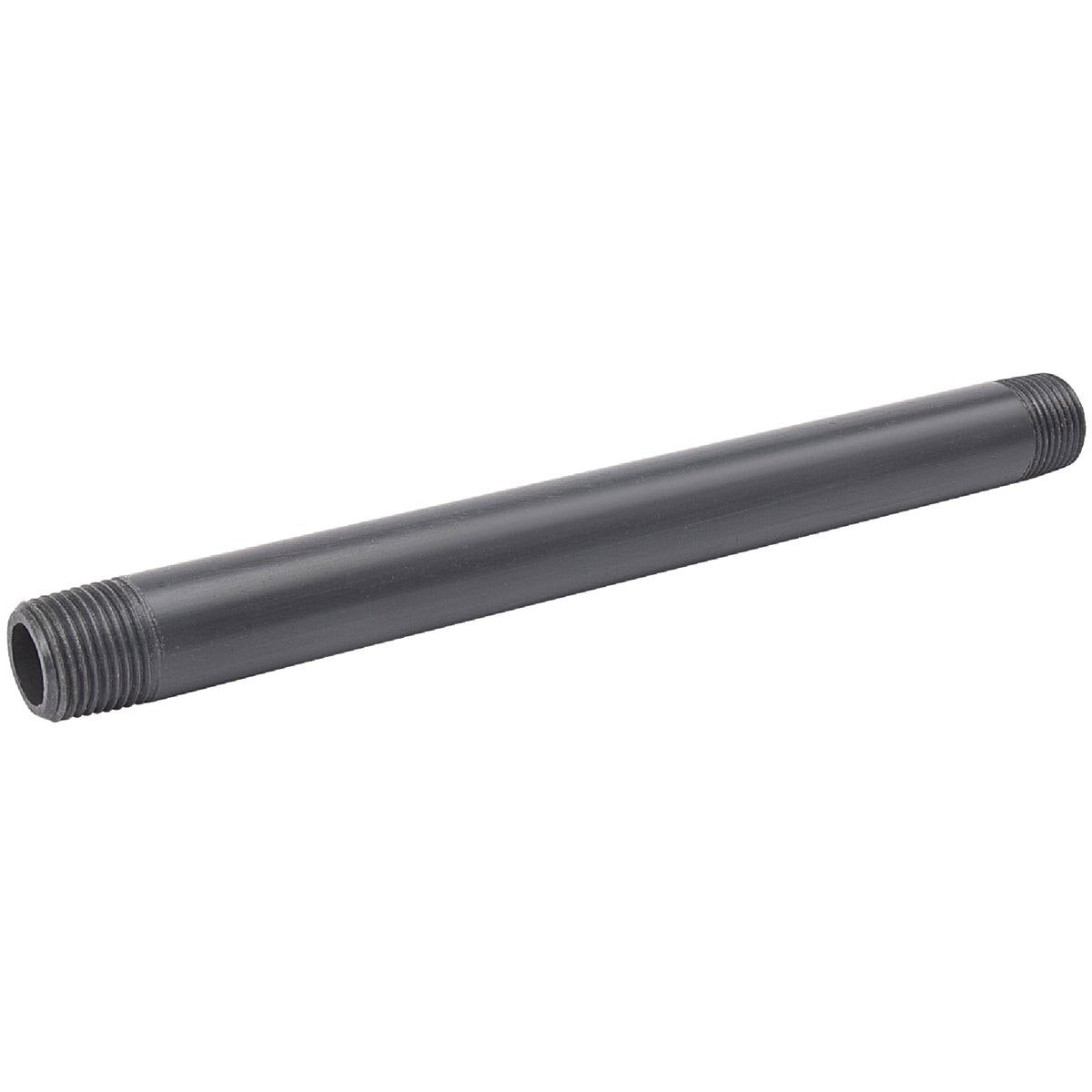

Bk 403-060 Schedule 80 Pvc Nipple 1/2 in X 6 in Npt

Product Description

The BK 403-060 is a Schedule 80 PVC threaded nipple sized at 1/2 inch by 6 inches, designed for the transport of water and other compatible liquids in pressurized pipe systems. Manufactured to IPS (iron pipe size) dimensions and threaded to NPT (National Pipe Taper Thread) standards, this nipple meets ASTM D1785 specifications for Schedule 80 PVC pressure pipe components. The heavier wall thickness of Schedule 80 construction provides greater pressure ratings and mechanical strength compared to Schedule 40, making it a reliable choice for demanding service conditions. Plumbers and pipefitters install this nipple using standard pipe thread compound or PTFE sealing tape applied to the threaded portion before assembly.

This nipple suits a broad range of plumbing, irrigation, industrial, and chemical-handling applications where PVC is an appropriate material choice. Its NPT threading allows direct connection to standard fittings, valves, and pipe in residential and light commercial systems. The 1/2 inch diameter and 6 inch length make it well suited for branch connections, equipment connections, and close-quarter piping runs where a specific extension length is required. Pipe thread compound or sealing tape must be applied to threads prior to installation to ensure a leak-free joint.

Key Features

• Schedule 80 PVC construction meets ASTM D1785 specifications for pressure-rated pipe components
• IPS dimensioning with NPT threading for compatibility with standard fittings and valves
• 1/2 inch nominal diameter by 6 inch length for precise extension and branch applications
• Heavier wall thickness versus Schedule 40 for increased pressure and impact resistance
• Suitable for water and other liquids compatible with PVC in plumbing and industrial systems

Compatibility

Designed as a standard IPS/NPT-threaded Schedule 80 PVC nipple for use with NPT-compatible PVC fittings, valves, and pipe in 1/2 inch nominal plumbing and piping systems.

Installation Notes

Installation is performed by licensed plumbers or qualified pipefitters following applicable IPC and local plumbing code requirements. Always apply pipe thread compound or PTFE sealing tape to the male threads before making up the joint. Do not overtighten PVC threaded connections, as the material is susceptible to cracking under excessive torque. Shut off and depressurize the system completely before removing or installing any threaded nipple.

Technical Specifications

• Nominal Size: 1/2 inch
• Length: 6 inches
• Schedule: Schedule 80
• Material: PVC
• Thread Standard: NPT (National Pipe Taper Thread)
• Pipe Sizing Standard: IPS (Iron Pipe Size)
• ASTM Standard: D1785
• Weight: 0.094 pounds
• UPC: 00032888990081

Standard Information

• Brand: BK
• Manufacturer Part Number: 403-060
