Bk 160-807 Galvanized Pipe Repair Clamp 1-1/2 in

Product Description

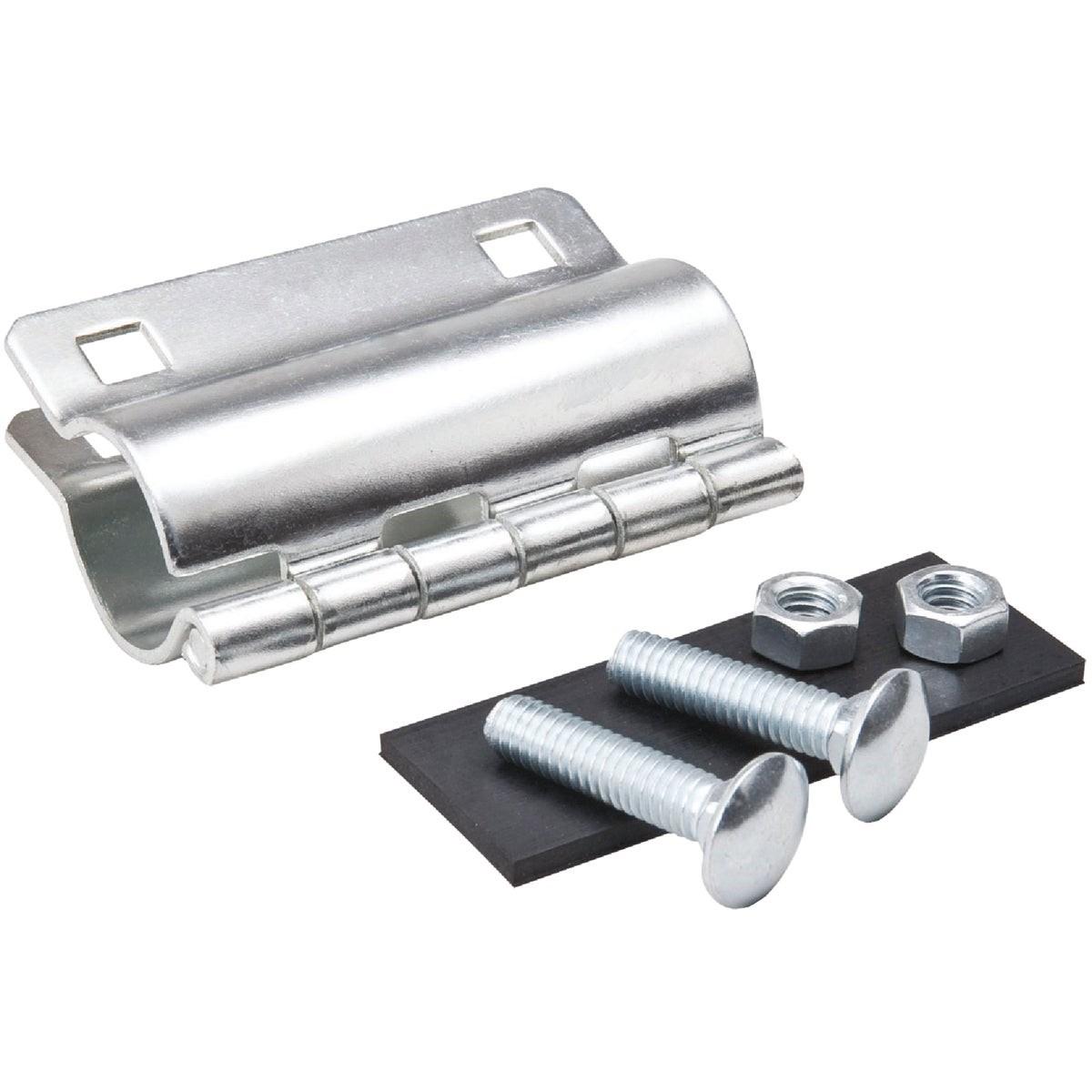

The BK 160-807 is a heavy-gauge galvanized steel pipe repair clamp designed to stop leaks on Schedule 40 pipe at the 1-1/2 inch size. The clamp body pairs with a rubber gasket to form a positive, pressure-resistant seal around the damaged section of pipe. This is a single-piece repair solution used in residential and light commercial plumbing systems. Licensed plumbers and pipefitters keep these clamps on hand for fast-response pipe repairs where cutting out a section is not immediately practical. The galvanized construction provides corrosion resistance suited to wet service environments.

This repair clamp is rated for Schedule 40 pipe at the 1-1/2 inch nominal pipe size. It is well-suited for use on water supply lines, drain lines, and general service piping in residential, commercial, and light industrial settings. The clamp is sold individually and is appropriate for use wherever a quick, reliable mechanical seal is needed on a compromised pipe section.

Key Features

• Heavy-gauge galvanized steel body resists corrosion in wet service conditions
• Integrated rubber gasket provides a positive seal on leaking pipe sections
• Sized for 1-1/2 inch Schedule 40 pipe nominal dimensions
• Single-unit repair solution — no pipe cutting or soldering required
• Lightweight at 0.97 pounds for easy handling and transport

Compatibility

Designed for use on 1-1/2 inch Schedule 40 pipe as an OEM-style mechanical repair clamp for standard plumbing pipe materials common in residential and commercial installations.

Installation Notes

Installation is performed by a licensed plumber. Shut off the water supply and relieve line pressure before applying the clamp. Position the rubber gasket directly over the leak point, seat the clamp body, and tighten fasteners evenly to achieve uniform gasket compression. Do not over-tighten, as uneven torque can compromise the seal. Verify local plumbing codes under the IPC or applicable jurisdiction before using mechanical repair clamps as a permanent fix.

Technical Specifications

• Pipe Size: 1-1/2 inches (Schedule 40)
• Body Material: Galvanized steel (heavy-gauge)
• Gasket Material: Rubber
• Weight: 0.97 pounds
• Sold As: Each

Standard Information

• Brand: BK
• Manufacturer Part Number: 160-807
