Bk 160-008 Compression Galvanized Coupling 2x5.5 in

Product Description

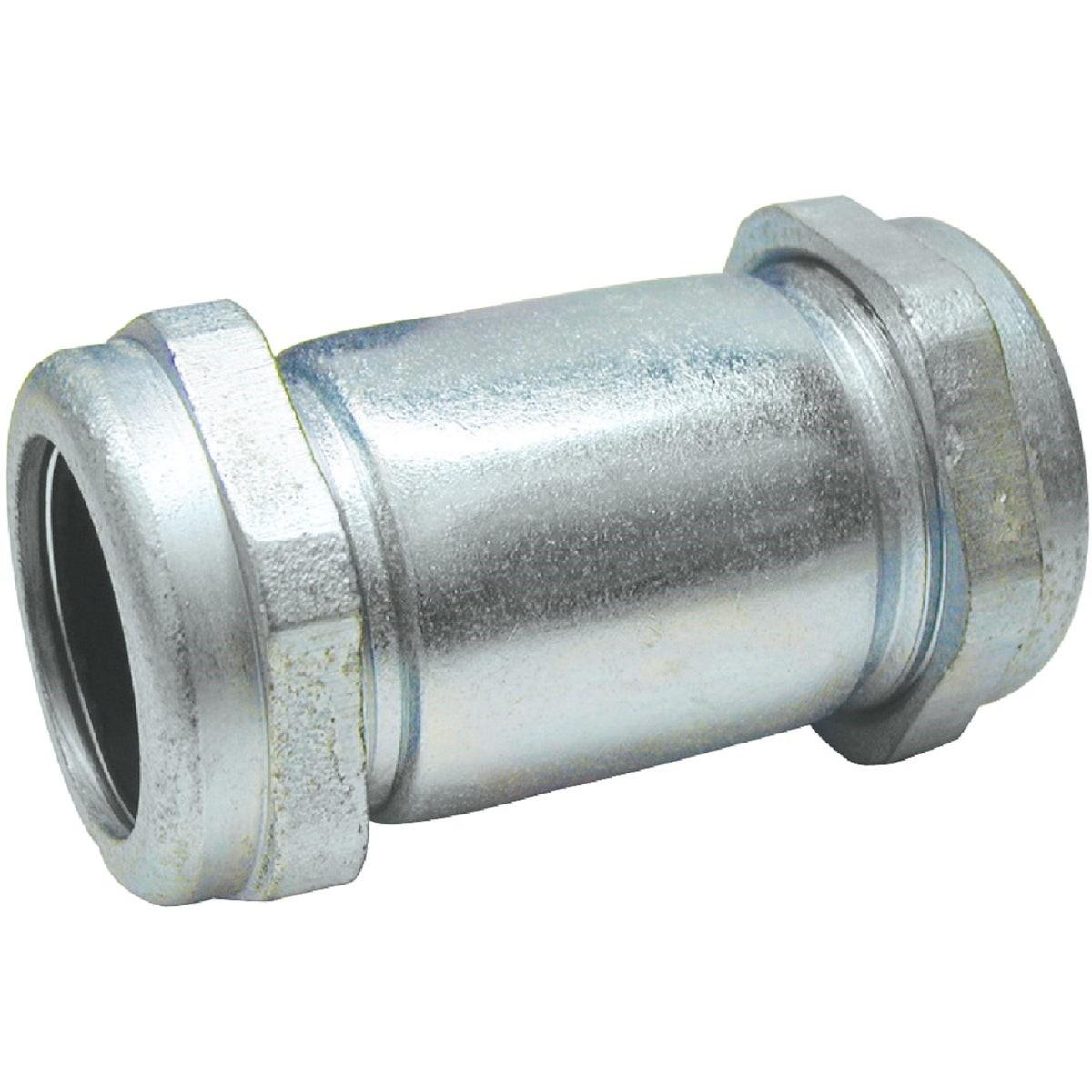

The BK 160-008 is a compression galvanized coupling used to join or repair pipe sections in water and drain piping systems. Built with a long-pattern hydroformed steel body, it delivers structural rigidity without the weight of a cast fitting. The rubber gasket uses a double-tapered design that creates two independent seals at each end, reducing the risk of leakage under pressure. The internal metal friction ring locks the fitting in place during installation. Rated to 125 psi at 210 degrees F, this coupling handles the pressure and temperature demands common in residential and light commercial plumbing. Licensed plumbers and pipefitters are the typical installers.

This coupling is sized to fit the outside diameter of Schedule 40 iron pipe or Schedule 40 PVC, making it suitable for repair work where the installer needs a single fitting that bridges both pipe materials. Common applications include water service lines, drain repairs, and mechanical room piping. At 2 inches by 5.5 inches, the long-pattern body provides enough engagement length for a secure, reliable joint in tight or exposed run applications.

Key Features

• Hydroformed steel body for consistent wall thickness and strength
• Double-tapered rubber gasket creates two seals per end for enhanced leak protection
• Metal friction ring holds pipe in position during makeup
• Fits O.D. of Schedule 40 iron pipe and Schedule 40 PVC
• Rated to 125 psi at 210 degrees F
• Long-pattern design provides extended engagement for secure joints

Compatibility

Designed to fit the outside diameter of Schedule 40 iron pipe and Schedule 40 PVC pipe in 2-inch nominal size.

Installation Notes

Installation is typically performed by a licensed plumber. Shut off the water supply and depressurize the line before beginning work. Clean and deburr pipe ends to ensure the gasket seats evenly and achieves a full seal. Follow local plumbing codes, which may reference IPC requirements for compression-style mechanical couplings in pressurized systems.

Technical Specifications

• Nominal Pipe Size: 2 inches
• Overall Length: 5.5 inches
• Pressure Rating: 125 psi
• Temperature Rating: 210 degrees F
• Body Material: Galvanized hydroformed steel
• Gasket Type: Double-tapered rubber
• Pipe Compatibility: Schedule 40 iron pipe O.D., Schedule 40 PVC O.D.
• Weight: 2.95 pounds
• UPC: 00032888600089

Standard Information

• Brand: BK
• Manufacturer Part Number: 160-008
