Bk 158-003 Chrome Split Plate 1/2 Inch Ips Escutcheon

Product Description

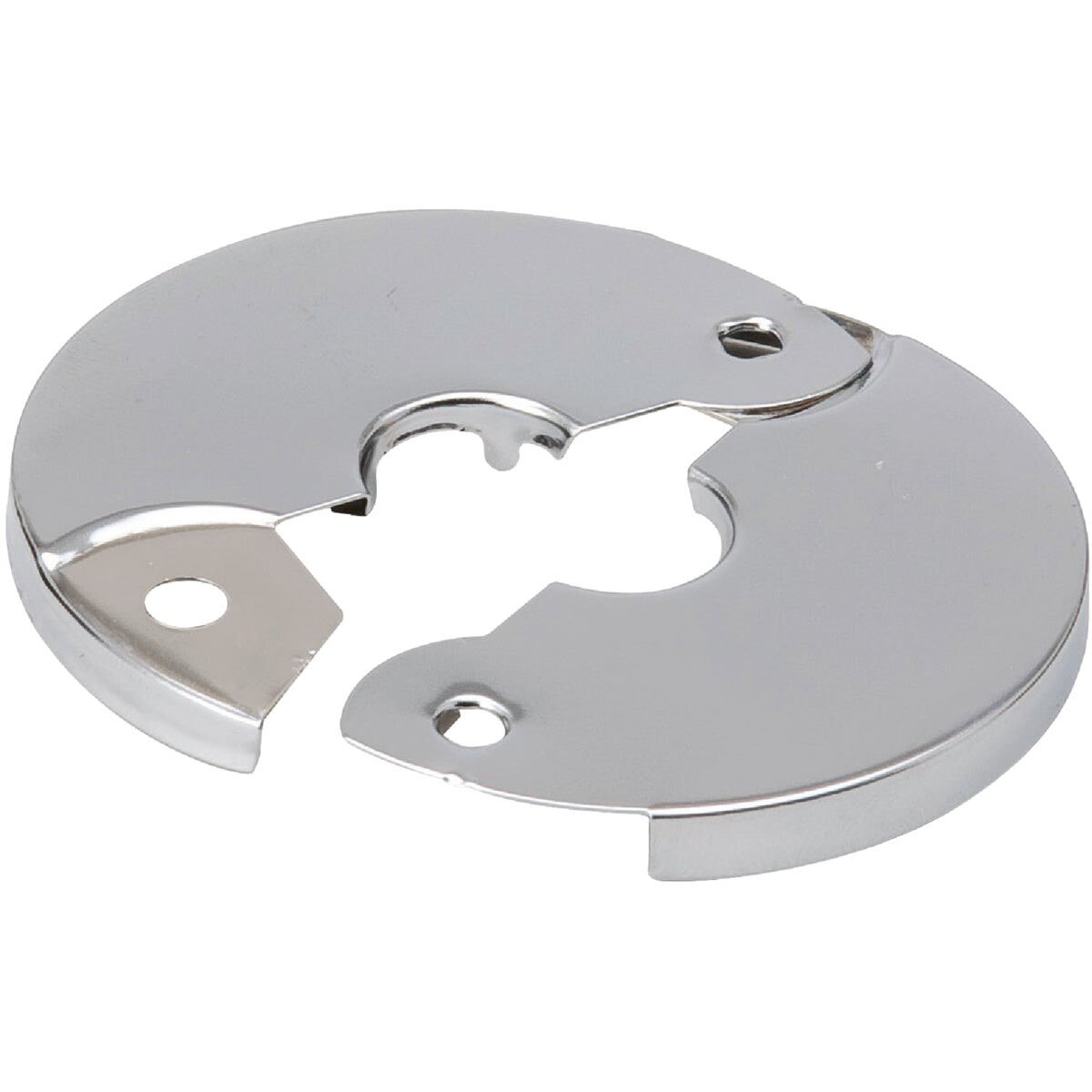

The BK 158-003 is a chrome-plated steel split escutcheon plate designed to provide a finished appearance where pipes pass through walls, floors, or ceilings. Sized for 1/2 inch IPS pipe with an outer diameter of 0.840 inches, the split design allows installation and removal without disconnecting the pipe. The chrome finish delivers a clean, polished look suited to exposed rough-in work, fixture trim-out, and general finish plumbing applications. Plumbers and finish trim installers use this plate to cover rough openings and give pipe penetrations a professional appearance.

This escutcheon plate is used in residential and light commercial plumbing installations wherever 1/2 inch IPS pipe emerges from a finished surface. Typical applications include supply line penetrations at walls behind toilets, sinks, and lavatories, as well as floor penetrations for water supply and drain rough-ins. The split construction makes it practical in retrofit and repair situations where the pipe is already in place and cannot be easily removed.

Key Features

• Split plate design allows installation over existing pipe without removing fittings or fixtures
• Chrome-plated steel construction provides corrosion resistance and a polished finish
• Sized for 1/2 inch IPS pipe with 0.840 inch outer diameter
• Suitable for wall, floor, and ceiling pipe penetration trim-out
• Lightweight at 0.046 pounds for easy handling during finish work

Compatibility

Designed as an OEM-style trim escutcheon for 1/2 inch IPS pipe with a 0.840 inch outer diameter, suitable for standard residential and light commercial plumbing pipe penetration applications.

Installation Notes

This plate is installed by a licensed plumber or qualified finish trim professional during the trim-out phase of a plumbing project. Shut off the water supply before performing any nearby pipe work. The split design snaps or fastens around the pipe at the finished surface — no special tools are required for most installations. Ensure the wall or floor surface is clean and dry before setting the plate to achieve proper seating.

Technical Specifications

• Pipe Size: 1/2 inch IPS
• Pipe Outer Diameter: 0.840 inches
• Finish: Chrome
• Material: Chrome-plated steel
• Weight: 0.046 pounds
• Unit of Measure: Each

Standard Information

• Brand: BK
• Manufacturer Part Number: 158-003
