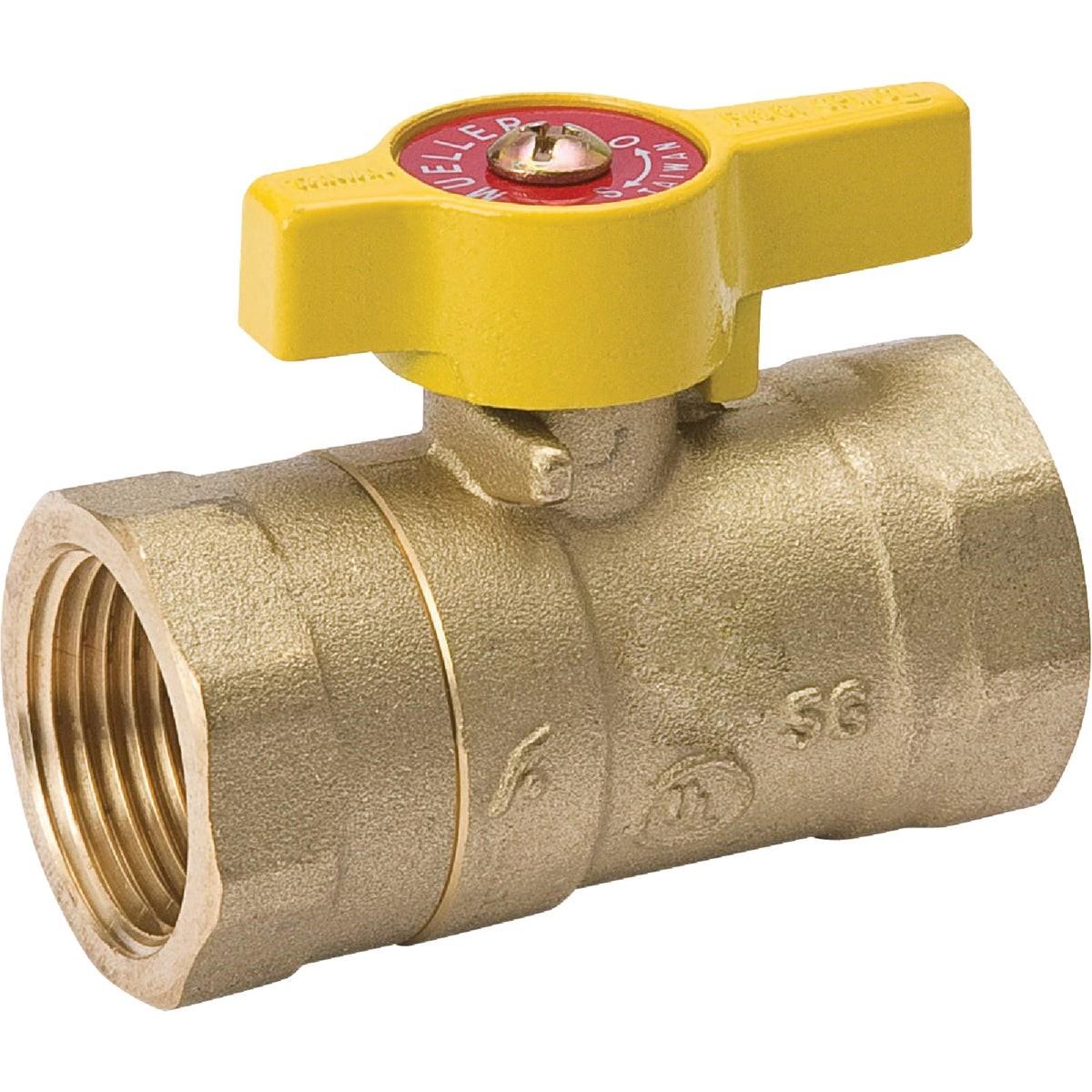

Bk 110-223HC Brass Quarter Turn Ball Valve 1/2 in

Product Description

The BK 110-223HC is a 1/2-inch brass quarter-turn ball valve designed for gas service applications. It features a 2-piece body construction with a chrome-plated brass ball and FIP x FIP threaded connections that comply with ANSI B1.20.1. The lever handle delivers a positive on/off shutoff in a single 90-degree turn, making it a fast and reliable isolation valve. Rated to 200 psi, it operates across a temperature range of -20 degrees F to 300 degrees F. The coated aluminum handle resists corrosion and solvent exposure. Licensed plumbers and gas fitters install this valve in residential and light commercial piping systems.

This valve is suited for natural gas and propane distribution lines in residential and light commercial settings. Its multi-directional flow design allows flexible installation orientation, and the FIP x FIP thread pattern fits standard iron pipe connections. Typical install locations include gas meter outlets, appliance shutoffs, and branch line isolation points. The valve carries CSA-ANSI Z21.15 (1/2 PSIG), ANSI/ASME B16.44 (5G), and UL listings, making it appropriate for inspected installations where code compliance is required.

Key Features

• Quarter-turn lever handle for fast, positive on/off gas shutoff
• Chrome-plated brass ball in a 2-piece brass body for durability
• 200 psi rated with a -20 degrees F to 300 degrees F operating range
• FIP x FIP threaded ends compliant with ANSI B1.20.1
• Multi-directional flow for flexible installation orientation
• Coated aluminum handle resists corrosion and chemical solvents
• CSA-ANSI Z21.15, ANSI/ASME B16.44, and UL listed for code-compliant installs

Compatibility

Designed as an OEM-style replacement or new-installation quarter-turn gas ball valve for 1/2-inch FIP threaded gas piping systems in residential and light commercial applications.

Installation Notes

Installation should be performed by a licensed plumber or gas fitter in accordance with local codes and IFGC requirements. Shut off the gas supply at the meter or main before beginning work and verify zero pressure at the valve location before making connections. Apply an approved thread sealant rated for gas service to all FIP threads. After installation, pressure-test the connection and check for leaks before restoring gas flow.

Technical Specifications

• Connection Type: FIP x FIP
• Pipe Size: 1/2 inch
• Body Material: Brass
• Ball Material: Chrome-plated brass
• Handle Material: Coated aluminum
• Body Style: 2-piece
• Flow Pattern: Multi-directional
• Pressure Rating: 200 psi
• Temperature Range: -20 degrees F to 300 degrees F
• Certifications: CSA-ANSI Z21.15 (1/2 PSIG), ANSI/ASME B16.44 (5G), UL Listed
• Thread Standard: ANSI B1.20.1
• Weight: 0.352 pounds

Standard Information

• Brand: BK
• Manufacturer Part Number: 110-223HC
