Bk 103-024 Forged Brass Ball Hose Bibb 3/4 Inch Mip

Product Description

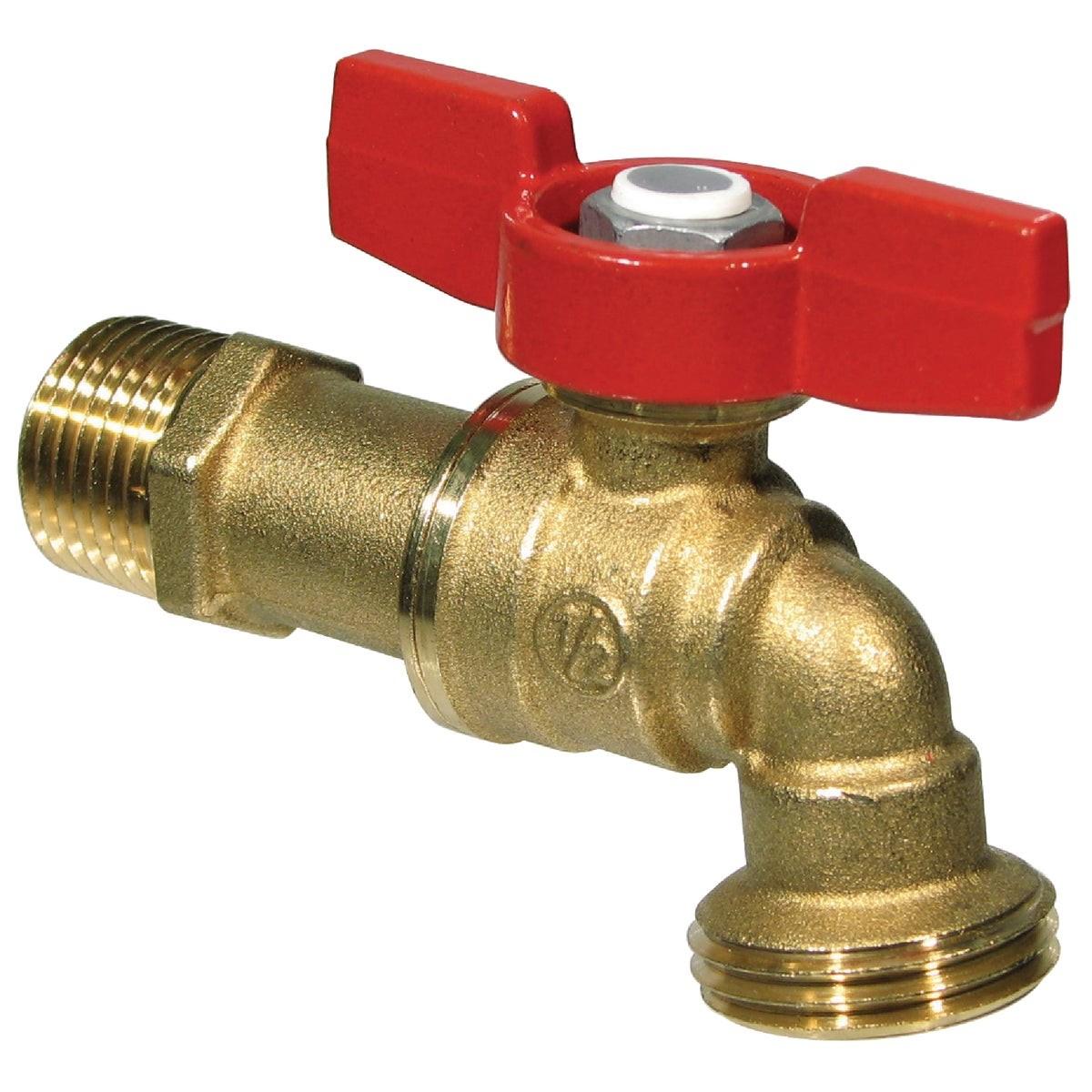

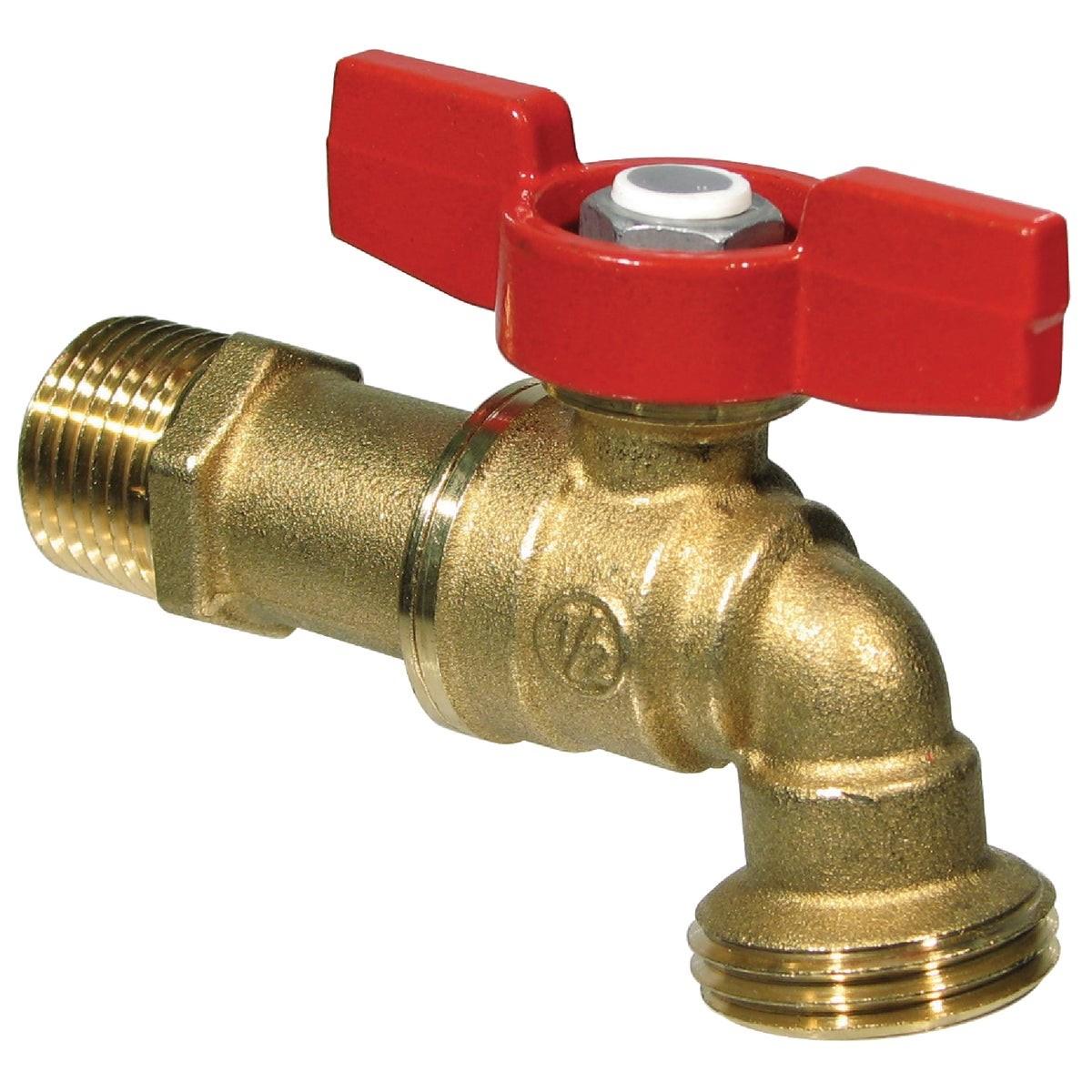

The BK 103-024 is a forged brass ball hose bibb designed for residential and light commercial plumbing applications. It features a quarter-turn ball valve mechanism that delivers a large, unobstructed flow rate and a positive shutoff. Rated for 200 psi WOG (water, oil, gas), this hose bibb is built to handle demanding service conditions. The inlet is sized at 3/4 inch male iron pipe (MIP) and the outlet is 3/4 inch male hose thread. Pipe threads conform to ANSI B1.20.1 and hose threads conform to ANSI B1.20.7, ensuring compatibility with standard fittings and garden hose connections.

This hose bibb is suited for exterior wall-mount installations, utility rooms, and irrigation tie-ins where a reliable shutoff at the hose connection point is needed. The quarter-turn operation makes it fast to open and close during seasonal winterization or routine service. Plumbers and pipefitters working on residential water supply lines, commercial wash-down stations, or light industrial connections will find this fitting appropriate for standard-pressure systems.

Key Features

• Forged brass construction for durability and corrosion resistance
• Quarter-turn ball valve design provides fast, reliable shutoff
• Rated 200 psi WOG for use on water, oil, and gas service
• 3/4 inch MIP inlet x 3/4 inch male hose thread outlet
• Pipe threads comply with ANSI B1.20.1
• Hose threads comply with ANSI B1.20.7

Compatibility

Designed as an OEM-style replacement or new-installation fitting compatible with standard 3/4 inch male iron pipe supply lines and 3/4 inch garden hose or hose-thread fittings meeting ANSI B1.20.1 and ANSI B1.20.7 thread standards.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the applicable International Plumbing Code (IPC) requirements. Shut off the water supply and relieve system pressure before removing or installing any fitting. Apply thread sealant tape or pipe compound to MIP threads per standard practice. Do not overtighten; use a wrench to achieve a snug, leak-free connection without damaging the brass body.

Technical Specifications

• Material: Forged Brass
• Inlet Connection: 3/4 inch MIP (Male Iron Pipe)
• Outlet Connection: 3/4 inch Male Hose Thread
• Pressure Rating: 200 psi WOG
• Valve Type: Quarter-Turn Ball Valve
• Pipe Thread Standard: ANSI B1.20.1
• Hose Thread Standard: ANSI B1.20.7
• Weight: 0.455 pounds

Standard Information

• Brand: BK
• Manufacturer Part Number: 103-024
