Bk 103-023 Forged Brass Ball Hose Bibb 1/2 in Mip X 3/4 in Mht

Product Description

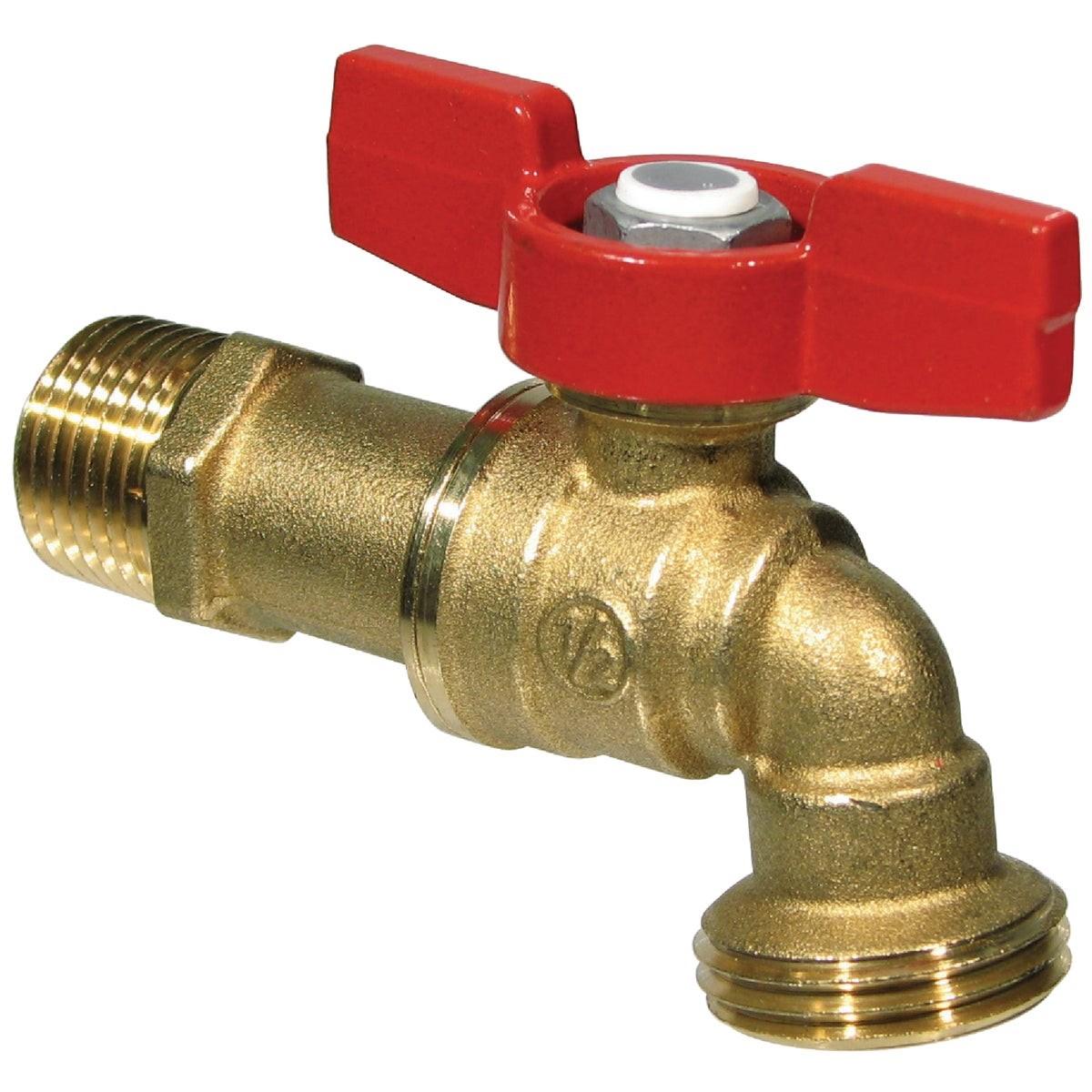

The BK 103-023 is a forged brass ball hose bibb designed for residential and light commercial plumbing applications. It features a quarter-turn ball valve mechanism that provides full, unobstructed flow and positive shutoff with minimal effort. The inlet is sized at 1/2 inch MIP and the outlet at 3/4 inch male hose thread, making it a standard configuration for connecting hose lines to supply piping. Rated for 200 psi WOG (water, oil, gas), it delivers dependable service under typical water supply pressures. Pipe threads conform to ANSI B1.20.1 and hose threads conform to ANSI B1.20.7.

This hose bibb is suited for outdoor hose connections, irrigation system feeds, and utility water outlets where a durable, corrosion-resistant shutoff valve is required. The forged brass body handles both hot and cold water service and resists the mechanical stress common in hose bib locations. It is a direct-replacement or new-installation fitting for standard residential and commercial plumbing systems requiring a 1/2 inch MIP inlet with a 3/4 inch hose outlet.

Key Features

• Forged brass body for corrosion resistance and long service life
• Quarter-turn ball valve construction for fast, positive shutoff
• Rated to 200 psi WOG for reliable performance under standard supply pressures
• 1/2 inch MIP inlet x 3/4 inch male hose thread outlet configuration
• Pipe threads comply with ANSI B1.20.1; hose threads comply with ANSI B1.20.7
• Large flow rate for unobstructed water delivery

Compatibility

Designed as an OEM-style replacement or new-installation fitting for standard residential and light commercial plumbing systems requiring a 1/2 inch MIP x 3/4 inch male hose thread ball-type hose bibb.

Installation Notes

Installation is performed by a licensed plumber or qualified tradesperson in accordance with local plumbing codes and the IPC. Shut off the water supply and depressurize the line before beginning work. Apply thread sealant tape or compound to all male pipe threads before making connections. Do not overtighten threaded fittings in forged brass bodies, as this can damage threads or distort the valve housing.

Technical Specifications

• Material: Forged Brass
• Inlet Connection: 1/2 inch MIP
• Outlet Connection: 3/4 inch Male Hose Thread
• Pressure Rating: 200 psi WOG
• Valve Type: Quarter-Turn Ball Valve
• Pipe Thread Standard: ANSI B1.20.1
• Hose Thread Standard: ANSI B1.20.7
• Weight: 0.376 pounds
• Sold As: Each

Standard Information

• Brand: BK
• Manufacturer Part Number: 103-023
