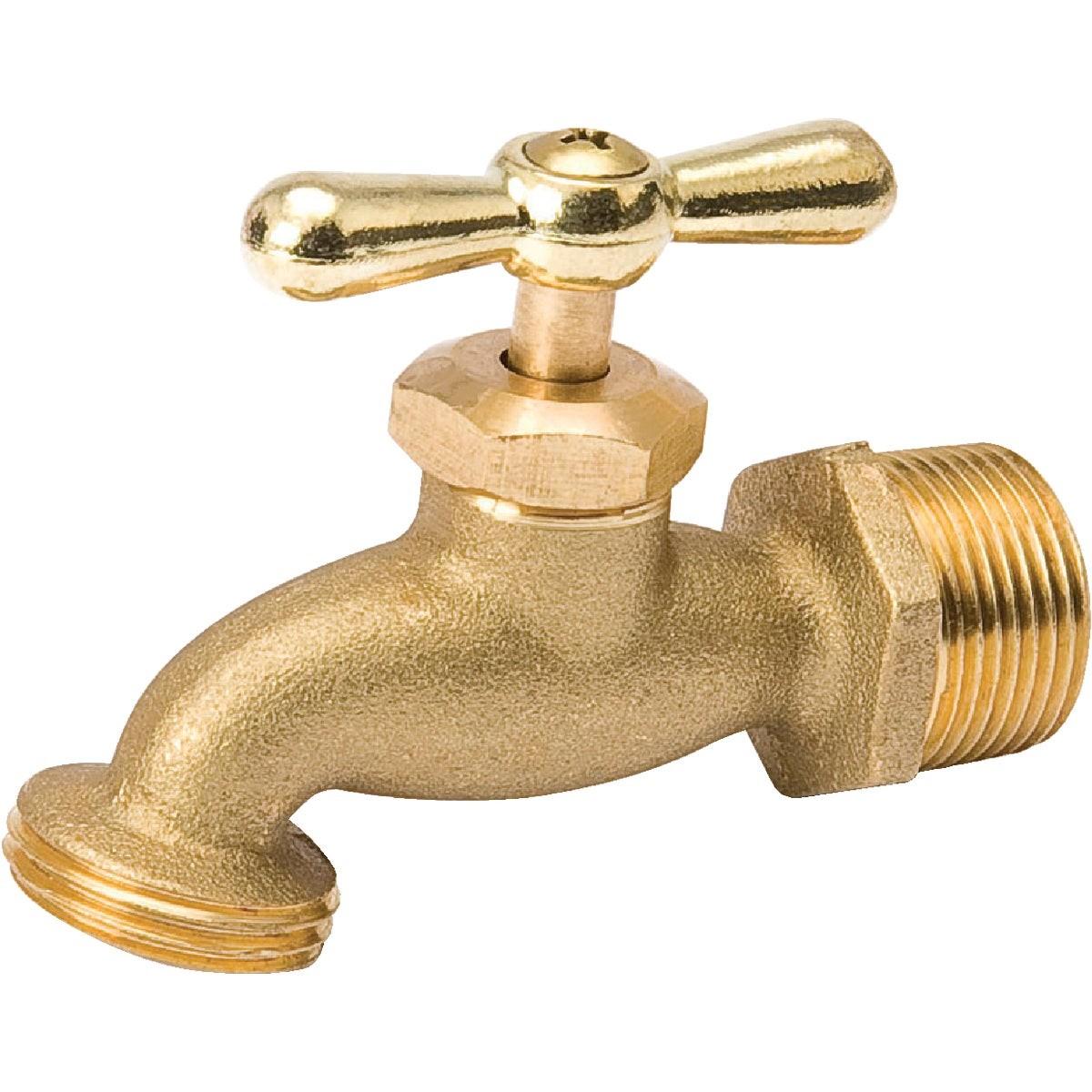

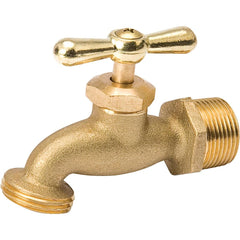

Bk 103-004 Hose Bibb 3/4 in Mip X 3/4 in Male Hose Thread

Product Description

The BK 103-004 is a standard hose bibb designed for residential and light commercial water supply applications. It features a 3/4-inch male iron pipe (MIP) inlet and a 3/4-inch male hose thread outlet, allowing direct connection to threaded pipe systems and standard garden hose fittings. Constructed from brass with a neoprene seal disc, this bibb provides reliable shutoff and long service life in typical potable water service. Plumbers and pipefitters install this fitting during new construction, renovation, or replacement of existing outdoor or utility hose connections.

This hose bibb is suited for residential exterior walls, utility rooms, and light commercial settings where a threaded pipe-to-hose connection is required. The MIP inlet threads directly onto a female-threaded pipe stub-out, and the male hose thread outlet accepts standard garden hose fittings or hose-end accessories. It is sold individually and is appropriate for standard cold-water service lines.

Key Features

• Brass body construction for corrosion resistance in potable water service
• Neoprene seal disc provides positive shutoff and extended seat life
• 3/4-inch MIP inlet threads onto standard female-threaded pipe stubs
• 3/4-inch male hose thread outlet accepts standard garden hose connections
• Compact standard bibb form factor for wall-mount or in-line installation

Compatibility

Designed as an OEM-style replacement or new-installation fitting for residential and light commercial plumbing systems requiring a 3/4-inch MIP inlet by 3/4-inch male hose thread outlet hose bibb.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and relieve system pressure before removing or installing the bibb. Apply thread sealant tape or compound to the MIP threads before making up the connection; do not overtighten, as brass fittings can crack under excessive torque. Verify the outlet orientation and secure the bibb to the wall or backing plate before restoring water service and checking for leaks.

Technical Specifications

• Inlet Connection: 3/4 inch MIP (Male Iron Pipe)
• Outlet Connection: 3/4 inch Male Hose Thread
• Body Material: Brass
• Seal Material: Neoprene
• Weight: 0.342 pounds
• Sold As: Each
• UPC: 00032888030046

Standard Information

• Brand: BK
• Manufacturer Part Number: 103-004
