Bk 102-333HC Loose Key Hose Bibb Mip X Male Hose Thread

Product Description

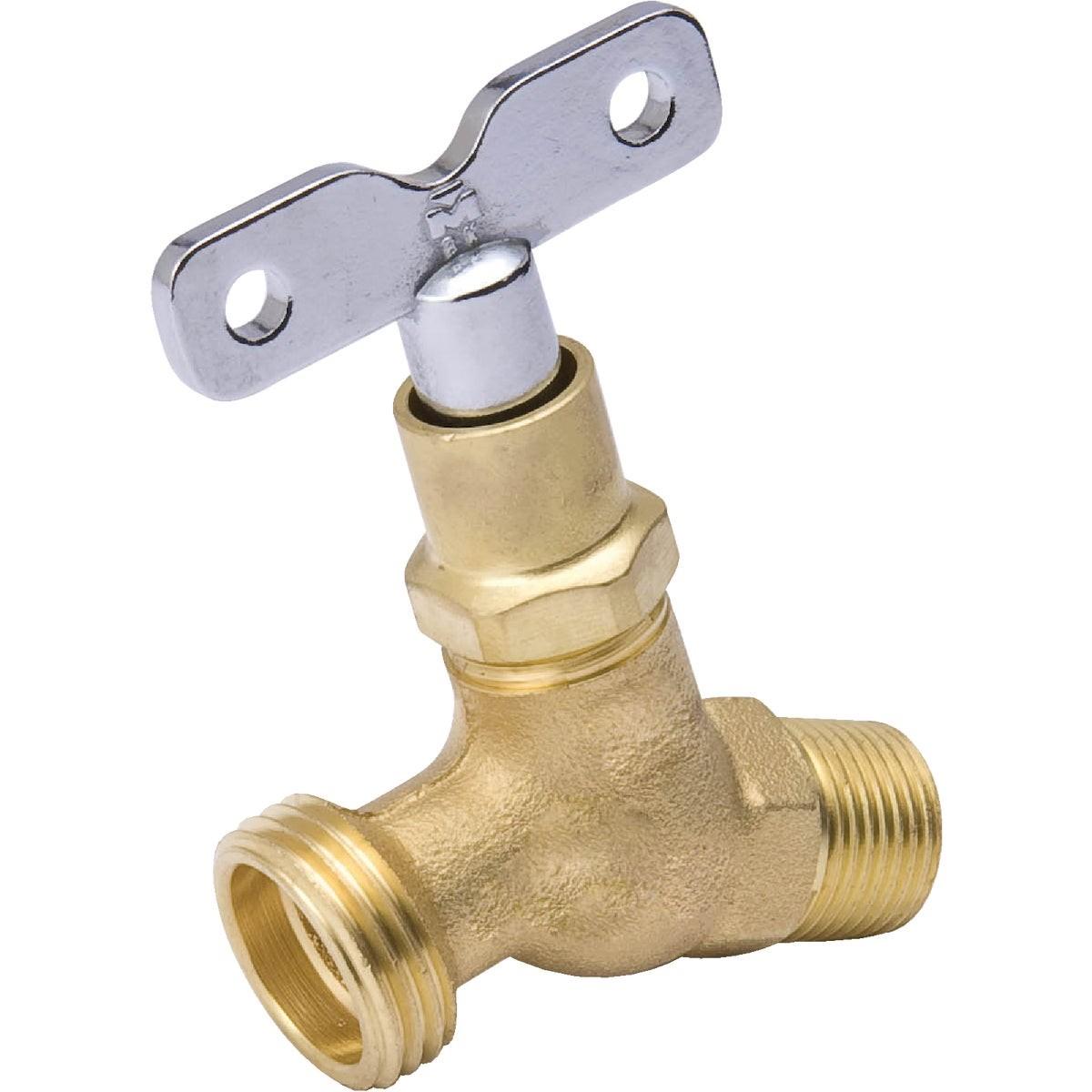

The BK 102-333HC is a loose key hose bibb valve designed for controlling the flow of water or oil in residential and light commercial plumbing applications. The valve features a 0.5 inch male iron pipe (MIP) inlet and a 0.75 inch male hose thread outlet, providing a large-flow connection for outdoor or utility service points. A neoprene seal washer ensures a reliable shutoff, and the removable loose key design locks out unauthorized or unintended use when the key is not present. Pipe threads comply with ANSI B1.20.1 and hose threads comply with ANSI B1.20.7. The valve meets NSF 61-9 low lead standards, making it suitable for potable water systems.

This hose bibb is intended for use wherever a controlled, lockable outdoor water supply point is required. Typical installations include commercial facilities, irrigation supply lines, utility areas, and any location where valve access needs to be restricted when the key is removed. It is compatible with water and oil service lines.

Key Features

• Loose key design prevents valve operation when key is removed, providing built-in access control
• Neoprene seal washer delivers positive, durable shutoff
• 0.5 inch MIP inlet and 0.75 inch male hose thread outlet for large-flow capacity
• Pipe threads conform to ANSI B1.20.1 and hose threads conform to ANSI B1.20.7
• Meets NSF 61-9 low lead approval for potable water applications
• Suitable for both water and oil service

Compatibility

Designed as an OEM-style replacement or direct-install hose bibb for residential and commercial plumbing systems requiring a 0.5 inch MIP inlet connection and a standard 0.75 inch male hose thread outlet.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC guidelines. Shut off the water supply and relieve line pressure before installing or removing the valve. Apply appropriate thread sealant or PTFE tape to the MIP inlet threads before making up the connection. Keep the loose key in a secure location to maintain access control at the valve.

Technical Specifications

• Inlet Size: 0.5 inch MIP
• Outlet Size: 0.75 inch Male Hose Thread
• Seal Material: Neoprene
• Thread Standard (Pipe): ANSI B1.20.1
• Thread Standard (Hose): ANSI B1.20.7
• Certification: NSF 61-9 Low Lead
• Compatible Media: Water, Oil
• Weight: 0.384 pounds
• Unit of Measure: Each

Standard Information

• Brand: BK
• Manufacturer Part Number: 102-333HC
