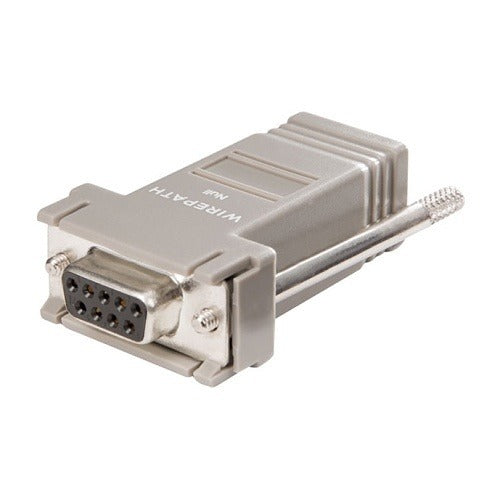

Binary DB9-F-RJ45-NULL DB9 Female to RJ45 Adapter

Product Description

The BINARY DB9-F-RJ45-NULL is a wiring adapter that converts a DB9 female serial interface to an RJ45 modular connector. This null modem configuration allows technicians to bridge serial communication devices with standard RJ45-terminated cabling, eliminating the need for custom-wired serial cables. It is used in control system wiring and serial data communication setups found in building automation, HVAC controls, and industrial equipment. Licensed controls technicians and low-voltage installers are the primary users of this adapter.

This adapter suits applications where a DB9 serial port on a controller, terminal, or diagnostic device must interface with RJ45 patch cabling or modular serial wiring. The null modem wiring arrangement makes it appropriate for direct device-to-device serial connections without an intermediate modem. It is sold as a single unit and fits into interconnect cable and serial communication infrastructure commonly found in commercial HVAC controls, building management systems, and equipment programming setups.

Key Features

• DB9 female connector mates directly to standard DB9 male serial ports
• RJ45 modular termination accepts standard 8-position modular plugs
• Null modem configuration supports direct device-to-device serial communication
• Compact adapter format reduces cable clutter at the connection point
• Single-unit packaging for targeted replacement or installation use

Compatibility

Designed as an OEM-style serial wiring adapter for use with equipment featuring DB9 male serial ports and RJ45 modular serial cabling in commercial and residential controls applications.

Installation Notes

Installation is performed by licensed low-voltage technicians or controls specialists familiar with serial communication wiring. Verify that the target device serial port is powered down before connecting or disconnecting the adapter. Confirm that the null modem pinout matches the wiring scheme of the connected RJ45 cable before applying power to the system. Consult the equipment manufacturer documentation to verify serial port compatibility and communication parameters prior to commissioning.
