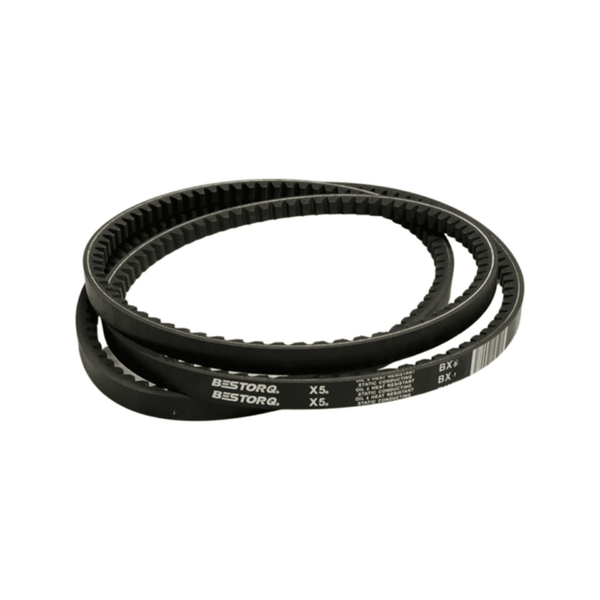

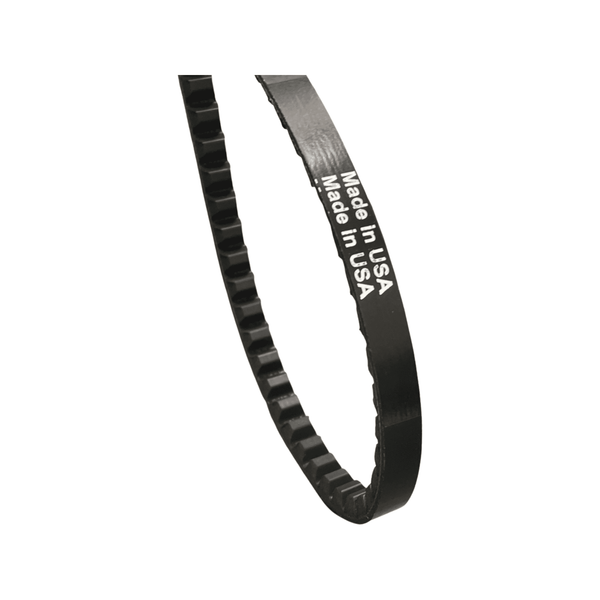

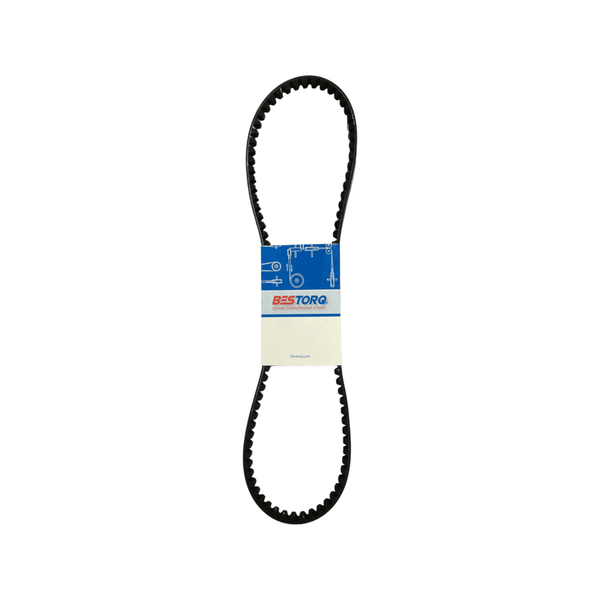

BESTORQ BX27 Bestorq Classical Cogged Raw Edge V-Belt 30 inches O.C.

Product Description

The BESTORQ BX27 is a high-quality single raw edge notched V-belt designed for robust performance. Manufactured using advanced materials, this classical cogged V-belt meets and exceeds the standards set by the USA RMA. The 'X' in the part number signifies higher load ratings for improved durability compared to standard belts.

• Manufactured to function as a matched set.
• Engineered from high-performance materials.
• Features enhanced load ratings due to the 'X' designation in the part number.

Product Highlights

Ideal for heavy-duty applications, the BESTORQ BX27 ensures reliable operation in demanding environments.

Product Information

Standard Information

• Series: Classical Cogged Raw Edge V-Belt
• Brand: BESTORQ

Technical Specifications

• Belt Cross Section: BX
• Belt Width: 0.656 inches
• Belt Thickness: 0.375 inches
• Belt O.C.: 30 inches
• V-Belt Type: Cogged Belt
• Model: V-Belt
• Industry Number: BX27
• Outside Length: 30 inches
• Number of Ribs: 1
• Height: 0.406 inches
• Inside Length: 27 inches
• Material: Rubber
• For Use With: Heavy Duty General Application
• Standards: RMA
• Storage Temp.: 40F-100F
• Banded Belt: No
• Temp. Range: -30 F to 160 F
• Angle: 40 Degree
• Top Width: 0.66 inches
