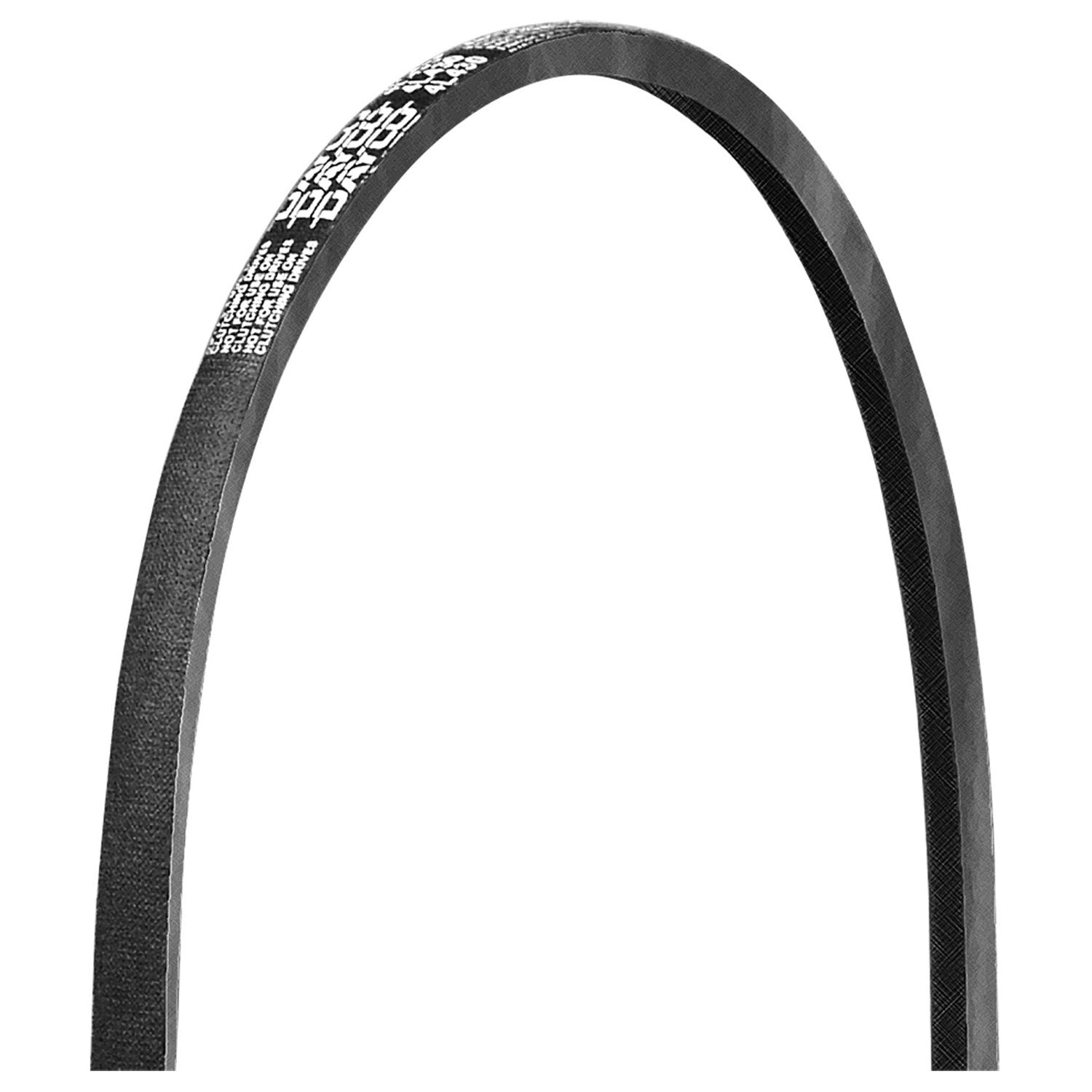

Bestorq 4L480 V Belt 48 in

Product Description

The BESTORQ 4L480 V Belt is designed to perform at the identical or higher level than all other major Manufacturer's belts of the same type. The outer fabric wrap is treated with highly oil and heat resistant, engineered synthetic rubber compound. The body rubber compound is specially compounded for cool running and flexibility. BESTORQ belts exceed RMA published ratings.

• Oil, heat, and crack resistant
• Manufactured to meet RMA standards for length and dimensions
• All belts of a size are manufactured to run as a matched set

Product Highlights

The BESTORQ 4L480 V Belt features oil and heat resistance and is designed to meet RMA standards. It is suitable for heavy-duty general applications.

Product Information

Standard Information

• Brand: BESTORQ
• Manufacturer Part Number: 4L480
• Country of Origin: China

Technical Specifications

• Part ID / MPN: 4L480
• Product Type: MECHANICAL_BELT
• Manufacturer: bestorq
• Brand: Dayton
• Model / MPN: 4L480
• Height: 5/16 in
• Material: Rubber
• Standards: RMA
• Top Width: 1/2 in
• Banded Belt: No
• Temp. Range: -30 F to 160 F
• V-Belt Type: V Belt
• For Use With: Heavy Duty General Application
• Number of Ribs: 1
• Outside Length: 48 in
• Industry Number: 4L480
• Outside Diameter: 48 inches (1219.2mm)
• Inside Length: 46 Inches (1168.4mm)
• Belt Size: A46 or 4L480

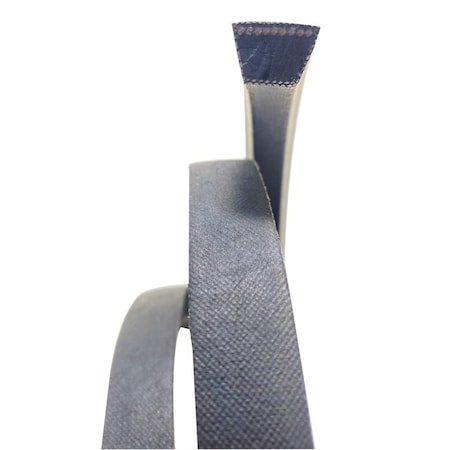

• Construction: Wrapped
• Series: Classical Wrapped V-Belt

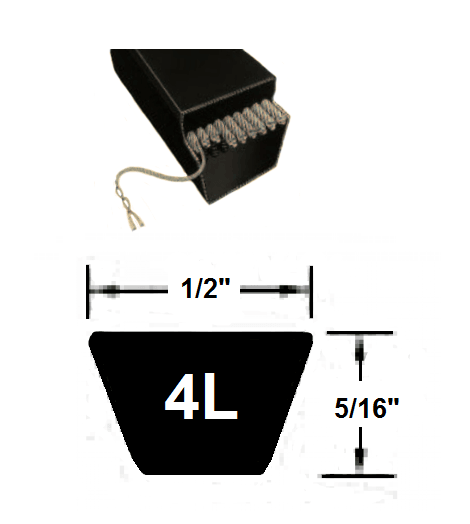

• Belt Cross Section: 4L
• Belt Width: 1/2"
• Belt Thickness: 5/16"
• Belt O.C.: 48"
