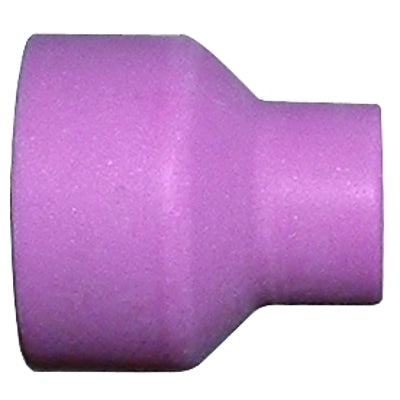

Best Welds 900-57n75xl Alumina Tig Nozzle Cup Size 6

Product Description

The BEST WELDS 900-57n75xl is an alumina TIG nozzle cup designed for use with large gas lens configurations on a wide range of TIG torches. At 3.25 inches in length with a 3/8-inch orifice opening, this Size 6 cup delivers consistent shielding gas coverage across most TIG welding operations. Alumina construction provides high impact resistance, strong thermal conductivity, and heat resistance that exceeds lava nozzle alternatives. Licensed welders and HVAC pipe welders handling stainless, aluminum, and titanium work commonly reach for alumina cups as their standard shop nozzle.

This nozzle is suited to production and maintenance welding in open or semi-open environments. It is the most widely used nozzle type in TIG welding and performs well across a broad range of base metals and positions. The alumina material resists spatter buildup, reducing downtime for cleaning between passes. It is not recommended for confined-space welding where limited clearance makes a longer or larger-diameter cup impractical.

Key Features

• Alumina construction offers high impact and heat resistance, outperforming lava nozzles in thermal durability
• Resists spatter buildup, extending service life between cleanings
• Large gas lens type for improved shielding gas laminar flow and coverage
• Size 6 with 3/8-inch orifice suits the most common TIG welding applications
• Compatible with a wide range of standard TIG torch bodies
• Recommended for most welding operations except confined-area work

Compatibility

Designed for use with TIG torches 9, 17, 18, 20, 22, 25, 26, and 27 equipped with large gas lens bodies.

Installation Notes

Installation should be performed by a qualified welder or welding technician with the torch disconnected from the power source and shielding gas supply shut off. Thread the nozzle onto the gas lens collet body by hand until snug, avoiding over-tightening that could crack the alumina. Inspect the cup for chips or cracks before each use, as damaged alumina can disrupt shielding gas flow and compromise weld quality.

Technical Specifications

• Material: Alumina
• Nozzle Size: 6
• Orifice: 3/8 inches
• Length (Nominal): 3.25 inches
• Type: Large Gas Lens
• Compatible Torches: 9, 17, 18, 20, 22, 25, 26, 27
• Country of Origin: China

Standard Information

• Brand: BEST WELDS
• Manufacturer Part Number: 900-57n75xl
