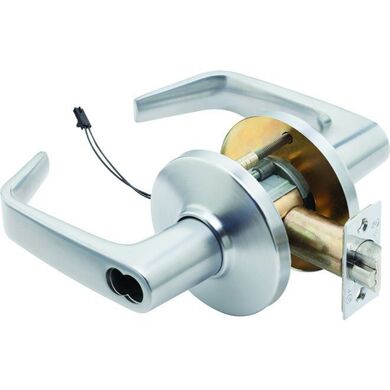

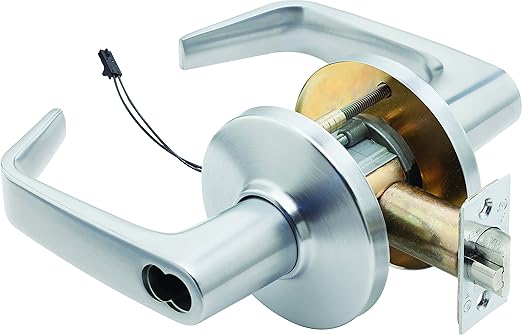

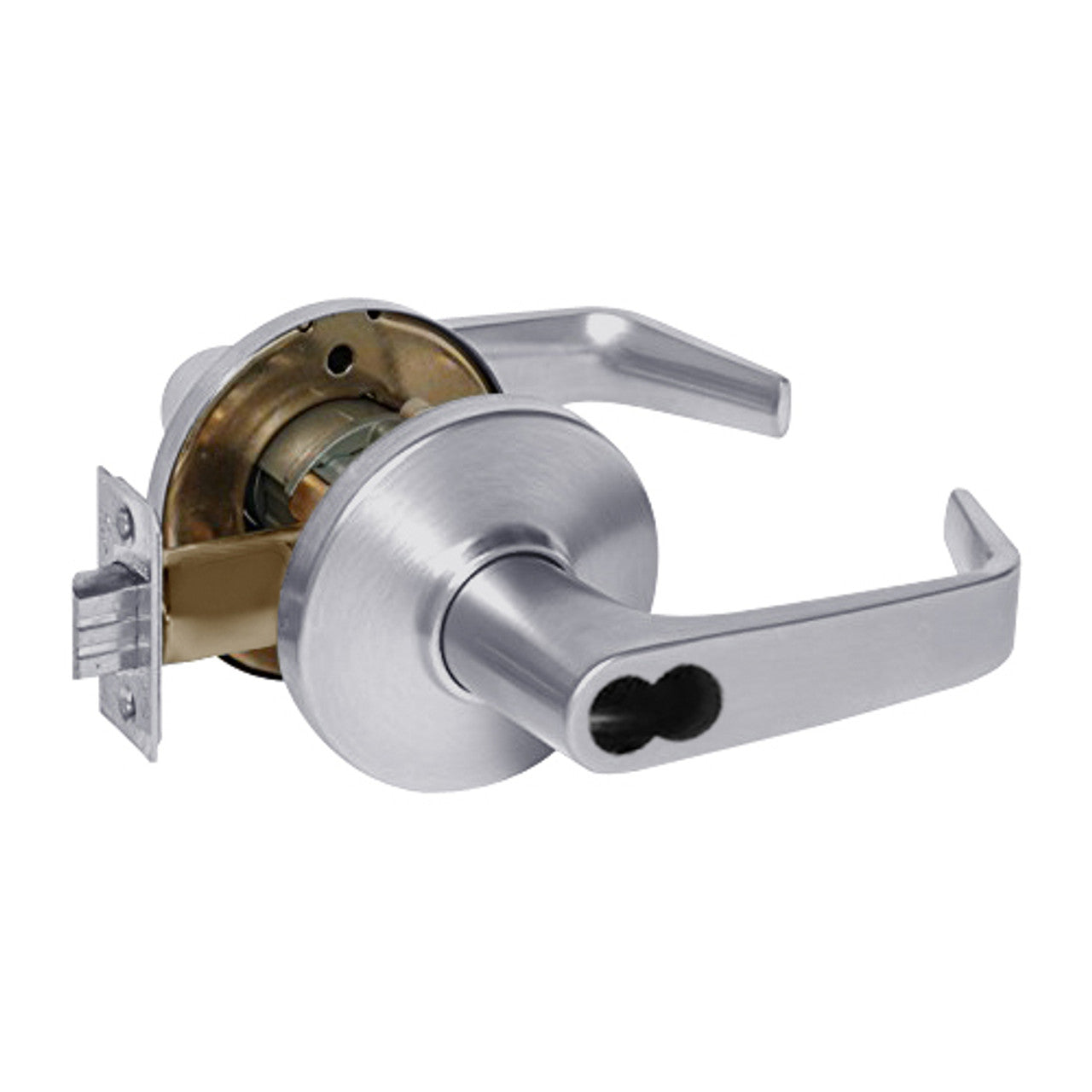

Best Access 9KW37DEU15D-S3-626-RQE Grade 1 Electric Cylindrical Lock 2-3/4 inches Backset

Product Description

The Best Access 9KW37DEU15D-S3-626-RQE is a Grade 1 electric cylindrical lock with a 2-3/4 inch backset. This lock is electronically unlocked and features a fail-secure design, operating on 24VDC. With a 15D lever style and a request to exit function, this lock is part of the 9KW Series Electromechanical Lever Locks and is finished in satin chrome.

• Grade 1 security rating
• Electronically unlocked for convenience
• Designed for commercial use

Product Highlights

This electric cylindrical lock is perfect for securing commercial properties while providing ease of access.

Product Information

Standard Information

• Power Source: Hardwired
• Voltage: 24 VDC

Technical Specifications

• BAA Qualified: Yes
• Base Material: Brass or Bronze
• Fire Rated: 3 Hours {A}
• Limited Warranty: 3 Years
• Finish: 626/US26D
• Country Of Origin: USA
• Grade: Grade 1
• Cylinder Type: SFIC Prep Less Core
• Function: DEU - Electronically Unlocked
• Series: 9KW Series Electromechanical Lever Locks
• Handing: Not Handed
• Lock Type: Cylindrical
• Material: Alloy Steel, Brass, Bronze
• Backset: 2-3/4 inches
• Strike: S3 - ANSI A115.2 for 1-3/4 inch doors
• Number of Pins: 7 Pin Housing
• Design: 15D
• Door Thickness: 1-3/4 inches to 2-1/4 inches
• Cross Bore: 2-1/8 inches
• Handle Length: 5-3/8 inches
• Handle Projection: 2-3/4 inches
• Trim Width: 3-1/2 inches
• Trim Height: 3-1/2 inches
• Latch Faceplate: Square Corner
• Interchangeable Core Type: SFIC
• ADA Compliant: Yes
• ANSI Certification: A156.2
• Approved for Commercial Use: Yes
• BHMA Certification: Grade 1
• Certifications: ANSI, UL
• Collection: 9KW
• Request to Exit: Yes
• Core: Not included
• Housing: Accepts all BEST cores
• Latch: Solid brass 9/16 inch throw
• Projection on Door: Approx 2-3/4 inches
• Lever Style: 15 - Contour with angle return
• Rose Style: D - 3-1/3 inch convex
• Latchbolt: Deadlocking latchbolt standard
