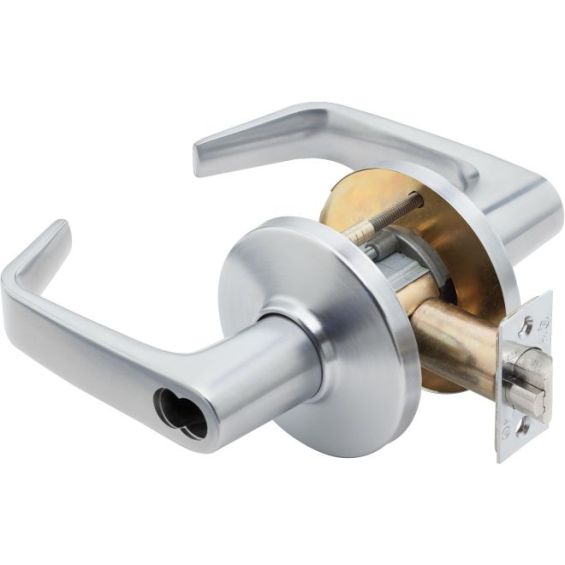

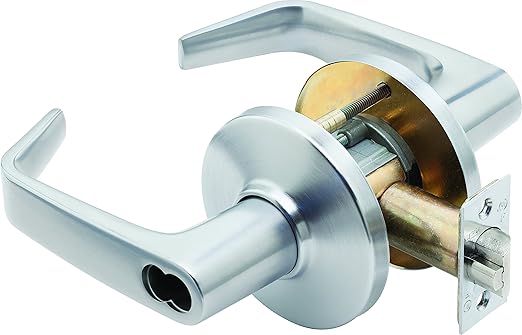

Best Access 9K37T15D-S3-626 7-Pin Convex D Rose Contour Angle Return Heavy Duty Lever Lock, Dormitory

Product Description

The Best Access 9K37T15D-S3-626 is a specialized 7-pin convex D rose contour angle return heavy-duty lever lock designed for dormitory applications. Its robust design incorporates a rose locking pin and assembly that ensures high torque resistance, helping to prevent twisting or breaking when under duress. The strong through-bolt mounting studs add another layer of security by increasing resistance to forced entry. Additionally, the design includes strong retractor springs which help prevent lever sag, ensuring the lock remains functional over time.

• Rose locking pin and assembly offer excellent torque resistance.
• Constructed with heavy-duty materials for increased durability.
• Reversible handing allows for flexible installation options.

Product Highlights

This lock is ideal for maintaining security in dormitories and similar settings.

Product Information

Standard Information

• Lock Type: Cylindrical
• Material: Alloy Steel, Brass, Bronze

Technical Specifications

• Special Feature: Heavy Duty
• Series: 9K Series
• Backset: Two and three-fourths inches
• Strike: S3 ANSI Strike
• Number of Pins: 7 Pin Housing
• Crossbore Size: Two and one-eighth inches bore and two five-eighths inch through bolt holes
• Function: T-Dormitory
• Grade: Grade 1
• Country of Origin: USA
• UL Listing: BHMA A156.2, Series 4000, Grade 1, UL Listed
• Fire Rated: 3 Hours
• Warranty: 10 Year Warranty
• Finish: Satin Chrome
• Hand: Non-handed
• Cylinder Type: SFIC Prep Less Core
