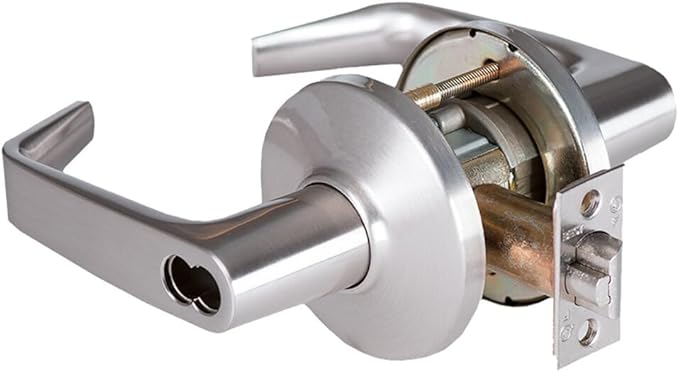

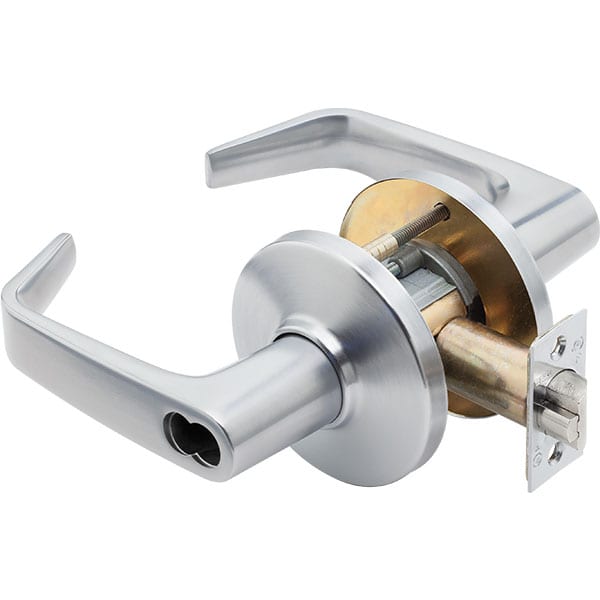

Best Access 9K37R15D-S3-626 9K Series Classroom Keyed Entry Door Lever Set 15 Lever, D Trim, S3 Strike, 2-3/4 inches Backset

Product Description

The Best Access 9K37R15D-S3-626 is a reliable cylindrical lock designed for consistent performance in a variety of settings. This Grade 1 classroom function lockset features a fifteen lever, SFIC housing without core, and a two- and three-quarter inches backset. It includes a one- and one-eighth inches by two- and one-quarter inches dead latch and a one-and-one-quarter inches by four- and seven-eighths inches ASA strike. This product is suitable for doors that are one-and-three-quarters inches to two-and-one-quarter inches thick with a two-and-one-eighth inches bore hole diameter.

• Grade 1 Classroom Function Cylindrical Lockset
• Features a fifteen lever and SFIC housing without core
• Includes two- and three-quarter inches backset, dead latch, and ASA strike

Product Highlights

The Best Access 9K37R15D-S3-626 is ideal for educational institutions and high-traffic areas, providing security and ease of access.

Product Information

Standard Information

• Material: Alloy Steel
• Brand: Best Access

Technical Specifications

• Exterior Finish: Chrome
• Special Feature: Easy to Install
• Included Components: Complete Item Enclosed
• Handle Material: Alloy Steel
• Hand Orientation: Universal
• Unit Count: One
• Backset: Two- and three-quarter inches
• Lever Design: Fifteen Lever (Contour Angle, Return)
• Rose: D – Three and one-half inches Convex
• Usage: Heavy Duty
• ANSI/BHMA Standard: Listed by BHMA for A156.2, Series 4000, Grade 1
• Fire Rating: Listed by Underwriters Laboratories for use on three hours, A label for single or double swinging doors
• ADA Compliance: Meets ADA requirements – A117.1 Accessibility Code
• Latch: One-half inch throw, deadlocking – One-and-one-eighth inches by two-and-one-quarter inches face
• Strike: S3: Conforms to ANSI A115.2 for one-and-three-quarter inches doors (four and seven-eighths inches x one-and-one-quarter inches with curved lip)
• Handing: Non-Handed
• Door Thickness: One-and-three-quarters inches to two-and-one-quarter inches
• Country of Origin: USA
• Function: R-Classroom
• Buy American Act Compliance: Meets Buy American Act – Made in USA
• Number of Pins: Seven Pin Housing
• Crossbore Size: Two-and-one-eighth inches Bore and Two five-eighths inches Through Bolt Holes
