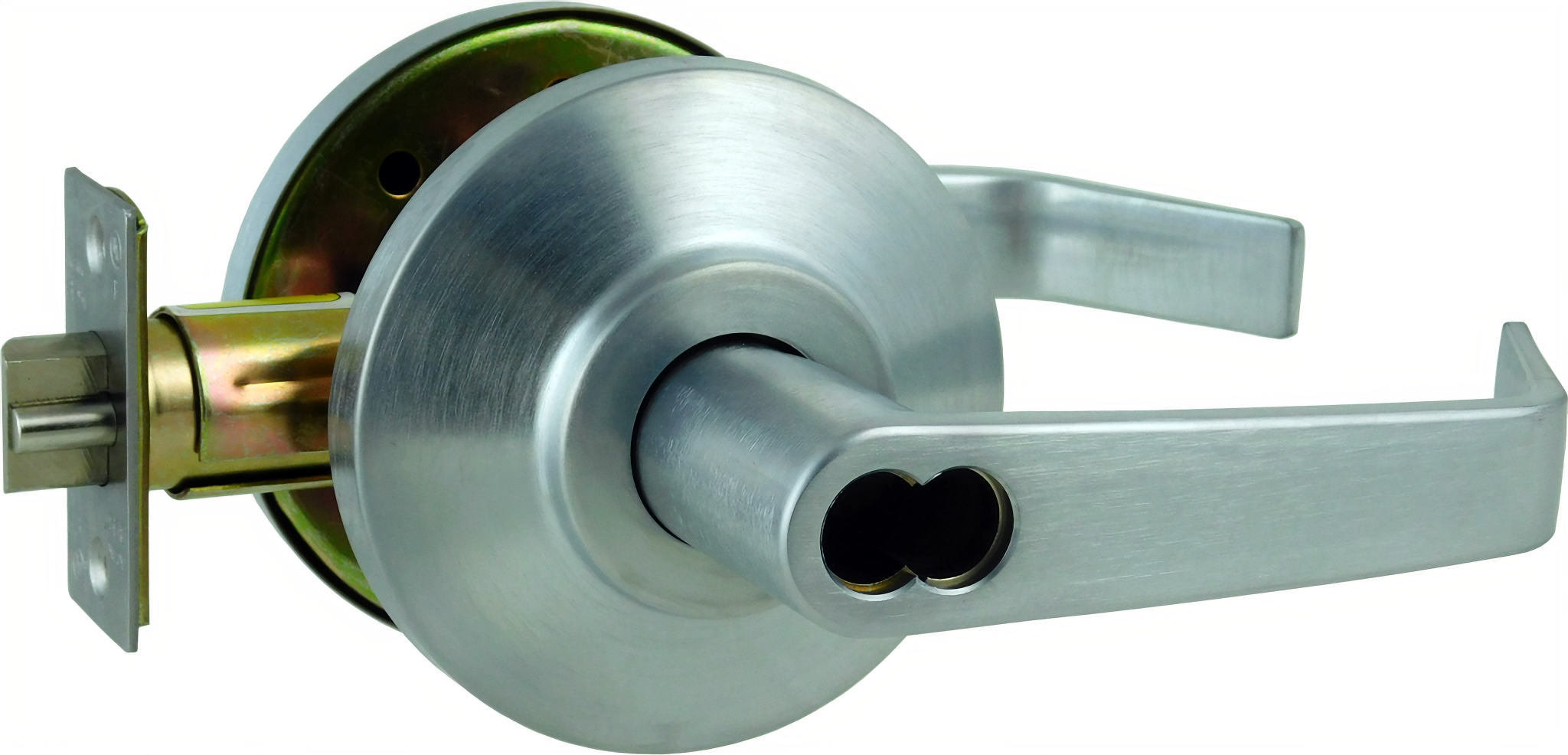

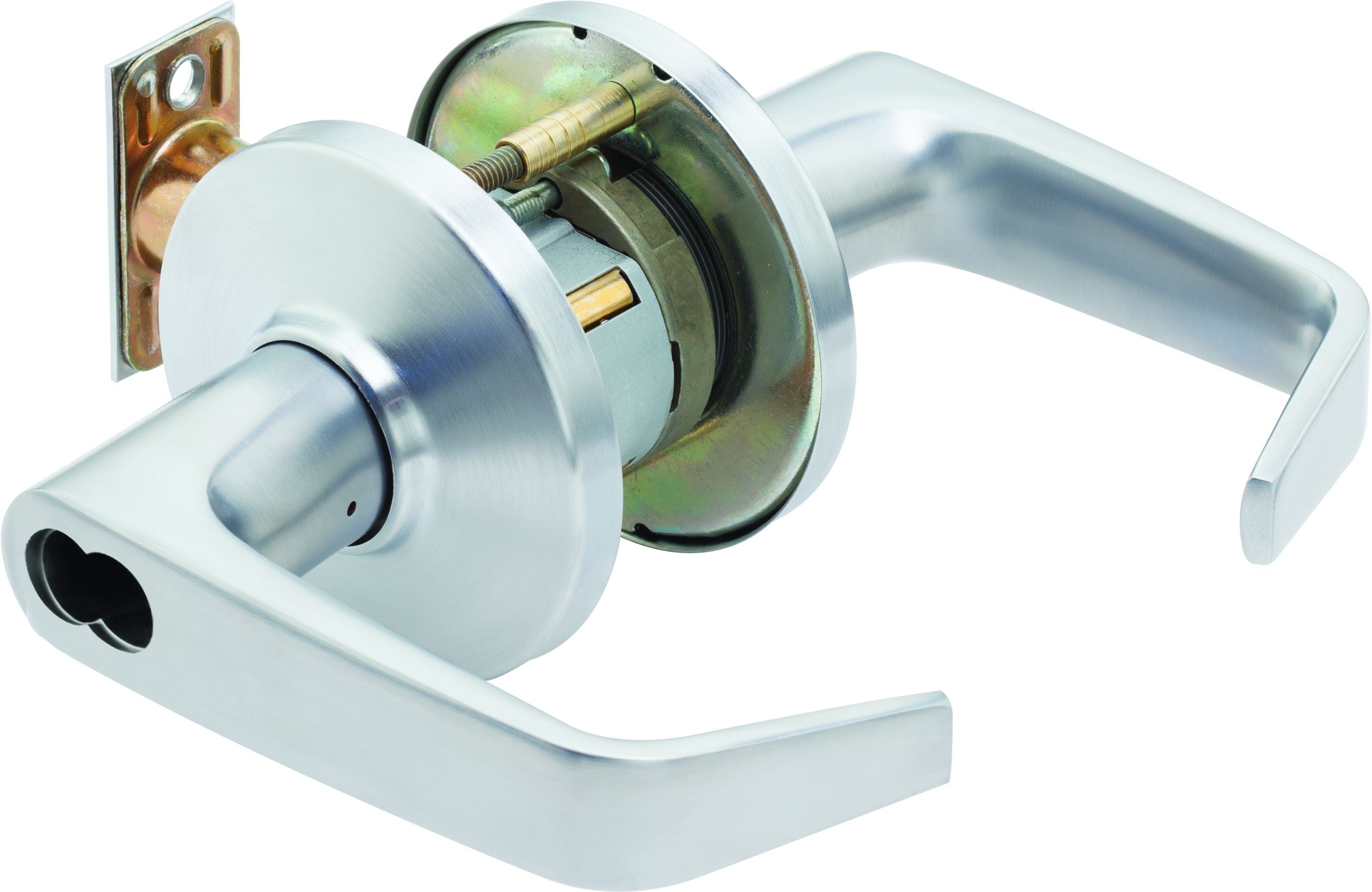

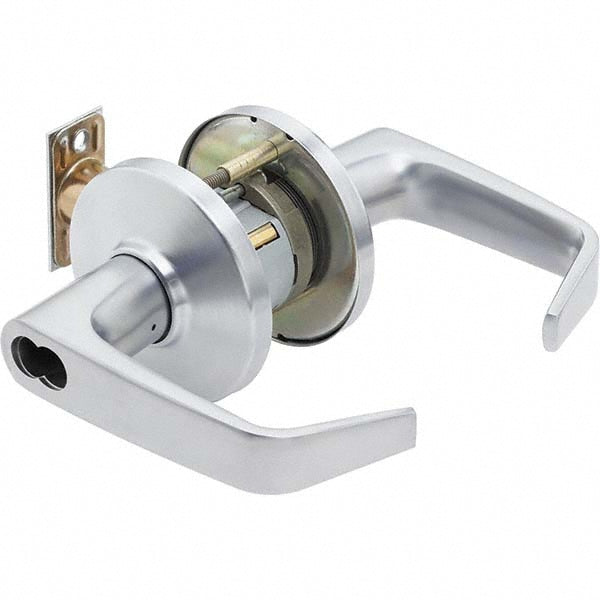

Best Access 9K37B15D-S3-626 9K Series Office Keyed Entry Door Lever Set with 15 inches Lever

Product Description

The Best Access 9K37B15D-S3-626 is a 9K Series office keyed entry door lever set. This lever features a fifteen inches lever, a D trim, S3 strike, and a backset of two and three-fourth inches, designed for use with SFIC cylinders. The outside lever locks with an inside button, while the inside lever remains unlocked. The lever can be operated by rotating the inside lever, the outside lever (when the push-button is out), or by turning the key in the outside lever.

• Meets BHMA Grade 1 certification standards.
• Made from durable materials.
• Reversible for use on left or right-hand doors.

Product Highlights

Durable construction and versatile design make this door lever suitable for commercial and office environments.

Product Information

Standard Information

• Backset: 2-3/4 inches
• Door Thickness: 1-3/4 inches to 2-1/4 inches

Technical Specifications

• Cross Bore: 2-1/8 inches
• Edge Bore: 1 inch
• Handing: Reversible Left or Right
• Handle Length: 5-3/8 inches
• Handle Projection: 2-3/4 inches
• Trim Width: 3-1/2 inches
• Trim Height: 3-1/2 inches
• Latch Faceplate: Square Corner
• Interchangeable Core Type: SFIC
• Material: Brass, Bronze, Zinc
• ANSI Grade: A156.2, Series 4000, Grade 1
• Function: Office
• Strike: S3 ANSI Strike
• Series: 9K Series
• Lockset Type: Office
• Cylinder Type: 7 Pin; For Best/Falcon I/C-Core
• Lockset Grade: Grade 1
• Fire Rating: Fire Rated
